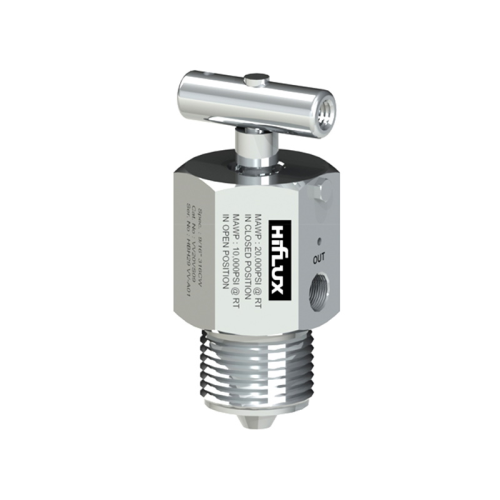

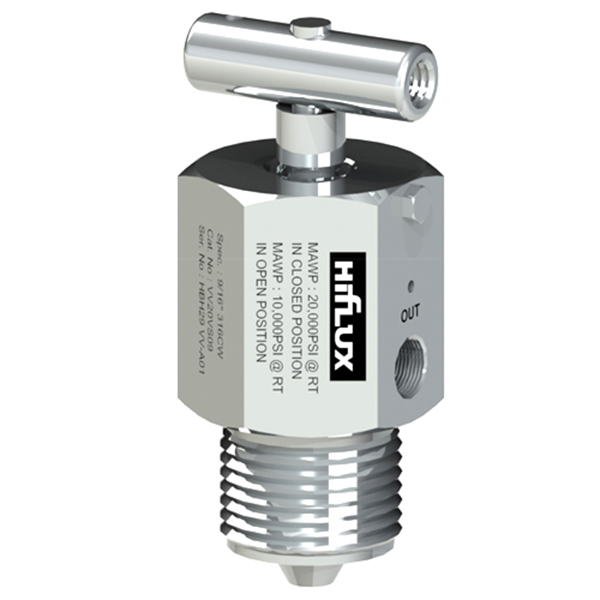

[HIFLUX] Bleed Valve - 20000, 30000 PSI

A bleed valve can be used before removing the instrument from the pressure line with the venting. It can be used for calibration instruments or sampling.

Application - Pressure bleed, Sampling small amount



* FEATURES


- One piece hex construction supply easy installation
- Max allowed working pressure: 30000 psig
- Vent port tapped for safe plumbing
- Easy operation with tee handle
- Metal to Metal sealing



* STRUCTURE




* SPECIFICATION



(*): The height when valve is fully closed

- As all sizes are for reference, they can be changed without any notification.
- Please contact us for details or send an online inquiry, we will give you a response as soon as possible.



* HIFLUX High Pressure Products

	High pressure needle valve			High pressure pipe needle valve
	High pressure check valve			High pressure ball valve
	High temperature valve			High pressure control valve
	Air operated valve			High pressure tube fitting
	High pressure tube			High pressure nipple
	Low pressure tube			High pressure gauge
	High pressure regulator			Back pressure regulator
	High pressure union adapter			General pressure regulator
	High pressure adapter			High pressure male adapter
	Tube support
	Safety Head			Rupture disc
	Tooling Set-Coning tool			Tooling Set-Reseating tool
	Tooling Set-Threading tool			Lok Type Fitting
	Lok Type Valve

* Ordering option


- As our products are divided into pressures of 5,500~150,000psi, body type and port size, you can use them according to the specifications which you want to use.
- Our products generally are produced with STS materials, but they can be manufactured with other materials on demand so that various fluids and gases can be used.
- Please inquire with us about special materials apart from the above-mentioned materials, such as STS316, HC-276, INC600, INC700, Ti and Ni.
