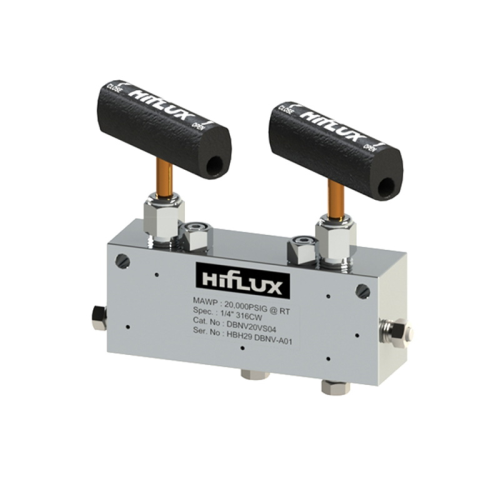

HIFLUX - Double Block and Bleed Valve 20,000 psi





Double block and bleed valve is installed gas or oil line and it is expeditious to check the leakage. If the leakage is occurred, shut-off the leakage line and help to maintenance easily. It also can be used to inject chemicals into the line or can be used for sampling process from the line.

Application - Pressure monitoring, Pressure Test, chemical injection, Sampling, Drain line isolation



* FEATURES

- Tube size : 1/4", 3/8”
- Prevents galling due to the no-rotation stem.
- Packing designed for reliable sealing.
- Metal to Metal sealing type
- A valve using stainless steel 316 cold material for excellent corrosion resistant
- Cone and thread connection to prevent gas or liquid leaking



* STRUCTURE






* SPECIFICATION


J: Hole Size, (*): The height when valve is fully closed


* HIFLUX High Pressure Products


	High pressure needle valve			High pressure pipe needle valve
	High pressure check valve			High pressure ball valve
	High temperature valve			High pressure control valve
	Air operated valve			High pressure tube fitting
	High pressure tube			High pressure nipple
	Low pressure tube			High pressure gauge
	High pressure regulator			Back pressure regulator
	High pressure union adapter			General pressure regulator
	High pressure adapter			High pressure male adapter
	Tube support
	Safety Head			Rupture disc
	Tooling Set-Coning tool			Tooling Set-Reseating tool
	Tooling Set-Threading tool			Lok Type Fitting
	Lok Type Valve

* Ordering option


- As our products are divided into pressures of 5,500~150,000psi, body type and port size, you can use them according to the specifications which you want to use.
- Our products generally are produced with STS materials, but they can be manufactured with other materials on demand so that various fluids and gases can be used.
- Please inquire with us about special materials apart from the above-mentioned materials, such as STS316, HC-276, INC600, INC700, Ti and Ni.
