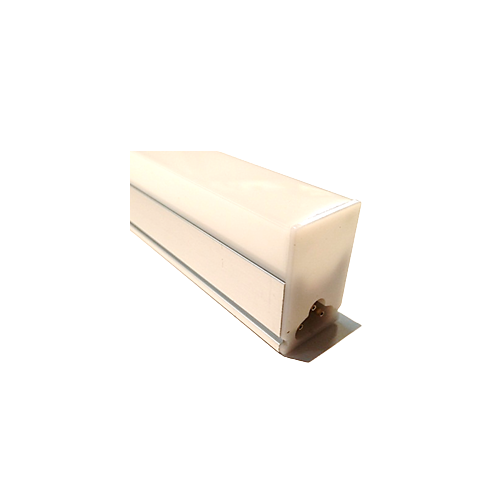

LED T5 for Phasecut Dimming
- Award
-
- Shipping
-
- Products Shipped From Incheon
- Payment
-
140+ Global Payments, trusted and secure payment provided by PayVerse.
Learn More
- Quantity
- MOQ : 100 ea
Detailed Description
[Product Description]
| DESCRIPTION | EL-T5-14T | EL-T5-21T | EL-T5-28T |
| Nominal Wattage | 14W | 21W | 28W |
| Nominal Voltage | AC200~240V | ||
| Nominal Current | 50mA | 75mA | 135mA |
| Power Factor | PF > 90% | ||
| Dimming Method | Phase Cut Dimming (Leading edge/Trailing edge) | ||
| Ambient Temperature | -20 ~ +40 ℃ | ||
| Luminous flux | 1400 lm | 1900 lm | 2500 lm |
| Luminous efficacy | 90 lm/W | ||
| Color Temperature | 3000K / 4000K / 5000K | ||
| CRI | Ra ≥ 80 | ||

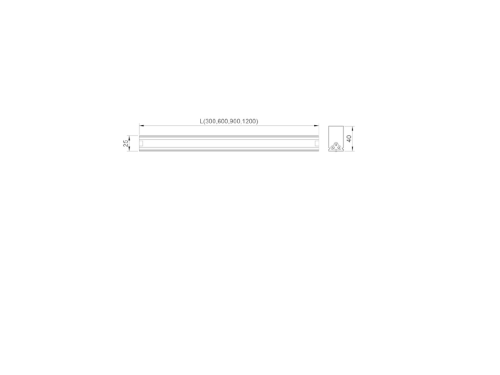

| Dimensions (mm) | 600 x 25 x 40 | 900 x 25 x 40 | 1200 x 25 x 40 |
| Finish | Body : Aluminum / Cover : Polycarbonate (PC) | ||
| Type of Connection | System connector : Socket | ||
| Protection | Indoor | ||
| MANUFACTURE | Elecs Korea ( Tel: 031.423.7822 / Fax: 031.423.7823 ) | ||
| NOTE |
| ||
◆Company introduction
ELECS KOREA concentrates on LED dimming applications. especially, Triac Main dimming parts. Thanks to a unique dimming solution (Patent-pending), smooth and dip dimming is realized. Our LED dimmable lamps are designed for retrofit replacement of traditional lamps and Main dimmable LED converters with a unique design can be used in LED lightings such as down-light, spot-light.
