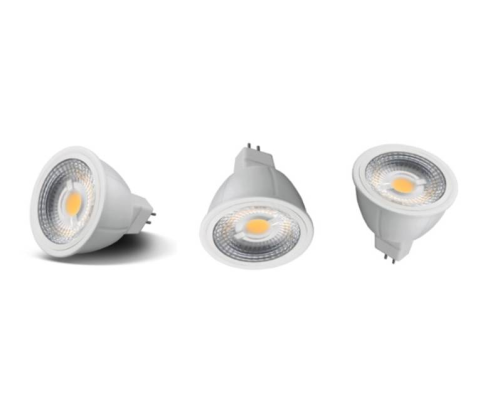

LED MR16 Lamp Dimmable
- Award
-
- Shipping
-
- Products Shipped From Incheon
- Payment
-
140+ Global Payments, trusted and secure payment provided by PayVerse.
Learn More
- Quantity
- MOQ : 100 ea
Detailed Description
[Product Description]
| DESCRIPTION | LED MR16 LAMP (Dimmable) |
| Nominal Wattage | 5.5W |
| Nominal Voltage | DC12V |
| Power Factor | PF > 90% |
| Dimming Method | Phase Cut Dimming (Leading edge/Trailing edge) / DMX512 / 0-10V |
| Nominal Luminous flux | 350 lm |
| Color Temperature | 2700K / 3000K / 5000K |
| CRI | Ra ≥ 80 |

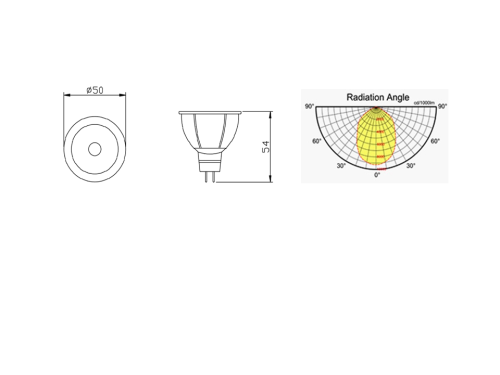

| Dimensions (mm) | H:54 X 50Ø |
| Cap Base | GU5.3 |
| Beam Angle | 25° / 38° |
| MANUFACTURE / SUPPLIER | Elecs Korea ( Tel: 031.423.7822 / Fax: 031.423.7823 ) |
| NOTE | Converter : EP_MR16T_DMX (DMX512 Dimming) EP_MR16T_10V (0-10V / 1-10V Dimming) EP_MR16T_20W (Phase-cut Dimming) |
◆Company introduction
ELECS KOREA concentrates on LED dimming applications. especially, Triac Main dimming parts. Thanks to a unique dimming solution (Patent-pending), smooth and dip dimming is realized. Our LED dimmable lamps are designed for retrofit replacement of traditional lamps and Main dimmable LED converters with a unique design can be used in LED lightings such as down-light, spot-light.
