Curved Beam Trolley
- Certification
-
- Award
-
- Shipping
-
- Modes of Transport EXW,FOB
- Products Shipped From Busan
- Payment
-
140+ Global Payments, trusted and secure payment provided by PayVerse.
Learn More
- Quantity
- MOQ : 1 Sets
Detailed Description
Plain Trolleys cannot travel on a curved beam track; therefore a Curved Beam
Trolley has to be used. Curved Beam Trolley are designed to fit beams with curved tracks with a minimum radius curve of 600 mm.
SPECIFICATIONS
| MODEL | CAPACITY (TON) | I-BEAM FLANGE WIDTH (mm) | MIN. CURVE RADIUS (mm) | NET WEIGHT (kgf) |
| DBPT-010 | 1.0 | 75 ~ 125 | 600 .0 | 20.0 |
| DBPT-020 | 2.0 | 100 ~ 150 | 700 .0 | 32.0 |
| DBPT-030 | 3.0 | 100 ~ 150 | 800 .0 | 50.0 |
* Contact us, if larger I-BEAM FLANGE WIDTH is used.
DIMENSIONS
| MODEL | CAPACITY(TON) | DIMENSIONS (mm) | ||||||||
| I-BEAM FLANGE WIDTH | H (Min) | L | H1 | W | C | D | T | T1 | ||
| DBPT-010 | 1.0 | 75.0 | 122.0 | 456.0 | 237.0 | 161.0 | 98.0 | 30.0 | 18.0 | 10.0 |
| DBPT-020 | 2.0 | 100.0 | 168.0 | 486.0 | 293.0 | 194.0 | 102.0 | 42.0 | 24.0 | 15.0 |
| DBPT-030 | 3.0 | 100.0 | 184.0 | 606.0 | 343.0 | 210.0 | 134.0 | 45.0 | 26.0 | 18.0 |
* “W” value is based on I-BEAM FLANGE WIDTH.
* H (Min) value can differ ±5% depending on selected beam’s thickness.

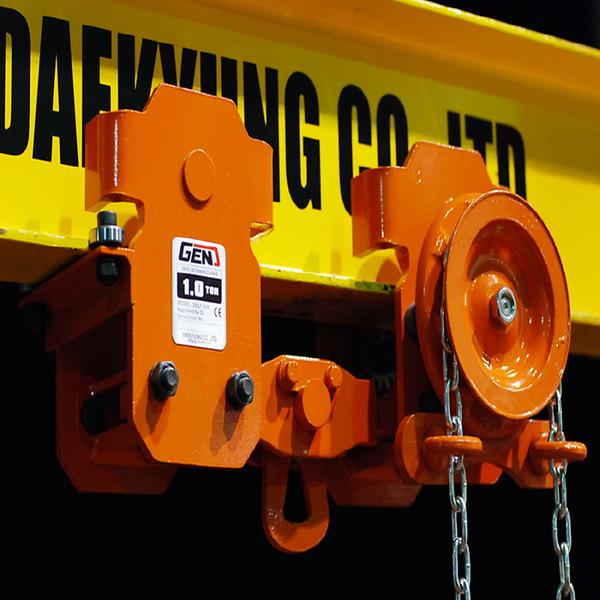

Geared Trolleys cannot travel on a curved beam track; therefore a Curved Beam Geared Trolley has to be used.
Curved Beam Geared Trolley are designed to fit beams with curved tracks with a minimum radius curve of 600 mm.
Hand chain length has to be notified when ordering, since there is no standard size for this chain.
Keep in mind that the chain should be easily accessible for the operator but not too long in order to prevent dragging on the ground.
