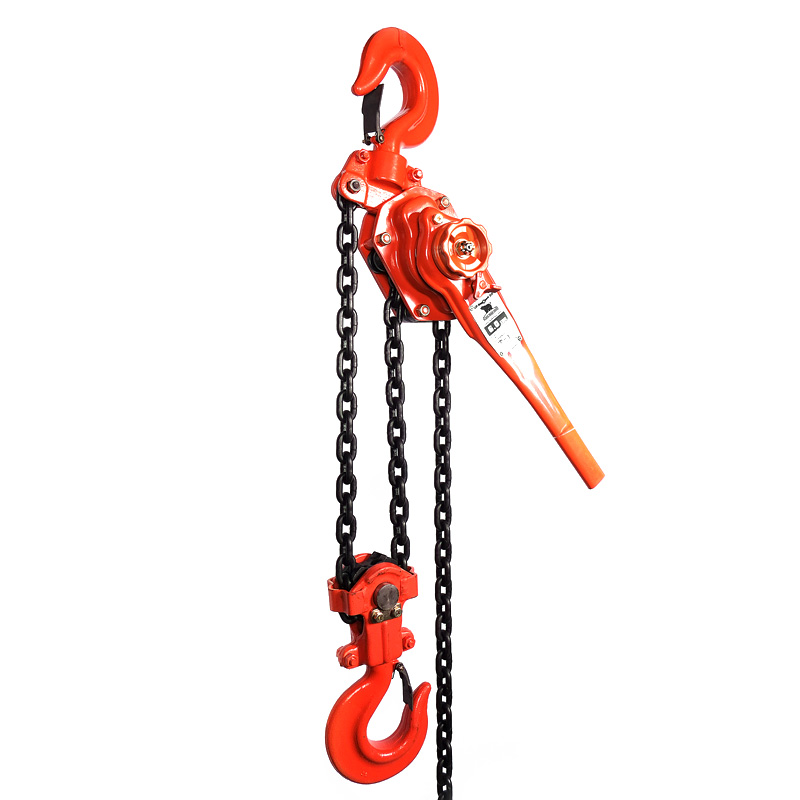

DESCRIPTION OF PRODUCTS

Lever Hoist is used to fix loads. For example, fixing goods on the truck or used as a JIG for welding (by pulling the thick plate).

Like Chain Block, Lever Block can be used for lifting, but it would lead to an ineffective work.

Only for the purpose of fixing usage is recommended.

HOW TO OPERATE

At the middle of the lever hoist, there is a lever switch for UP, NEUTRAL and DOWN.

When the lever switch is on up and down, the hook will fall.

When the lever switch is on neutral and the Free Knob is pulled upward, the chain length can be easily adjusted without moving the lever.

CAUTIONS AT USE

Lever Hoist is optimized to bear vertical loads. When fixing or pulling a load, upper hook, bottom

hook and load chain should be aligned in vertical position in order to bear the safety load.
According to Occupation Safety and Health Acts, hook and load chain of lever Hoist should be replaced

if the hook throat opening is stretched by more than 10% or if load chain is stretched by more than 5%.

Load chain, hook and chain pin which are directly bearing the load should be checked regularly

since stretched length is difficult to measure through visual inspection.

Lever Hoists are devices that are easily exposed to risk of overload, be careful when using such devices.

PLEASE SPECIFY FOR ORDER

• CAPACITY (ex. 1.5TON)
• Whether CLASS CERT is required or not. (3 to 5 months is required for submission)
• LOAD CHAIN LENGTH (ex. Std 1.5m)
