Detailed Description

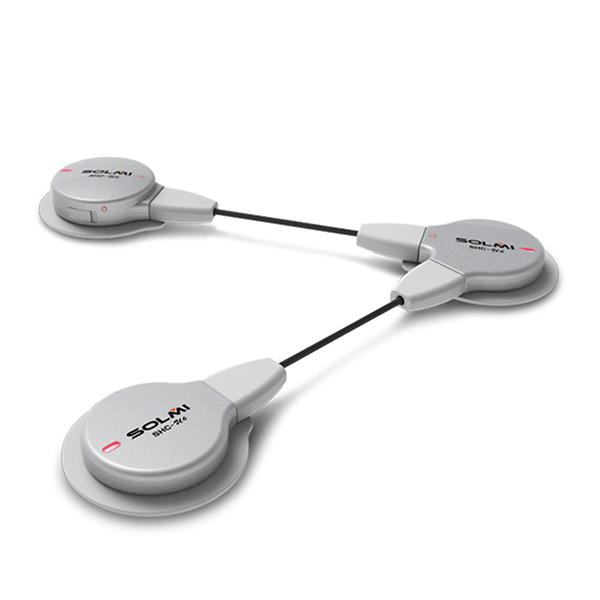

3-Lead ECG Monitor (SHC-U6)
Description
Refit Patch, SHC-U6, is one such innovative product which exemplifies portability and accurate ECG measurement.
This device is developed for various purposes like measuringECG, heartrate, HRV, stress level, step count, calories burnt, etc.
Features
- Comfortable and flexible mobile healthcare device to monitor your physical signals and activities.
- Small and light-weight (weight: 20g, D: 35mm, H: 11.5mm).
- Rechargeable battery (capacity: 180mAh, recharge time: 30 minutes).
- Continuous operation for 4/8 hours.
- Bluetooth wireless communication.
- Free downloadable mobile app (Happ+) from Google Play store.

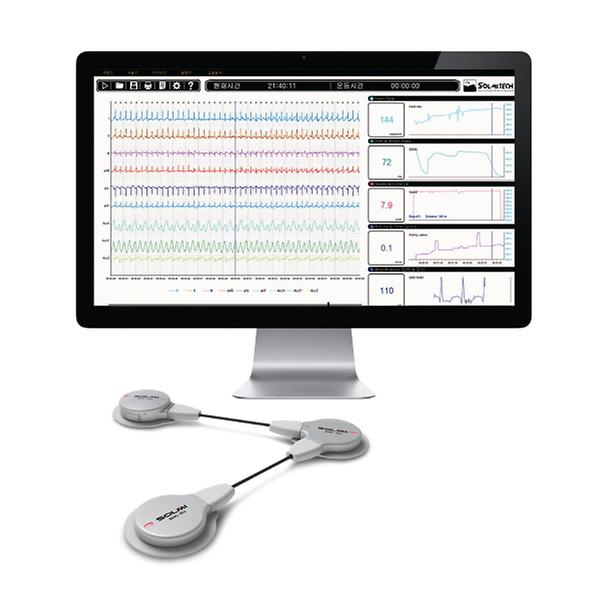

- Providing dedicated PC-based software program (SMW-V1.x).
Specification
|
Device |
Size |
Power supply module W : 35mm, H : 10mm, 10g |
|
Main controller module W : 36mm, H : 7mm, 5g |
||
|
Wireless communication module W : 35mm, H : 7mm, 5g |
||
|
Cable |
67mm, 4g |
|
|
Disposable electrodes |
Ø 43mm, 1g |
|
|
Color |
White / Silver / Blue / Purple |
|
|
Power |
Rated voltage |
3.7VDC |
|
Power consumption |
50mW (Data transmission) |
|
|
Battery |
Lithium-Polymer 3.7VDC, 180mAh (Up to 4 hours of use / 8 hours of use) |
|
|
Charging time |
Approx. 30 minutes / 60 minutes |
|
|
Option |
Extra capacity battery for power module (360mAh), extends up to 8 hours |
|
|
Communication |
Communication type |
Bluetooth (Class II), Distance: within 10m |
|
Communication speed |
115.2Kbps |
|
|
Components |

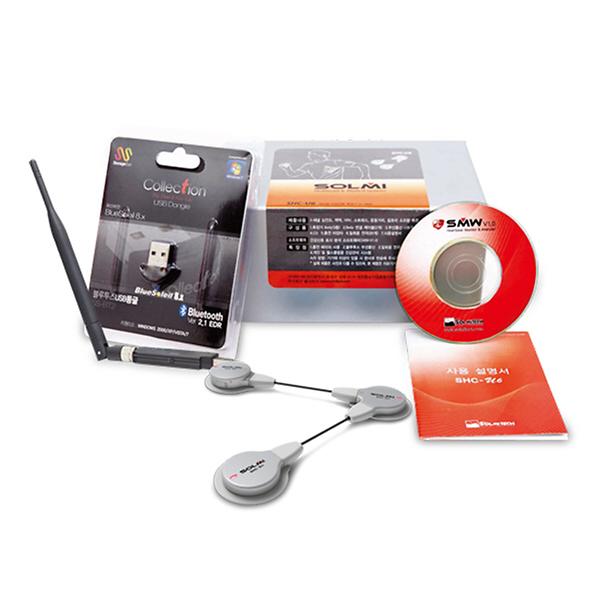

3 Modules, 2 Connection cable, 1 Wireless dongle, 1 S/W CD, 20 Disposable electrodes , 1 User guide |
|
|
Manufacturer / Country |
Solmitech Co., Ltd. / Republic of Korea |
|
