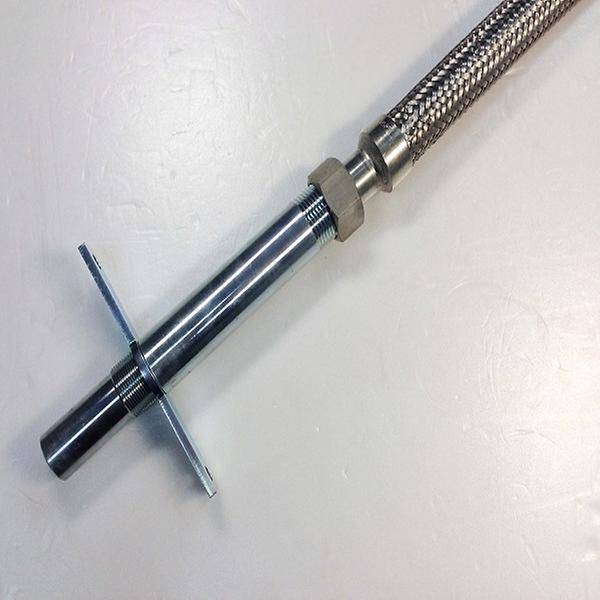

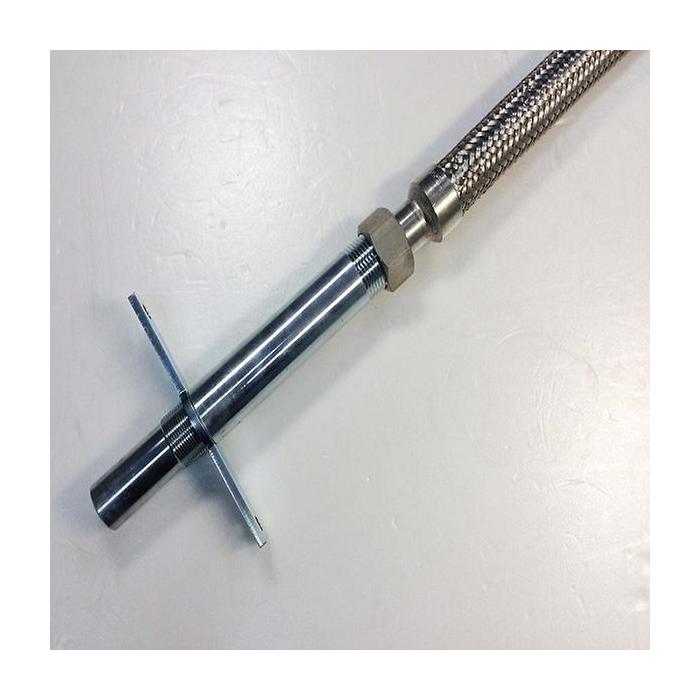

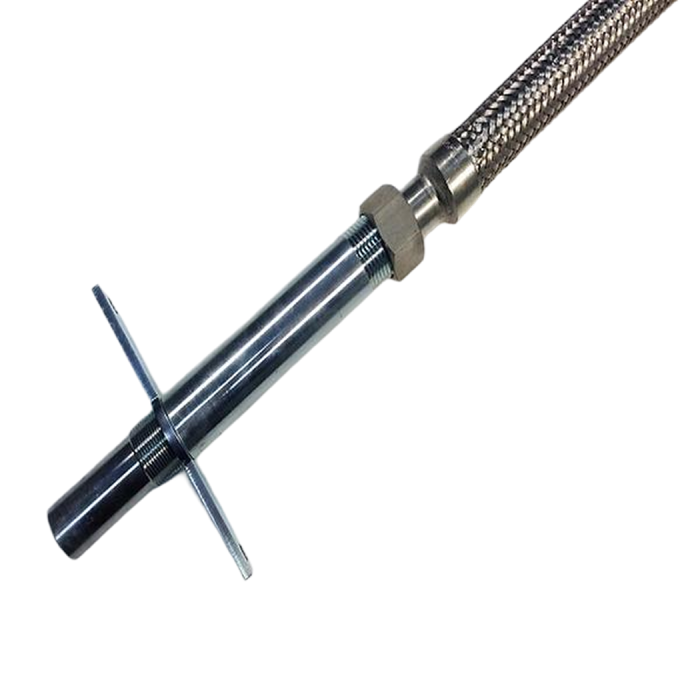

CLEANFLEX 32, SEUNG JIN Flexible Sprinkler Hose, is suitable only for providing a connection between water supply piping to an automatic sprinkler in the ceiling area of a clean room. It offers the advantage of providing greater flexibility in the location of automatic sprinkler than conventional rigid piping.

CLEANFLEX 32 provides a unique sprinkler drop assembly comprised of the following components:

• Stainless Steel Corrugated Hose With Stainless Steel Wire Mesh(Braid)
• Welded(or Threaded) Stainless Steel Nipple with Male Thread at the Inlet
• Welded(or Threaded) Stainless Steel Mould Bar with 1/2 in or 3/4 in. NPT or BSPT female thread at the Outlet
• Attached Stainless Steel Collar to the outlet Mould Bar with two steel set screws for attaching the product to clean room ceiling bracket.


Product Code : CLEANFLEX SJ32B-TXXX / CLEANFLEX SJ32B-WXXX
CLEANFLEX SJ32B-WXXX-AU1 / CLEANFLEX SJ32B-WXXX-AU2

CLEANFLEX
SJ : Sprinkler Joint
32 : 32A(Ø31.8)
B : Braided Type
T : Threaded Type
W : Welded Type
BU : Bushing
AU : Aluminum Unit
XXX : Length

Product : Flexible Sprinkler Hose With Fittings
Hose Diameter : 31.8mm
Max. Working Pressure : 175psi (Braided)
Max. Ambient Temperature : 225°F
End Connections : 1/2", 3/4" Outlet Reducer For Sprinkler(NPT/BSPT)
1" Inlet Nipple For Pipe(Weld/Thread(NPT/BSPT))
Material : Stainless Steel 304
