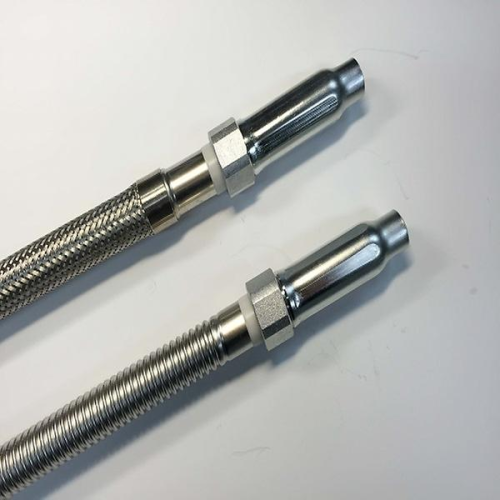

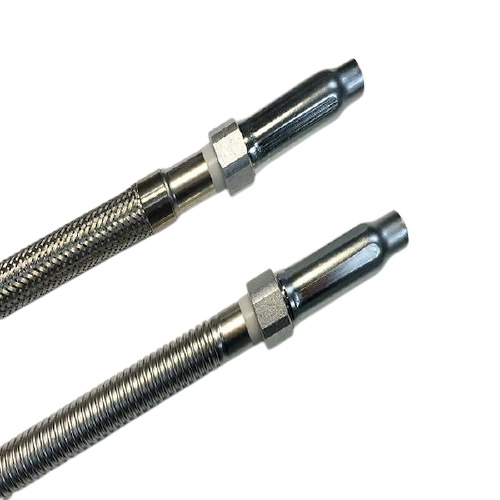

FLEXONE 29, SEUNG JIN Flexible Sprinkler Hose, is designed to be used in wet sprinkler systems between the branchline and sprinkler when installed in accordance with NFPA 13, 13D, and 13R.

FLEXONE 29 provides a unique sprinkler drop assembly comprised of the following components:

• Stainless Steel Flexible Hose with Two Slip Nuts
• Branchline Inlet Nipple
• Straight Sprinkler Reducer
• Reducer Bracket, Bar Fixing Clamps, and Support Bar

Product Code : FLEXONE SJ29N-TXXX / FLEXONE SJ29B-TXXX
FLEXONE SJ29N-WXXX / FLEXONE SJ29B-WXXX

SJ : Sprinkler Joint
29 : Hose Nominal Diameter(Ø28.8)
N / B : N - Unbraided Type / B - Braided Type
T / W : T - Threaded Type / W - Welded Type
XXX : Length


Product : Flexible Sprinkler Hose With Fittings
Hose Diameter : 28.8mm
Max. Working Pressure : 175psi (Unbraided) / 200psi(Braided)
Max. Ambient Temperature : 225°F
End Connections : 1/2”, 3/4” Outlet Reducer For Sprinkler(NPT/BSPT)
1” Inlet Nipple For Pipe(NPT/BSPT)
Material : Stainless Steel 304
