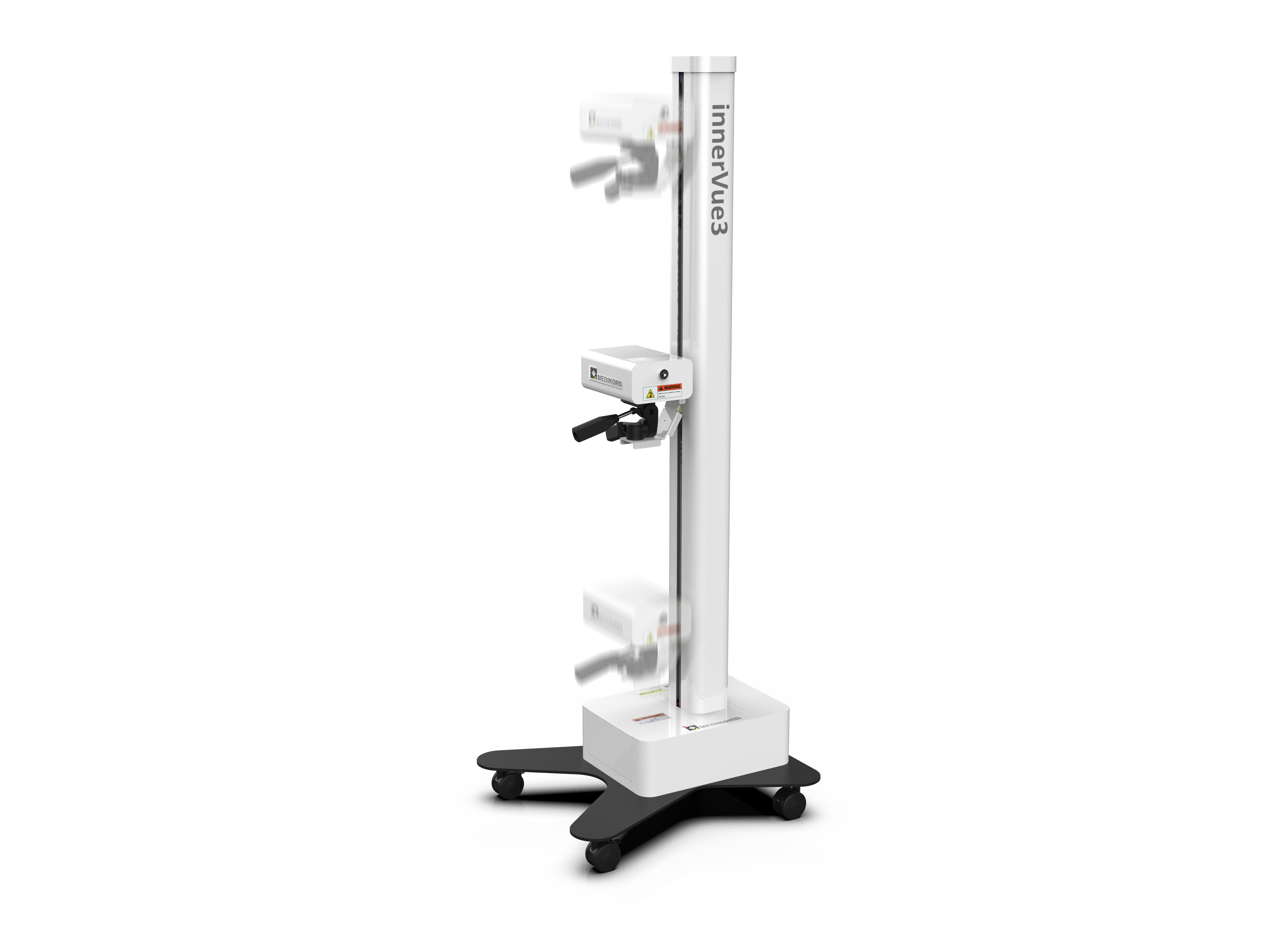

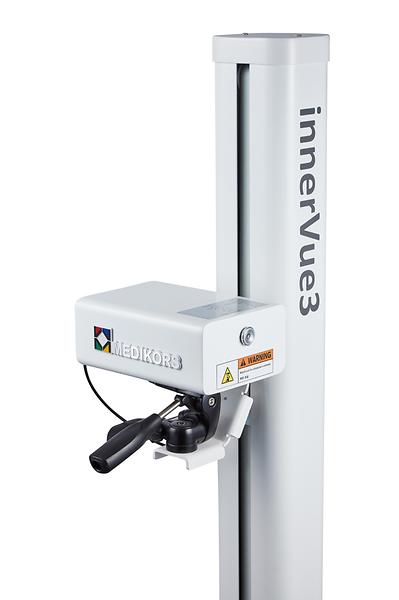

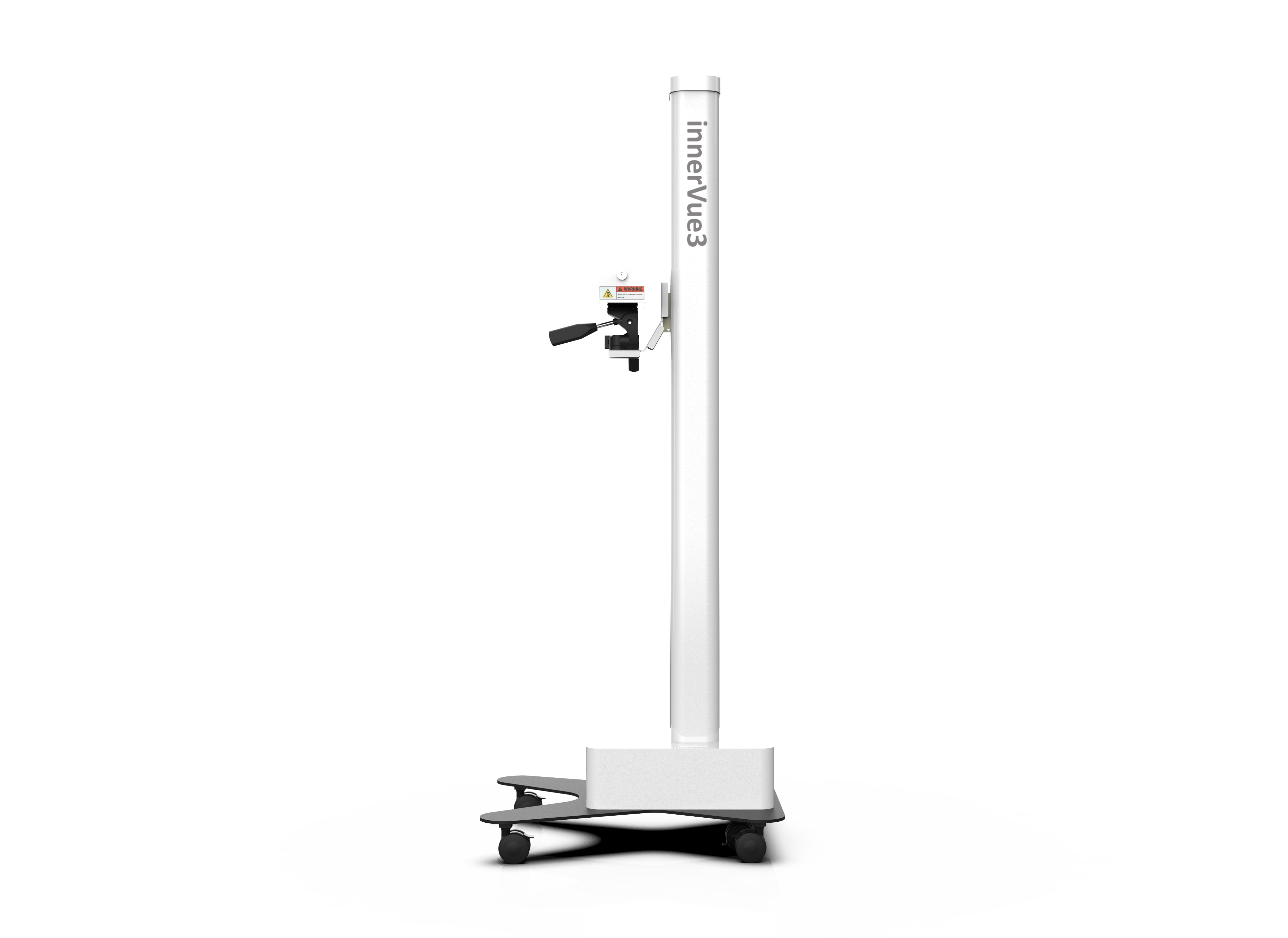

innerVue3

Digital Infrared Thermal Imaging System

Medical Digital Infrared Thermal Imaging system is a non-invasive adjunctive diagnostic technique that allows the examiner to visualize and quantify changes in skin surface temperature.

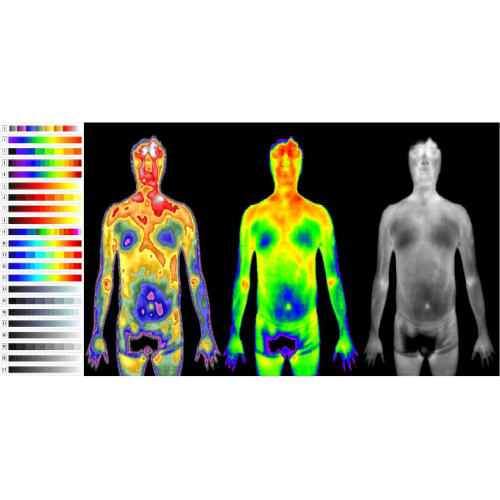

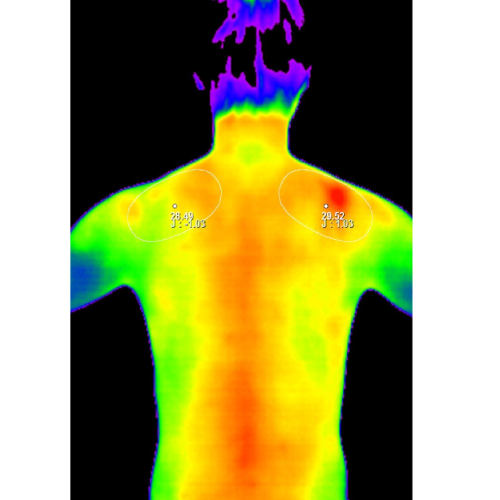

An infrared scanning device is used to convert infrared radiation emitted from the skin surface into electrical impulses that are visualized in color on a monitor. This visual image graphically maps the body temperature and is referred to as a thermogram. The spectrum of colors indicates an increase or decrease in the amount of infrared radiation being emitted from the body surface. Since there is a high degree of thermal symmetry in the normal body, subtle abnormal temperature asymmetry's can be easily identified.

innerVue3 is a non-invasive screening method that is completely pain-free and radiation free!

Unlike most diagnostic modalities innerVue3 is non-invasive. It is a very sensitive and reliable means of graphically mapping and displaying skin surface temperature.

innerVue3 which is harmless system can be applied to all patients even children, pregnant women, and men who has adverse reaction to contrast medium.  With innerVue3 you can diagnosis, evaluate, monitor and document a large number of injuries and conditions, including soft tissue injuries and sensory/autonomic nerve fibre dysfunction.

*Feature

• innverVue3 can graphically display the very subjective feeling of pain by objectively displaying the changes in skin surface temperature that accompany pain states.

• innverVue3  can  define the extent of a lesion of which a diagnosis has previously been made.

• innverVue3  can  detect early lesions before they are clinically evident.

• innverVue3  can  monitor the healing process before the patient is returned to work or training

• innverVue3  can  offer results that are totally objective and show excellent correlation with other diagnostic tests.

• innverVue3  can  offer considerable financial savings by avoiding the need for more expensive investigations as X-ray, C.T. Ultrasound, M.R.I. etc.,

*Specification

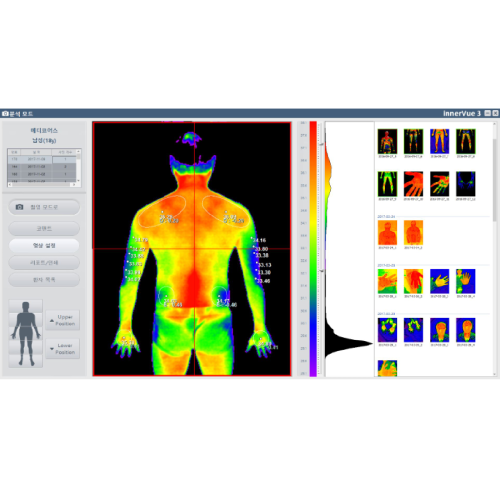

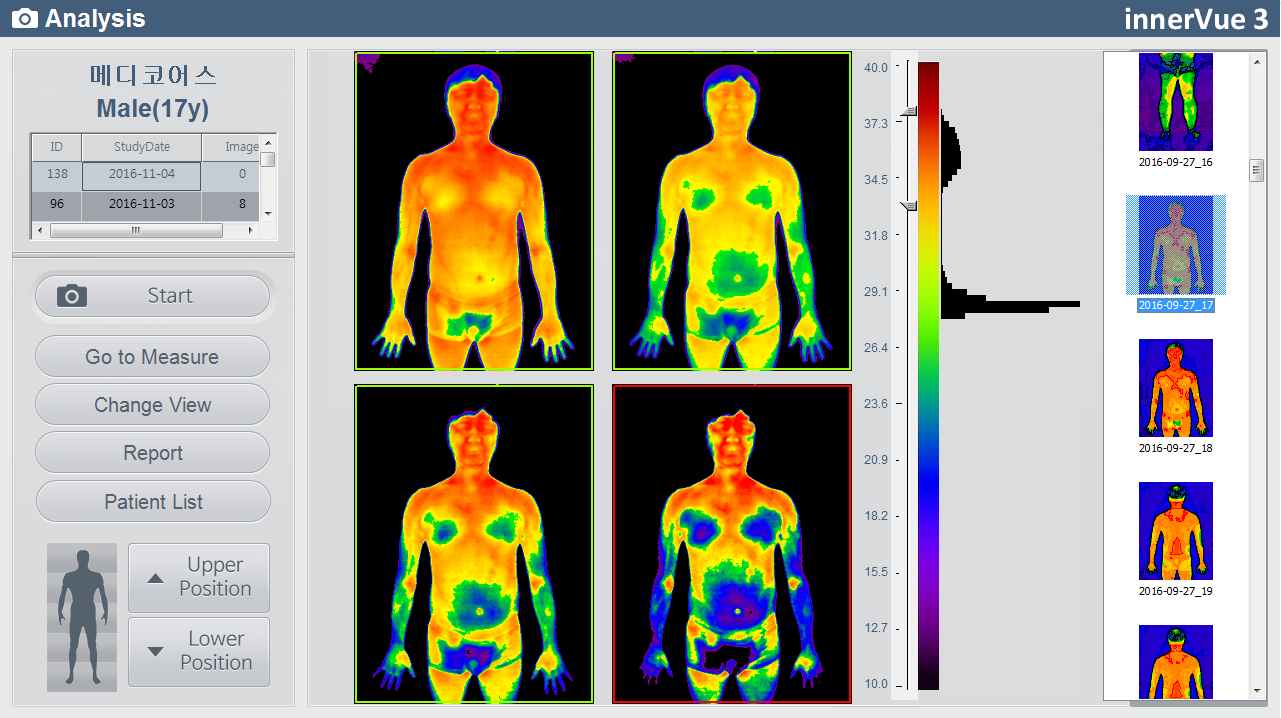

√ Displays skin temperature with Real-time recording mode

√ Provides Full Digital Infrared Image

√ Pan, tilt, up/down over 35˚ degree

√ EMR / PACS

√ Easy-to-use mobile by minimizing components

*Application

- General Health

Inflammatory conditions, Extracranial cerebral and facial vascular disease, Neoplastic conditions, and peripheral vascular disease.

- Breast Health

Adjunctive screening for the detection of breast cancer and metabolic conditions.

- Musculoskeletal & Sports Medicine

Musculoskeletaldisorder including inflammatory conditions.

- Neurological Medicine

Neurological conditions including pain

- Dermatology Medicine

Neoplastic conditions.

- Dental

Inflammatory conditions

innerVue3 is a monitor of thermal abnormalities present in a number of diseases and physical injuries. It can be used as an aid for diagnosis and prognosis, as well as therapy follow up and rehabilitation monitoring, within clinical fields that include Rheumatology, neurology, physiotherapy, sports medicine, oncology, pediatrics, orthopedics and many others. Especially with innervue3 clinician can recognize potential problem areas in the breast tissue years earlier than a mammogram alone. Whereas mammography is a test of anatomy looking for actual masse, thermography is a test of physiology and looks for functional changes in the breast tissue which may indicate problem areas before mass begins to form.
