InAlyzer is..

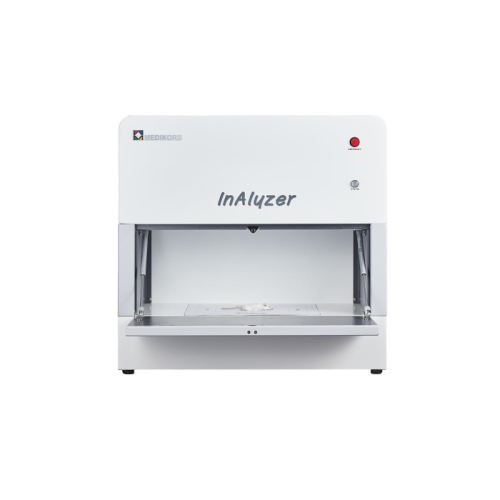

DXA (Dual Energy X-ray Absorptiometry) Body Composition Analyzer for lab animals

Provides BMD and Body Composition (BMC, FAT, LEAN) in units of 0.001g with measurement error range of 1%.

1. Analysis of various size of lab animal

 It has a wide scanning area (basic: 140mm x 210mm, option: 210 mm x 315 mm) from small animals as mice, lemming, and rat (weight 10~50g) to middle animals as dog, cat, rabbit, and guinea pig in analyzing BMD and BMC.

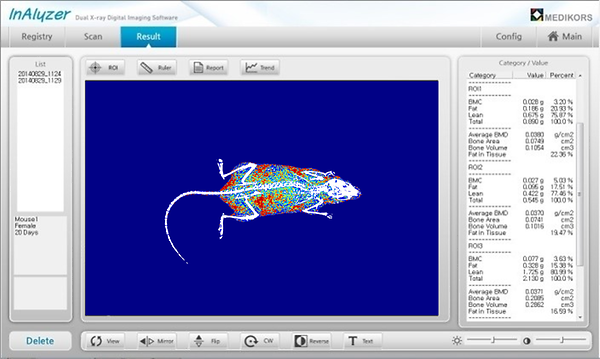

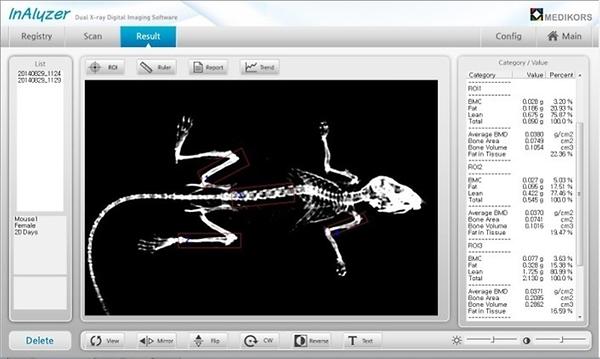

2. Providing ROI(Region of Interest) of BMD and Body Composition

 It provides accurate Total Body results and each ROI of BMD and Body Composition as a spine, femur, and  humerus. (Selecting maximum 30 ROI at once)

3. Optional Mode and Time Scanning

 It offers three modes measurement : Once measuring(Quick), Three times measuring(Optimum), Five times measuring(Accuracy). Quick mode takes totally less a minute with less 30 seconds of X-ray operation. (Optimum mode: 3 mins, Accuracy mode: 5mins)

4. Serial assessment of lab animal

 With  a simple anesthesia, Serial assessment of laboratory animal (Mouse, Rat, etc.) in a period of day, week, and month is possible without dissection.

5. Measurement Error range of 1%

 (Error of Precision & Error of Accuracy < 1%, Standard of Bone: static condition)

6. Radiation FREE

 Designed with lead can block off the radiation effectively that makes researcher be safe.

It requires only a simple registration without any specific permit.

7. Simply save as a file (Excel, Tiff, etc.)

 It offers  results of analysis as a file (Excel, Tiff, etc.) which is very convenient to make a report or thesis by organizing and editing the result of study.

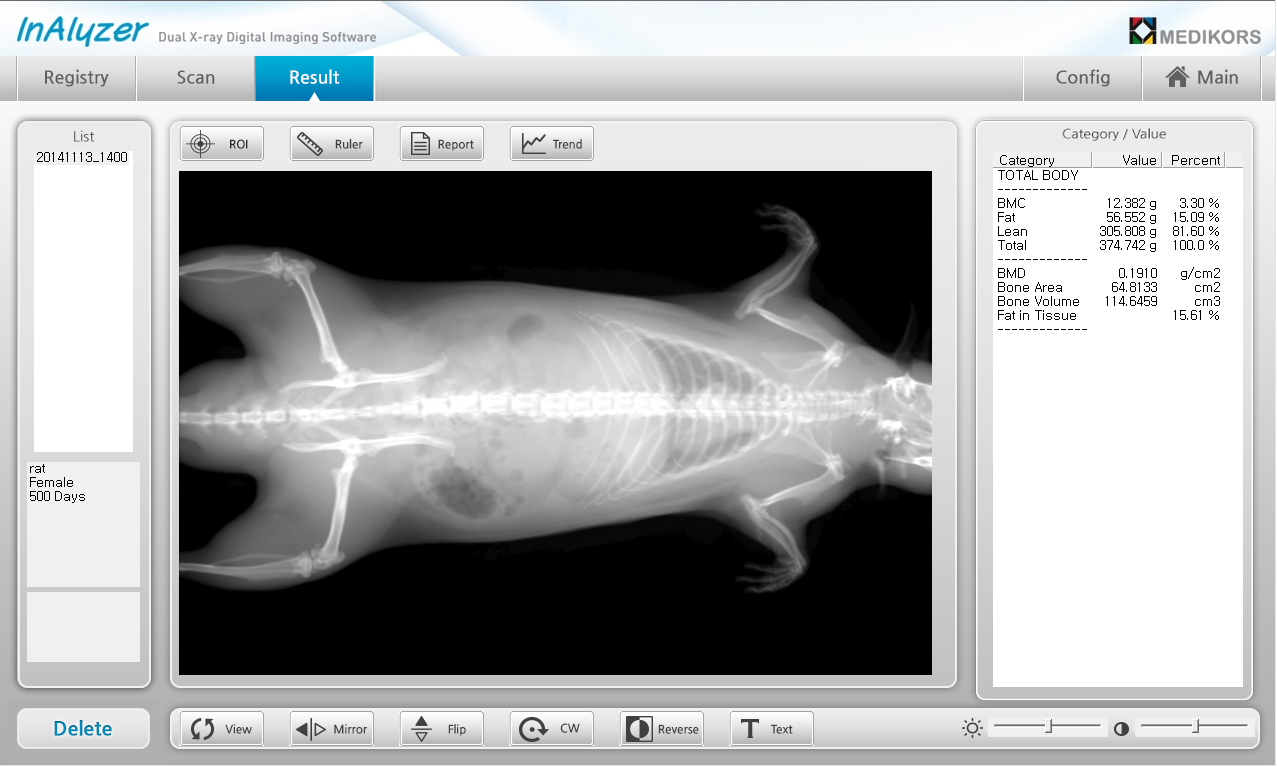

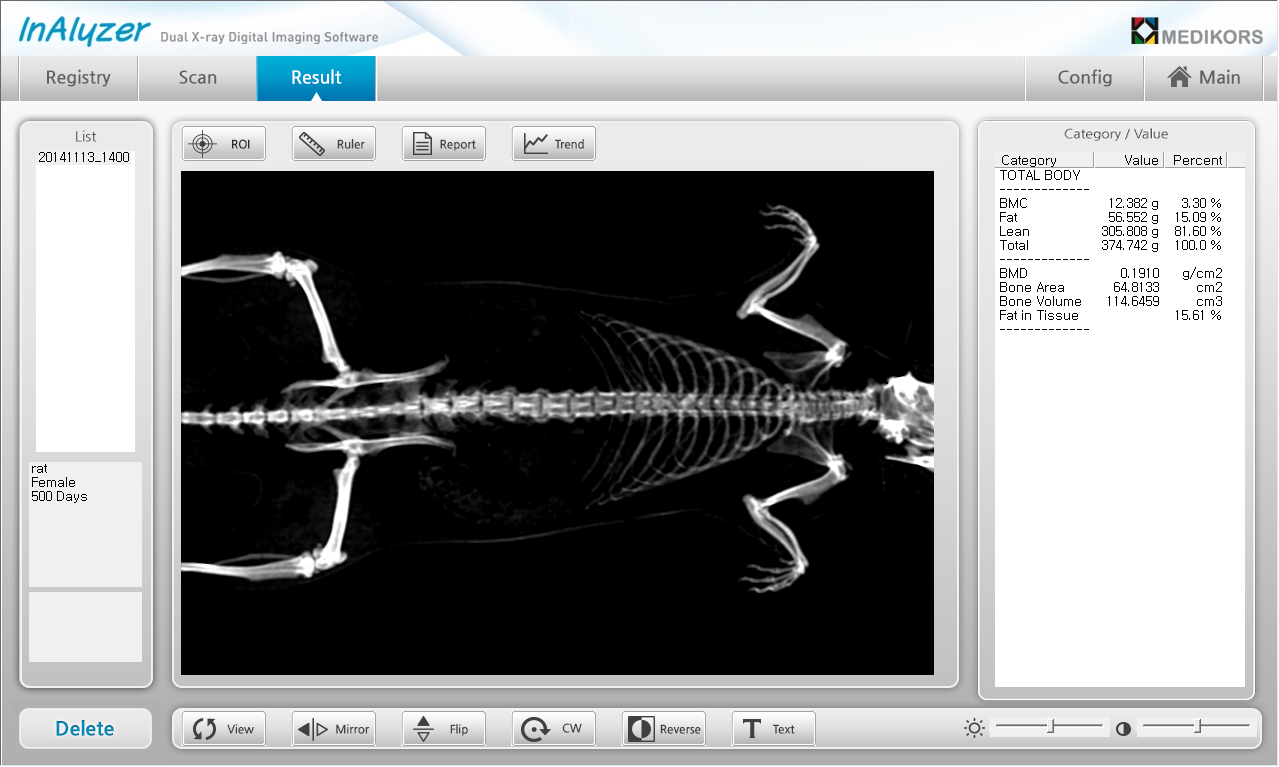

8. High resolution graphic

 It offers  High resolution graphic up to 5.0LP/mm (superior to 3.5LP/mm of DR) with a linear detector (54um) which offers an accurate and high resolution graphic results.

** Supplying Parameter**

** Result value of Analysis**
