<The features of AT-TH series machine>

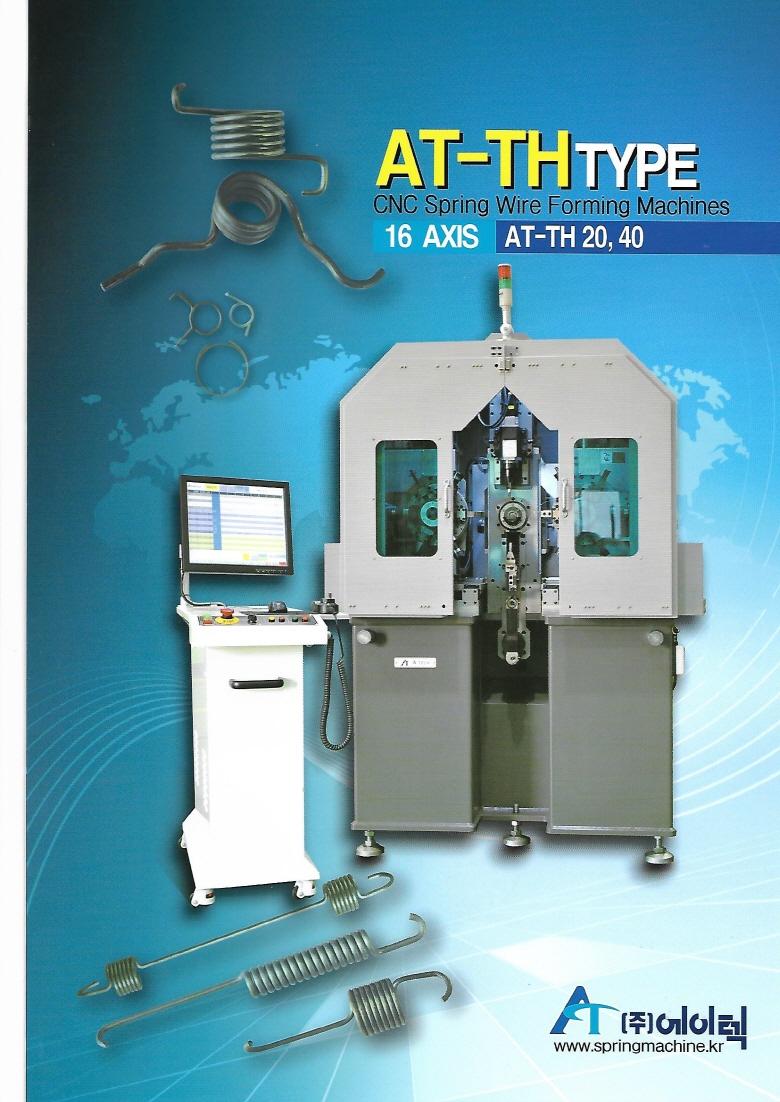

AT-TH 20, 40 series has designed as a precise and multipurpose spring forming machine using high-speed servo motor, high-accuracy and windows-XP computer program.

- Attaching tool: All position of tools can be adjusted by program, no need to adjust its position manually.

- Easy program: Easy program and multi-axis camless operation so that the operator can seve set-up time.

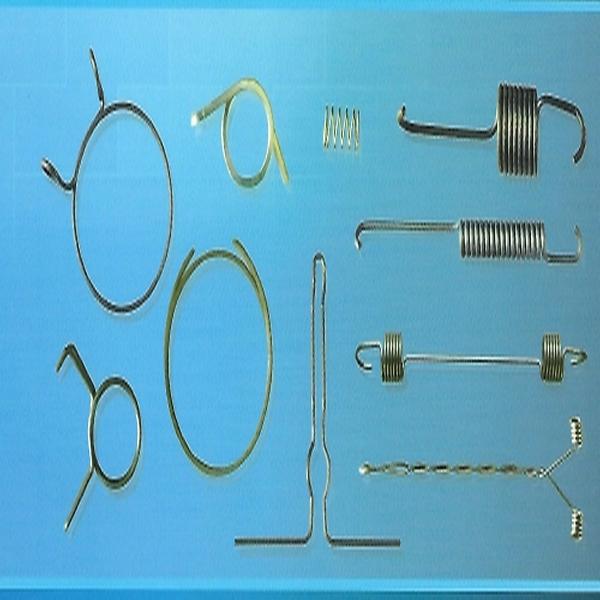

- Various producing: Without 2nd hook operating unit, It can produce various spring and wire forming.

- Auto mode: AT-TH series edits the data of the program and continuing to the next block at the MPG AUTO MODE.

- Convenience: Great function to operate and it can set-up any kinds of spring forming.

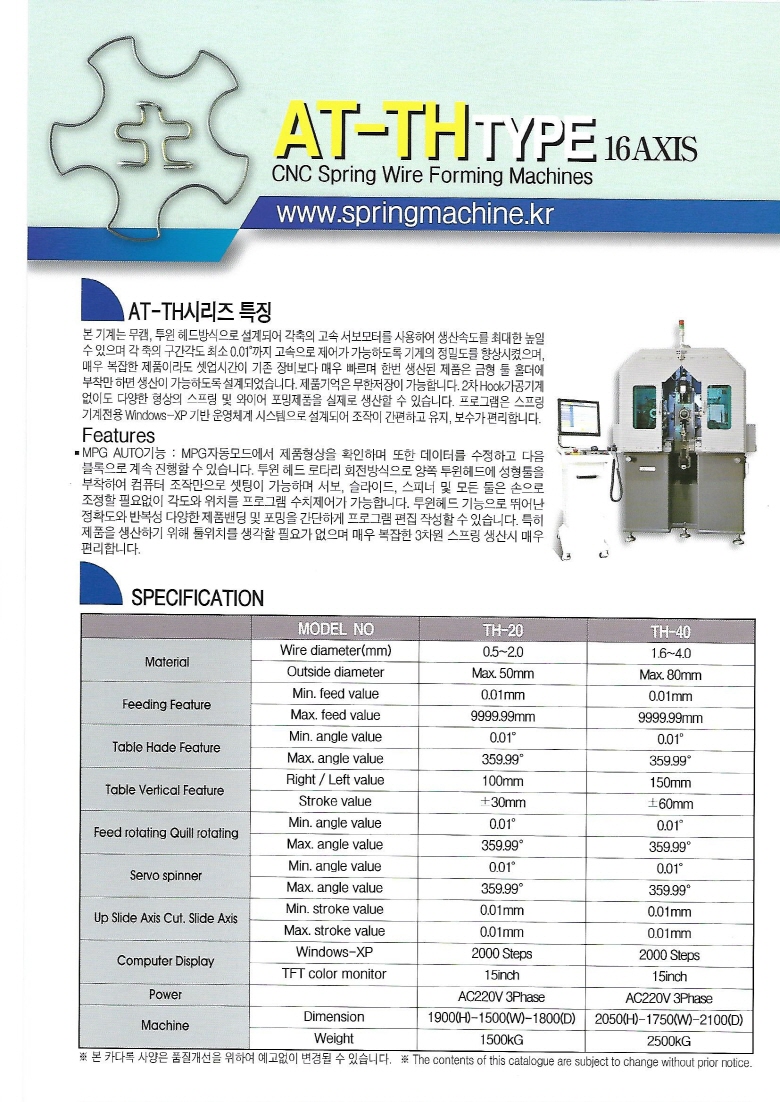

• Material: Wire diameter(mm) 0.5~2.0 / Outside diameter Max. 50mm
• Feeding feature: Min. feed value 0.01mm / Max. feed value: 9999.99mm
• Table hade feature: Min. angle value 0.01˚ / Max. angle value: 359.99˚
• Table vertical feature: Right/Left value 100mm / Stroke value: ±30mm
• Feed rotating quill rotating: Min. angle value 0.01˚ / Max. angle value 359.99˚
• Servo spinner: Min. angle value 0.01˚ / Max. angle value 359.99˚
• Up slide axis cut. slide axis: Min. stroke value 0.01mm / Max. stroke value 0.01mm
• Computer display: Windows-XP 2000steps / TFT color monitor 15inch
• Power: AC220V 3Phase
• Machine: Dimension 1900(H)-1500(W)-1800(D) / Weight: 1500KG
