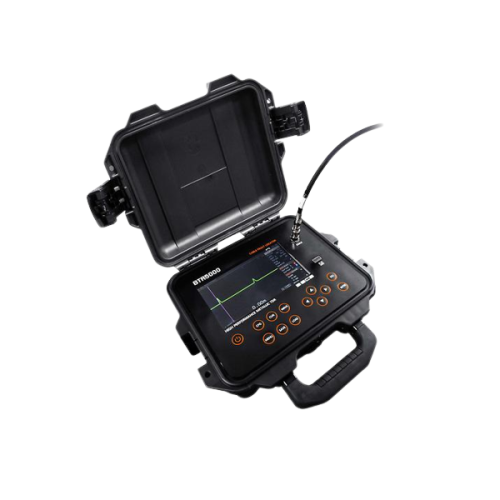

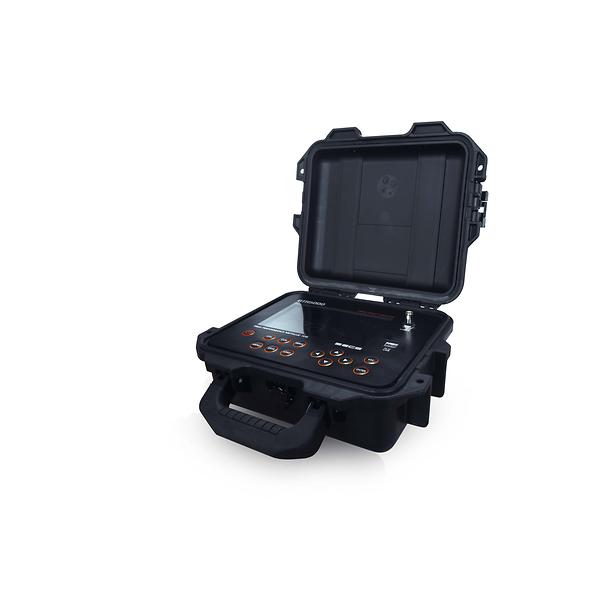

Our all new graphic type TDR(Model No.:BTR5000) is a high-end TDR instrument designed to meet today's most demanding network cabling problems. Advancing beyond the numeric readout, the graphic TDR(Model No.:BTR5000) displays the actual waveform or event of the cable.

BTR5000 is not only designed for communication, but also power, transportation, factory and construction as well. Usually TDR was known as telecommunication instrument, but it might cover wide range of industry.

This product was developed by filed condition. Field technicians need quick and clear waveform of test cable. We tried to follow sound of field.

Now we introduce our all new graphic TDR(Model No.:BTR5000) with variable way of application.

Key feature : Superb resolution / Remarkable accuracy / Enormous distance

- Range : 50cm~20km

- 800*480 TFT Color LCD

- Min.Pulse : 3ns

- Accuracy : ± 0.1 m ± 0.1 % (for coaxial cables)

- Resolution : 2.5cm

- long last built in battery

- Total USB port : communication & recharge

Application

- Power/Electric line

- Telecommunication

- Production line

- Transportation : Automobile / Train / ETC

- Construction
