Detailed Description
Nowadays there are several needs for cable measurement at many ways in industrial territory.

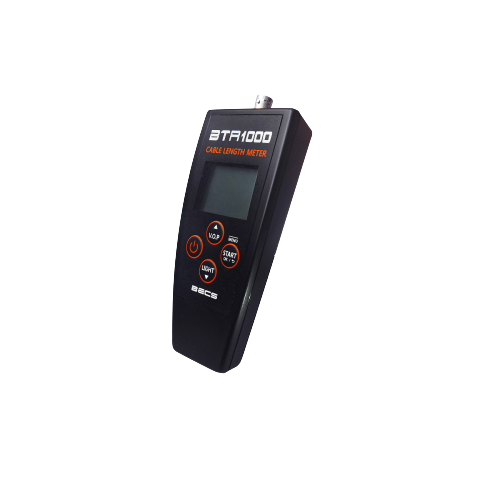

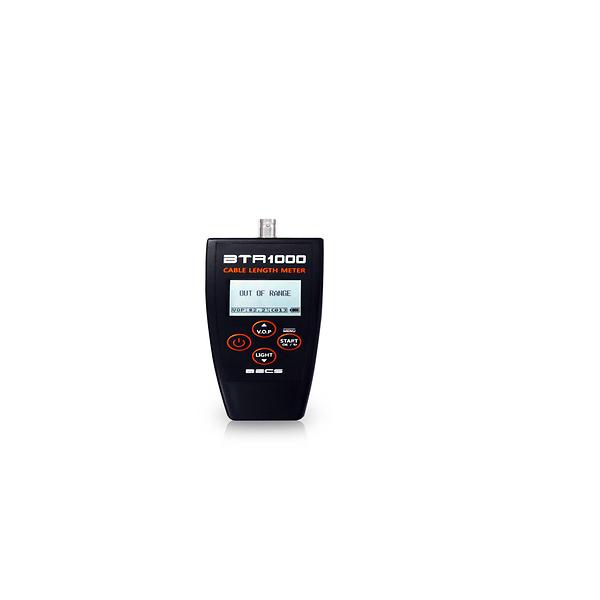

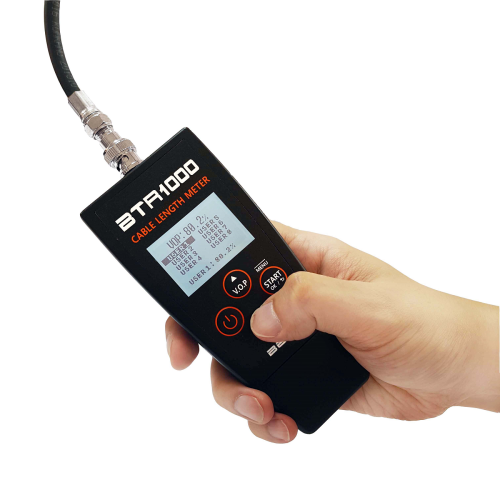

Our NumericTDR(Model.: BTR1000) provides cable fault detection with remarkable specification.
BTR1000 can measure open or short circuit with accurate number for fault location. Besides, BTR1000 supports extremely long distance condition. (Max 3km).
As a core meter, the BTR1000 also gives intuitive menu and display, it will deliver more satisfaction and comfort to field technician.
BTR1000 is applicable for any cable consisting of at least paired (shielded or twisted) metallic conductors, such as coaxial
cables and telephone cables at low cost.
Key feature : Compact size / Smart function / Intuitive display and reasonable price for easy network maintenance
1) Economic TDR : Numeric cable length meter / TDR fault locator
2) Full autoranging to measure the length of cables
3) High resolution and accuracy
4) Overload voltage detection
5) Internal V.O.P library for easy to use
Specification
| Distance | 5m ~ 3Km |
| Accuracy | ± 1 % of reading |
| Resolution | 1cm |
| V.O.P (Velocity of propagation) | 1.0 % ~ 99.9 % (In 0.1 % step) |
| Auto V.O.P | Support |
| Custom V.O.P setting | 8ea |
| Auto off | Support |
| LCD | 128 * 64 Character LCD |
| Power | 2 LR6(AA) type batteries |
| Size | 63 * 140 * 30 mm |
- Specification subject to change without notice
|
| ||
|
| ||
|
| ||
|
| ||
|
| ||
|
| ||
|
| ||
|
| ||
|
| ||
|
| ||
|
| ||
|
| ||
