[Product Description]

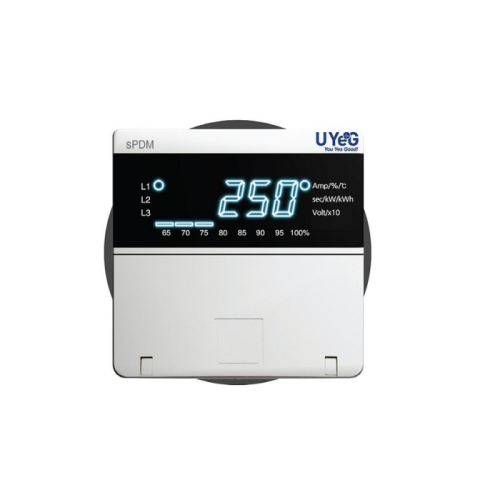

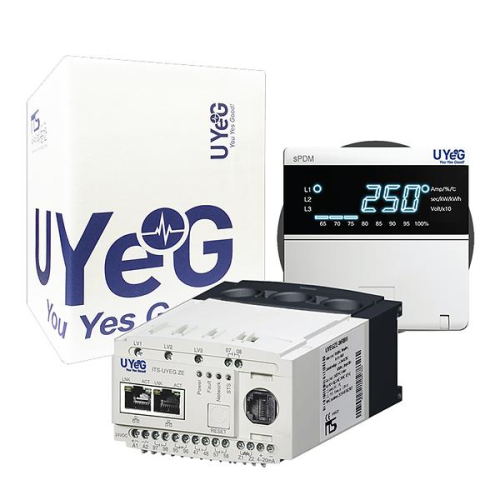

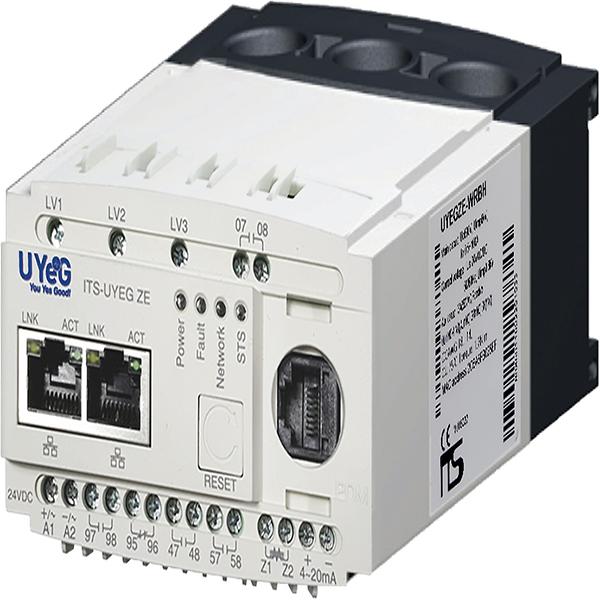

UYeG motor protector is the product of the fourth industrial revolution with the purpose of protecting and monitoring the motor. UYeG is able to measure the voltage, wattage, current, temperature / humidity, grounding current and short-circuit current simultaneously and provides the total solution to protect and monitor the motor. The product monitors the voltage, current and the wattage in real time and saves approximately 10% of the energy. The product improves the safety and the maintenance of the motor using the failure’s waveform records. The product also contains the safety function for the high grounding current to improve the safety. UYeG has a low maintenance fee, because it is a single device product that is unified with a power meter.

●Optimized product for Smart MCC

●Product contains the video converter to save the installation space and time

●Optimized motor protecting with the various protection methods and wide electric current range

●Monitors active/reactive power and electric energy (integrated)
●Records faulty waves (200ms): Saves and records 3-phase current and 3-phase voltage
●Measures electrical energy through 4~20mA output contacts (+, -)
●Checking motor’s insulation status: Able to select the standard insulation resistances of 1MΩ,5MΩ, or 10MΩ, and diagnose if it is higher or lower than the referenced value (Able diagnose after stopping the motor)
●Measuring the 3-phase current: 0.5~100A when using the internal CT, 100~960A when using the external CT
●Able to protect the grounding current (0.03~10A) failure without connecting to the external ZCT, because the product already contains ZCT.
●The date and time can be checked even there is a system failure by setting the date/time
(y/m/d/h/m/s)
●Various protection methods: Definite time, Inverse time and thermal Inverse time
●Protects the grounding current and short-circuit together (50msec)
●Communication function: MODBUS RS-485
●Records the information of last 3 failures: Fault type, fault current, and fault date/time
●Security function (password function)
●Bar Graph display function: able to check the ratio of operating current vs set current
●Restart limit function, set and display the operation time
●Provides a computer software to monitor or change the setting of the system.

[Transaction terms]

■ Minimum quantity to order: 1

■ Amount transaction terms: FOB terms / PayPal

■ Payment option at Online shopping: Card

■ Delivery period for less than 1000 products: a month. (5 weeks)

■ Delivery period for 1000 products or more: consultation is needed

■ Air, logistics fee, and shipping charges are separated.

[Company introduction]

ITS is a small and medium-sized company in Korea, established in August 2002. The objective of ITS is to develop the smart motor protector (UYeG -ZE/ME (IoT-EOCR)), which provides the solution of electric foresight prevention. The development of the smart motor protection prevents the industrial electric equipment’s unexpected down time (non-operating time), tragic accidents and the machine’s trouble in order to protect the environment and people. ITS will continue to develop the industrial automation, information communication and electronic fields. ITS always suggest to compose the accurate and perfect system and provides “Low Cost, High Tech” to the customers.

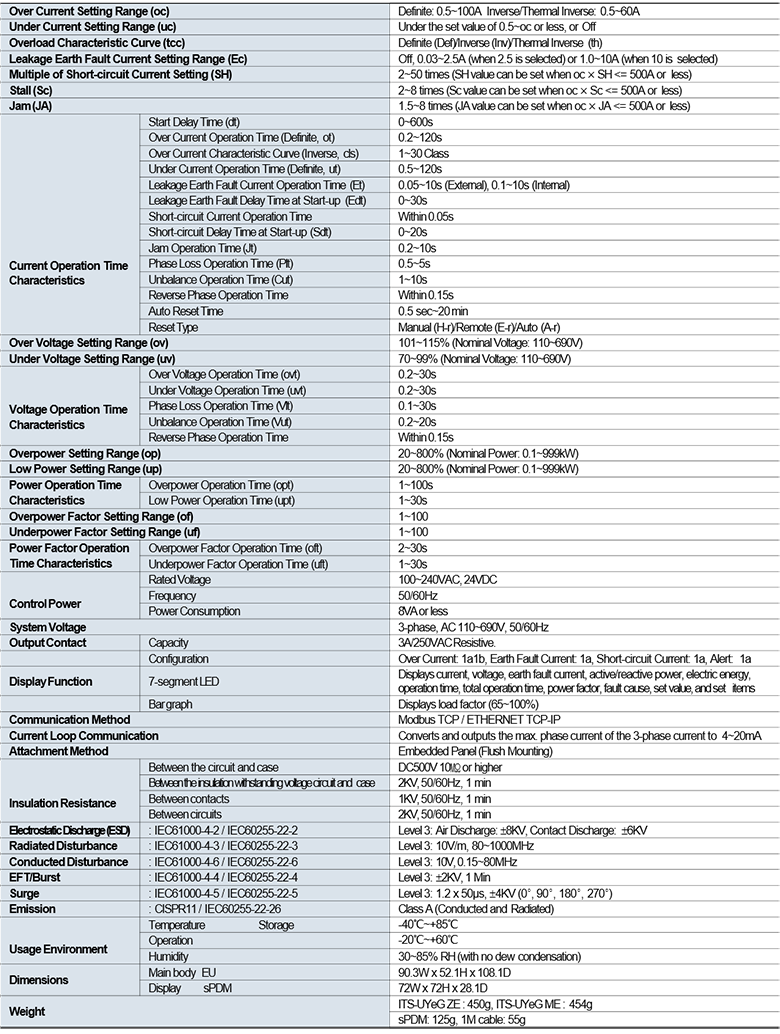

[Specification]
