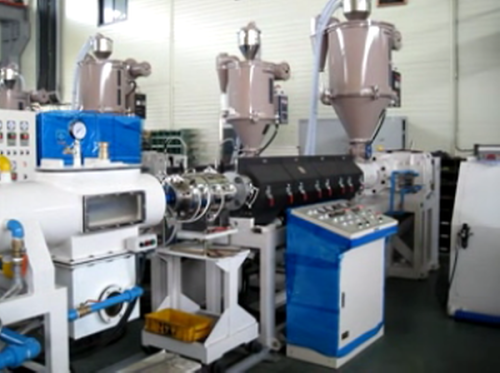

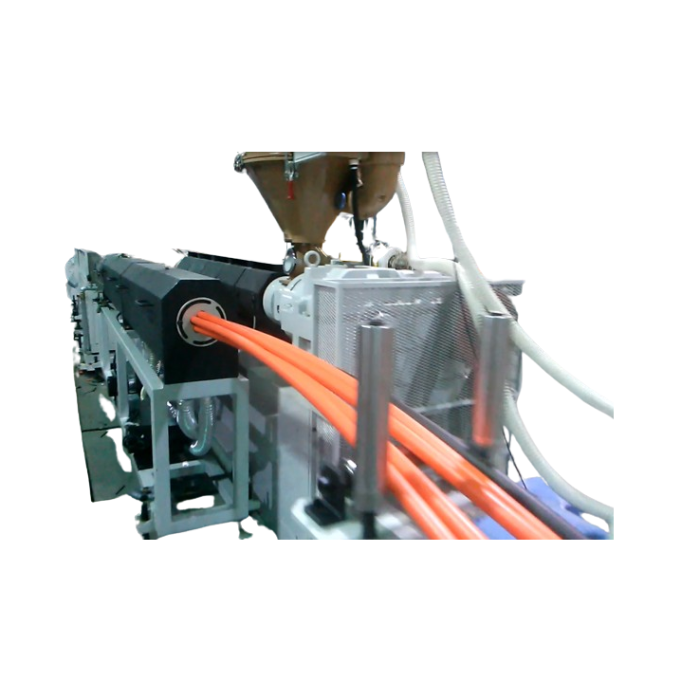

COD (Corrugated Optic Cable Duct) production Line as turnkey contact supply or relevant apparatus only under Licensing Agreement.

Supply, Installation and Operator training of COD (Corrugated Optic Cable Duct) production Line as turnkey contact supply or relevant apparatus under Licensing Agreement. Major components of a complete production line consists of:

1. Inner Duct Supplying System

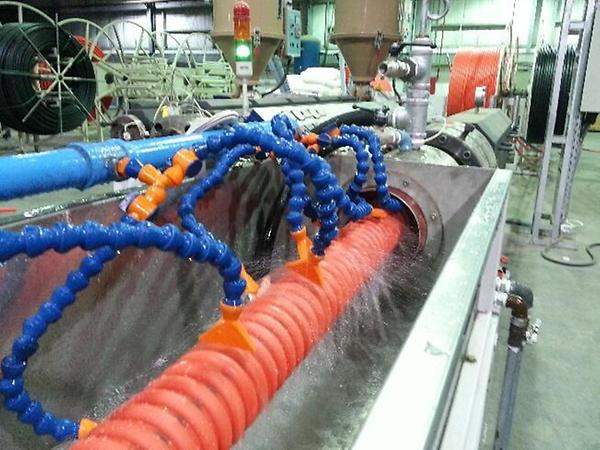

2. Inner & Outer Duct Pipe Extruder

3. Pre-heating unit

4. Cross-Head

5. Inner & Outer Duct Pipe Sizing unit

6. Vacuum Cooling Unit

7. Haul Off Unit

8. Cooling Bath

9. Blend Mixer

10. Digital Marker

11. Auto Cutting Unit

12. Winding Unit

Dies with Sizing Unit varies depending on the designed Product Models.

Our regular sizing range for the Outer Duct Dimension of the product is from 77mm to 155mm, however, any counter model with various different sub-ducts models are acceptable.

Depending on Client demand, the trough (wall depth) and pitch interval of the product is variable to determine better application meeting particular requirement.

[COD Production Process _ Inner Duct]
1. Prepare HDPE, Master Batch

2. Hopper Loader Loads Resin

3. Inner Duct Extruded


4. Inner Duct passes Water Cooling System


5. Cooled Inner Duct goes through Pinch Roller


6. Inner Duct Coiled In the Reel

[COD Production Process _ Outer Duct]
1. Install Inner Ducts in Supply Reels

2. Spooled Inner Ducts roll into One


3. Inner Ducts feed into Cross Head


4. Outer Duct Extruded

5. Outer Duct passes Water Cooling System


6. Outer Duct Coiled In the Reel
