Electrostatic Elimination System for Powder
Request For Quotation
A solution system to control the accumulated electrostatic in various solids such as high molecular
- Certification
-
- Award
-
- Shipping
-
- Lead Time270 ~ 300days
- Products Shipped From Daejeon
- Payment
-
140+ Global Payments, trusted and secure payment provided by PayVerse.
Learn More
- Quantity
- MOQ : 1 Sets
Detailed Description
■ FEATURES

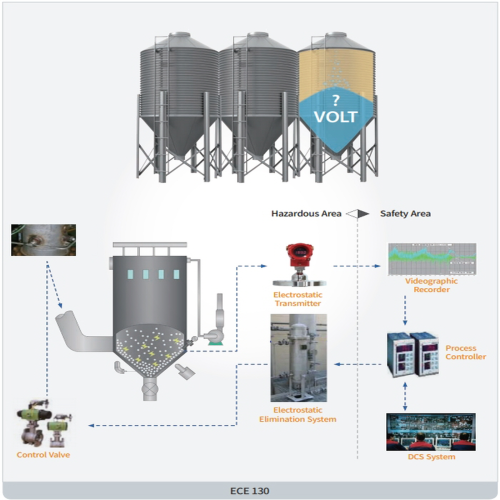

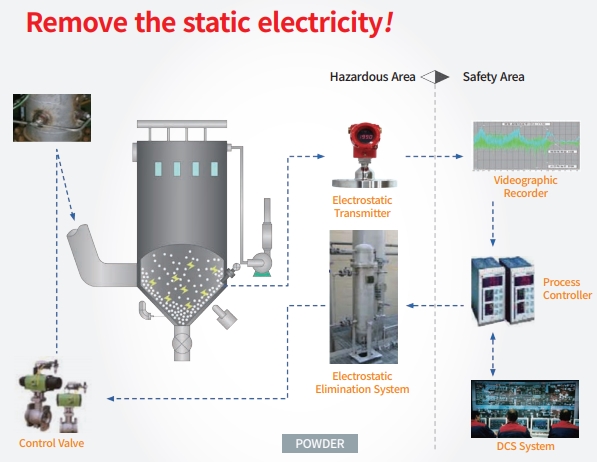

1. Electrostatic elimination system which receives signal
from 4~20mA electrostatic transmitter.
2. Application : Reactor, Packer, Bag Filter Truck Loading
3. Suitable large powder transfer piping (6"~36")
■ Application
All processes of producing Powder Pellet
All processes of producing Powder Pellet

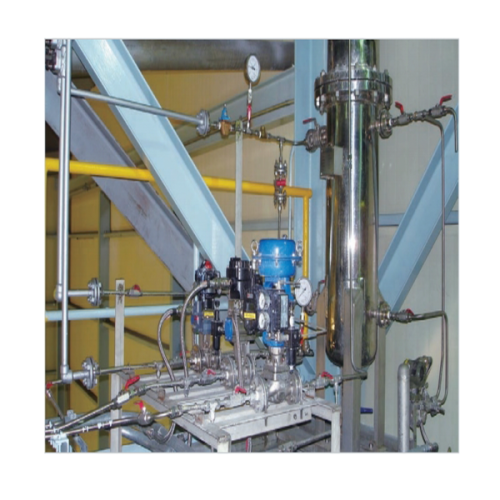

■ General Specification
1. Liquid Vessel : 254∅ x 1300mm, SUS304
2. Control Valve : 1/2"
3. Level Transmitter : Span 2.7 to 160 mbarg
- HART, 4-20mA, DC 24V, 2-wire, EEx d II C T6
- Process Connection : 1/2" NPT(F)
- Indicating : LCD Indicator
4. Pressure Regulating Valve
- Pressure Range : 0~10kg/cm2g
- Connection : 1/2" KS PT Screwed
5. Videographic Recorder indicator
6. Float Valve
- SUS304, 1/2", 0.5 ~ 10kgf/cm2, SS304
7. Pressure Gauge : 0 ~ 10kg/cm2, SS304
8. Water Trap : 1/2"
9. Process Controller
10. Manual Ball Valve : 1/2"
11. Check Valve : 1/2"
12. Explosion Proof Indicator Box : Ex d IIC T6
13. 500Kg, 2000(D)x2000(H)x1500(H)
1. Liquid Vessel : 254∅ x 1300mm, SUS304
2. Control Valve : 1/2"
3. Level Transmitter : Span 2.7 to 160 mbarg
- HART, 4-20mA, DC 24V, 2-wire, EEx d II C T6
- Process Connection : 1/2" NPT(F)
- Indicating : LCD Indicator
4. Pressure Regulating Valve
- Pressure Range : 0~10kg/cm2g
- Connection : 1/2" KS PT Screwed
5. Videographic Recorder indicator
6. Float Valve
- SUS304, 1/2", 0.5 ~ 10kgf/cm2, SS304
7. Pressure Gauge : 0 ~ 10kg/cm2, SS304
8. Water Trap : 1/2"
9. Process Controller
10. Manual Ball Valve : 1/2"
11. Check Valve : 1/2"
12. Explosion Proof Indicator Box : Ex d IIC T6
13. 500Kg, 2000(D)x2000(H)x1500(H)
