ALPU FA
$0.25 pcs
User programmable copy protection IC
32 Kbits EEPROM, Retention(10 years)
Erase/Write Endurance: 100K
Standard AES-128 encryption and decryption
SHA-256/AES-12
32 Kbits EEPROM, Retention(10 years)
Erase/Write Endurance: 100K
Standard AES-128 encryption and decryption
SHA-256/AES-12
- Certification
-
- Award
-
- Shipping
-
- Lead Time40 ~ 60days
- Modes of Transport CPT,FCA
- Payment
-
140+ Global Payments, trusted and secure payment provided by PayVerse.
Learn More
- Quantity
- MOQ : 3,000 Pieces
Detailed Description

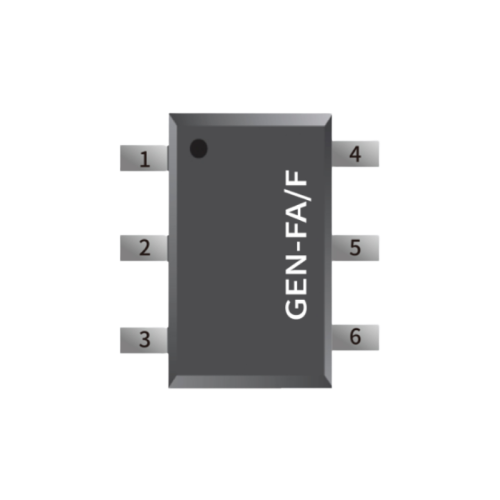

The ALPU-FA is the high-end IC among the ALPU series.
The ALPU-FA has 32 Kbits EEPROM. Configuration data and user data can be saved at the EEPROM. The data is protected by passwords and encryption. The ALPU has SHA-256 core. SHA-256 is used for authentication. ALPU-FA encryption core is based on Rijndeal AES-128 with programmable parameters. It is a slave device that always operates with MCU through the serial bus. The ALPU has internal 8 MHz clock. When MCU does not access the ALPU for a defined time, The ALPU goes to sleep mode. The 8MHz OSC does not oscillate sleep mode.
