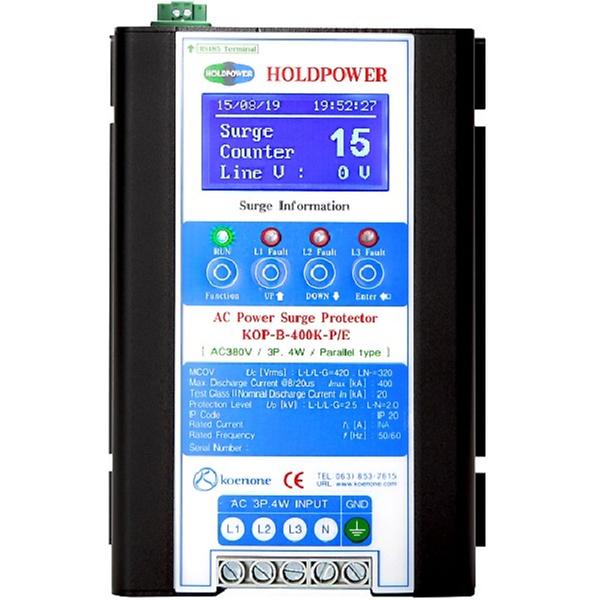

Model : SURGE PROTECTOR POWER LINE SPECIAL TYPE 2

Size : (W) 140 x (L) 276 x (H) 90mm / (W) 140 x (L) 226 x (H) 90mm / (W) 140 x (L) 216 x (H) 90mm / (W) 140x (L) 190 x (H) 90mm

Type : 3Phase 4wire, 3Phase 3wire, Single Phase 2wire Serial/Parallel

Voltage : AC 460V, 440V, 380V, 220V, 110V / DC 600V, 440V, 380V, 200V

Capacity : 800kA, 500kA, 400kA, 360kA, 320kA, 260kA, 240kA [total]

Origin : South Korea

Payments terms : T/T

Delivery terms : FCA south Korea (negotiable)

Application

   - Instrument power [Flowmeter, Water gauge, Electronic scale etc]

   - Actuator power, other singular, device power

[FEATURES]

KS, CE Certificate, Patent

High-performance, High-capacity SPD [240kA - 800kA/total]

Full mode protection [Line-Neutral, Line-Ground, Line-Line] -

Performance in compliance with IEC 61643-11

Back light LCD type surge event list[Non-volatile memory type]

Leakage current measurement and display for MOV internal [0.00mA]

Line Voltage measurement and display - [Line Voltage]

Dual safety design - [current & thermal fuse]

Lamp and buzzer for a normal or abnormal state check

Surge, Overvoltage, Undervoltage event record [Date & Time]

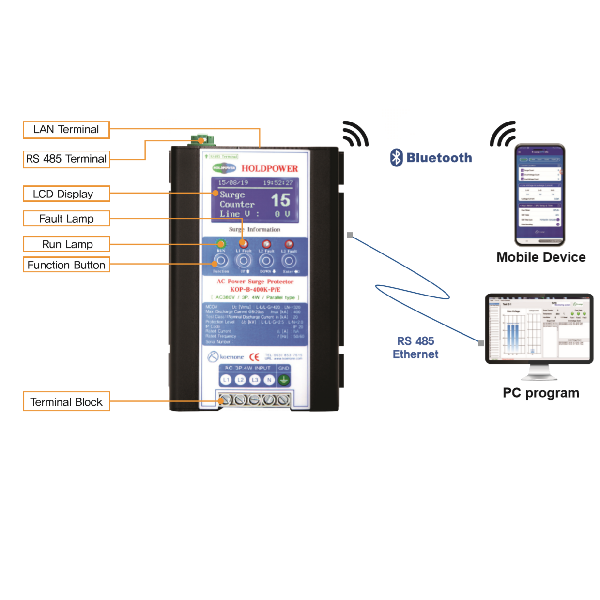

RS485, Ethernet communicaion support (Modbus RTU Protocol)

Movile APP hookup support

Surge wave and surge current record (Option)

Aluminum case for proven safety against the surge protector failure
