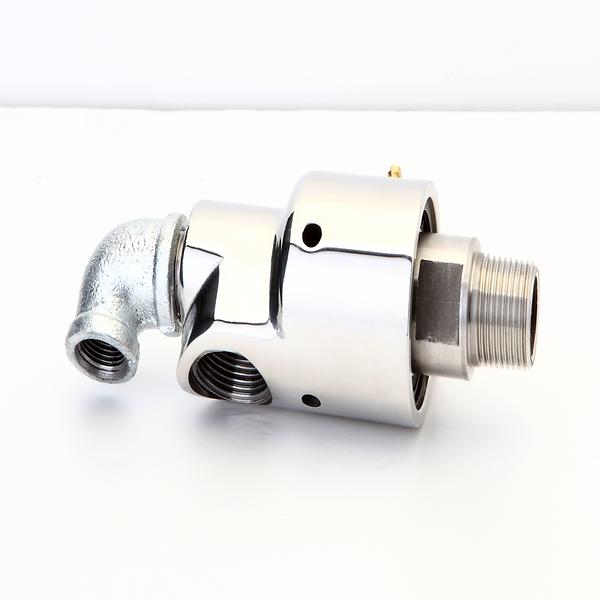

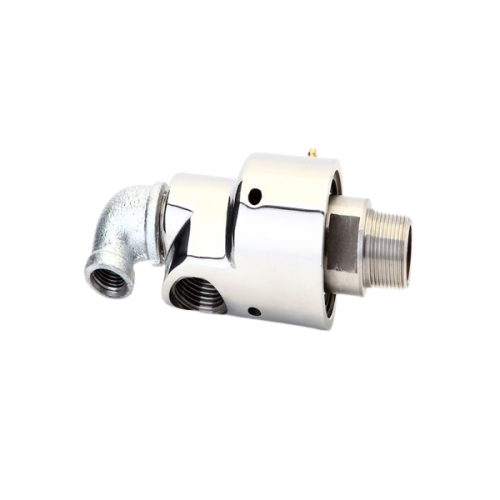

SHW1000 Series was developed to be used for general purposes,

for housing material and oil supply type ball bearings.
We provide ceramic and carbon graphite.
Consumers can choose tungsten carbide or silicon carbide for life- extension.
These seals guarantee perfection as they are lapped thoroughly and precisely with high-tech optics.
A rotary joint type temperature gauge can be mounted and used.

Max Water Prossure : 15kgf/cm2G

Max Water Temperature : 120C

Max Speed : 6A ~ 25A  -  1500 RPM

                    32A ~ 80A  -  1000 RPM

              Frange Type  -  2000 ~ 3500 RPM

Media : Water, Air, Vacuum, Hot Water, Steam

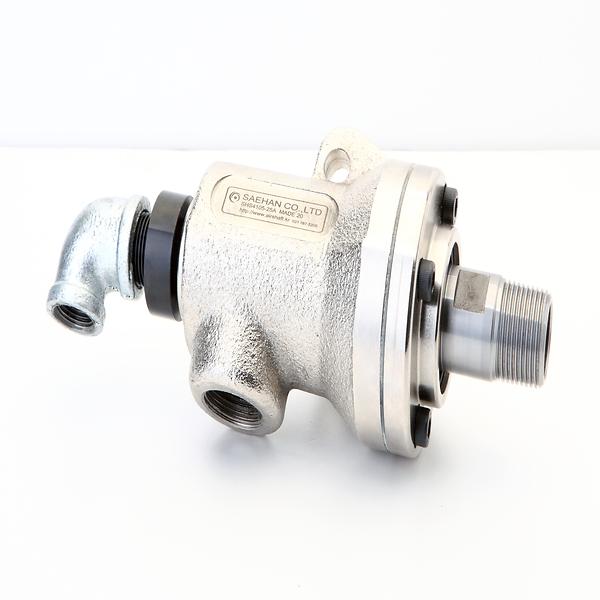

SHS 4000 Series and SHH 5000 Series of Saehan were designed for long life,

convenient maintenance and repair purposes.
It was especially plated with Nickel in order to protect it from erosion

and the rotor was designed as one body with Stainless Steels.

Its seif-supporting rotary joint type was two carbon bearings and its endurance is excellent

so it is suitable for steam, hot oil, and hot water which have both high temperature and high pressure.

Max Steam Pressure : 20kgf/cm2G

Max Steam Temperature : 210C

Max Hot Oil Pressure : 20kgf/cm2G

Max Hot Oil Temperature : 20kgf/cm2G

Max speed : 350 RPM

Media : Steam, Hot Oil, Hot Water
