Optical Media Converter
- Certification
-
- Award
-
- Shipping
-
- Products Shipped From Seoul
- Payment
-
140+ Global Payments, trusted and secure payment provided by PayVerse.
Learn More
- Quantity
- MOQ : 5 Units
Detailed Description
NMC-2101 Optical Media Converter Series with different bandwidth and management features.
Optical Media Converter is the perfect solution to transmit high-speed optical data over long distances and nicely fits
office network, SmartCity, and CCTV network configurations.
[OMC Series]
NMC-2101
- Unmanaged FE Media Converter
- 10/100Base-TX to 100Base-FX
- Flow Control, LLCF
NMC-2101M
- Managed FE Media Converter
- 10/100Base-TX to 100Base-FX
- Flow Control, LLCF, SNMP, OAM, Broadcasting Filtering, Jumbo Frame, VLAN

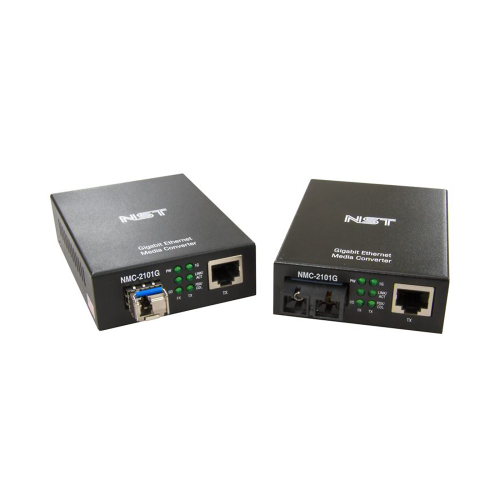

NMC-2101G
- Unmanaged GbE Media Converter
- 10/100/1000Base-T to 1000Base-X
- Flow Control, LLCF

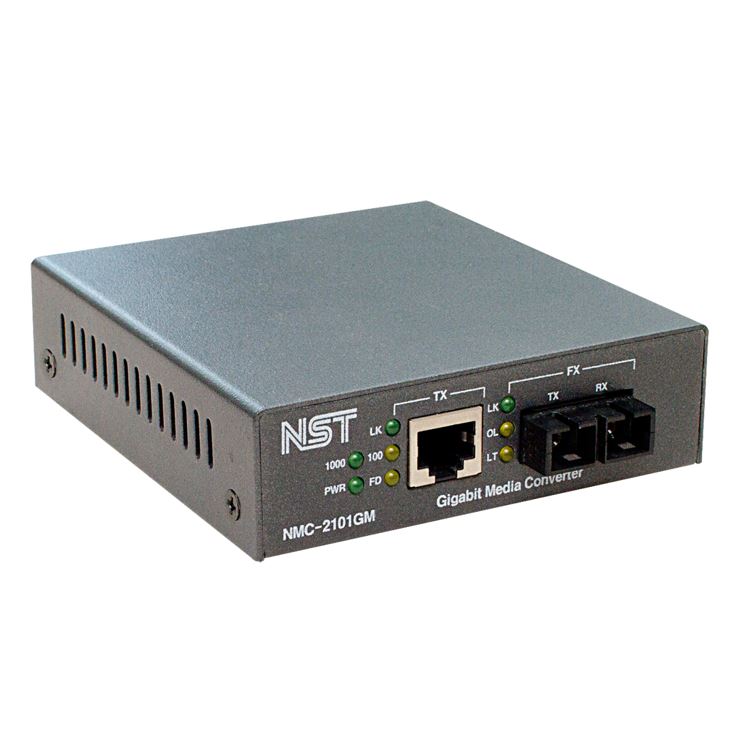

NMC-2101GM
- Managed GbE Media Converter
- 10/100/1000Base-T to 1000Base-X
- Flow Control, LLCF, SNMP, OAM, Broadcasting Filtering, Jumbo Frame, VLAN

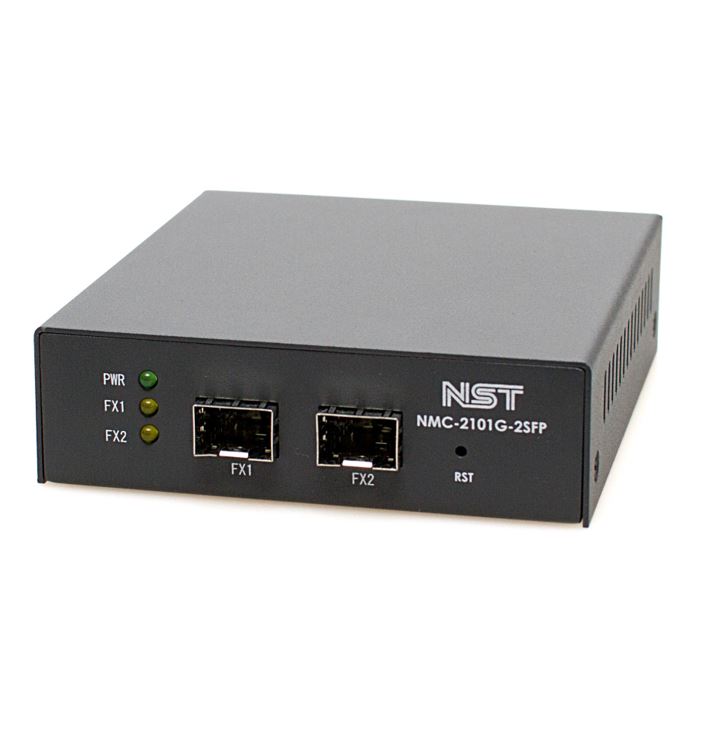

NMC-2101G-2SFP
- Unmanaged GbE Media Converter
- 1000Base-X SFP to 1000Base-X SFP
- Convert from Multi-mode to Single-mode
[Features]
- Stable long-distance data transmission with Optical Fiber Media Converter Solution
- Simplified Deployment and ease of use
- Auto Negotiation - automatic speed set up according to the interface connected via UTP line.
- Auto-MDI/MDIX - no more hassle with direct or cross-cable selection.
- Transmission Mode Selection Function supports Store-and-Forward as well as Cut-Through Transmission Mode.
- LLCF (Link Loss Carry Forward) - When there is no signal received from the optical port, it blocks Ethernet port data transmission as well as optical port transmission.
