* This item is based on customizing for customer requirement sizes.
(possible to supply which has different port sizes and other types)​



[HIFLUX] High Pressure Manifold block 4way  15,000psi ~ 60,000psi

* Features

- Connect or divide the tubing lines which have the same pressure or various pressure tubing lines.
- Pressure Range : 15,000psi ~ 60,000psi
- Tube size : 1/8", 1/4", 3/8",​ 1/2"​, 3/4", 9/16", 1"
- Stainless steel 316
- Allow Temperature : -423℉(-252℃) to 1200℉(649℃)
- Possible to supply for customer requirement sizes or specification
- possible to supply which has different port sizes and other types

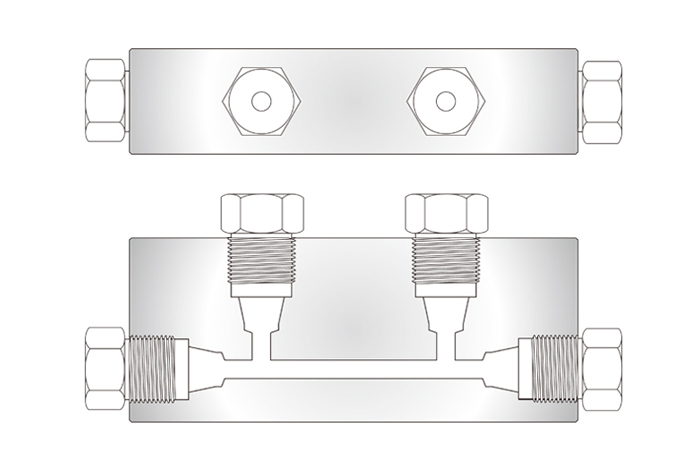

[HIFLUX] High Pressure Manifold block 4way  Structure

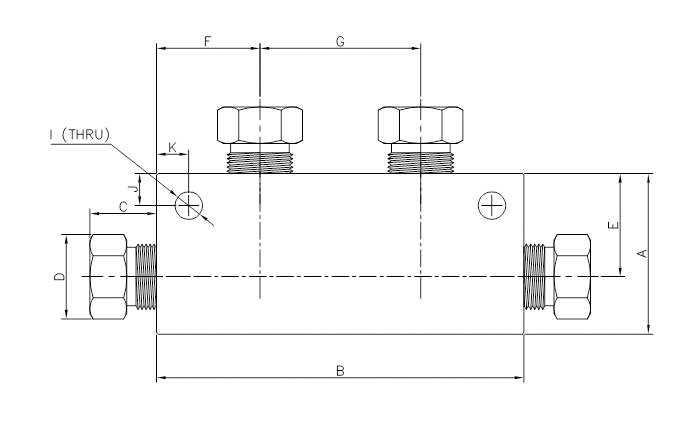

HIFLUX] High Pressure Manifold block 4way  15,000psi

[HIFLUX] High Pressure Manifold block 4way  20,000psi

[HIFLUX] High Pressure Manifold block 4way  60,000psi

[HIFLUX] High Pressure Manifold block 4way  NPT 15,000psi

[HIFLUX] High Pressure Manifold block 5way  15,000psi ~ 60,000psi

* Features

- Connect or divide the tubing lines which have the same pressure or various pressure tubing lines.
- Pressure Range : 15,000psi ~ 60,000psi
- Tube size : 1/8", 1/4", 3/8",​ 1/2"​, 3/4", 9/16", 1"
- Stainless steel 316
- Allow Temperature : -423℉(-252℃) to 1200℉(649℃)
- Possible to supply for customer requirement sizes or specification
- possible to supply which has different port sizes and other types

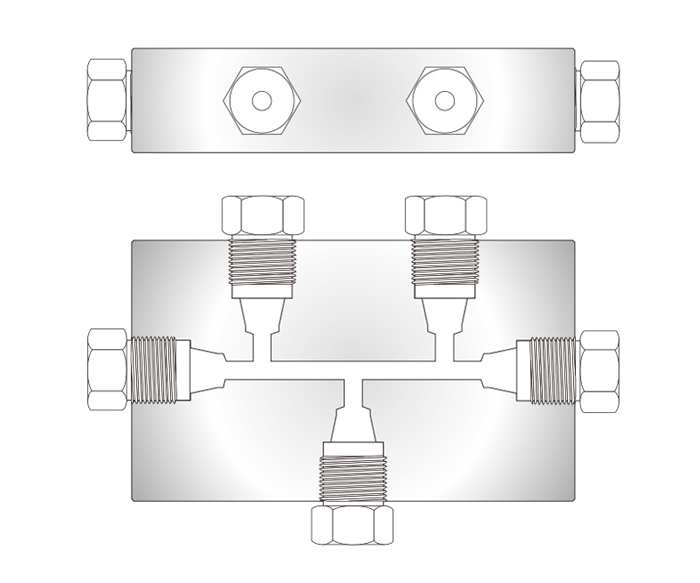

[HIFLUX] High Pressure Manifold block 5way  Structure

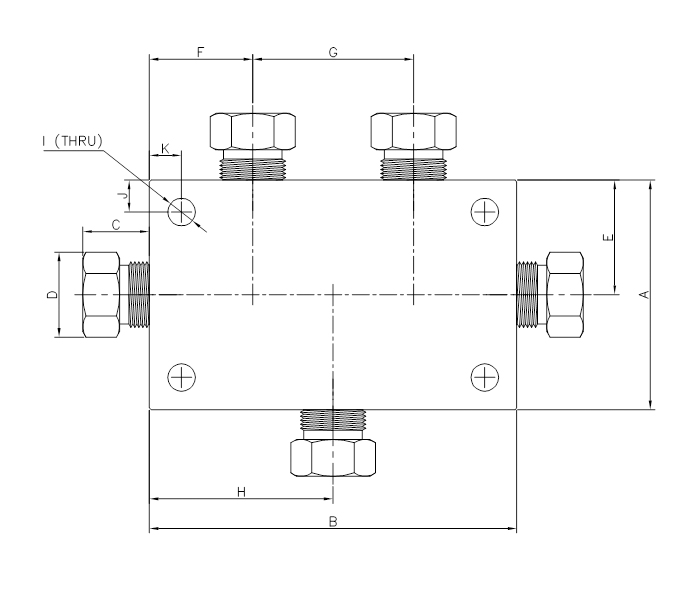

[HIFLUX] High Pressure Manifold block 5way

[HIFLUX] High Pressure Manifold block 5way  15,000psi

[HIFLUX] High Pressure Manifold block 5way  20,000psi

[HIFLUX] High Pressure Manifold block 5way  60,000psi

[HIFLUX] High Pressure Manifold block 5way  NPT 15,000psi

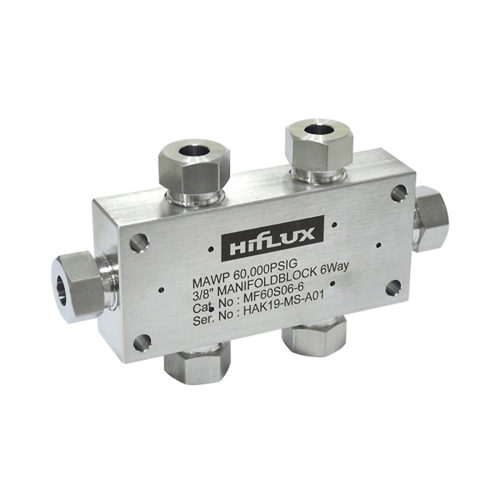

[HIFLUX] High Pressure Manifold block 6way  15,000psi ~ 60,000psi

​

* Features

- Connect or divide the tubing lines which have the same pressure or various pressure tubing lines.
- Pressure Range : 15,000psi ~ 60,000psi
- Tube size : 1/8", 1/4", 3/8",​ 1/2"​, 3/4", 9/16", 1"
- Stainless steel 316
- Allow Temperature : -423℉(-252℃) to 1200℉(649℃)
- Possible to supply for customer requirement sizes or specification
- possible to supply which has different port sizes and other types

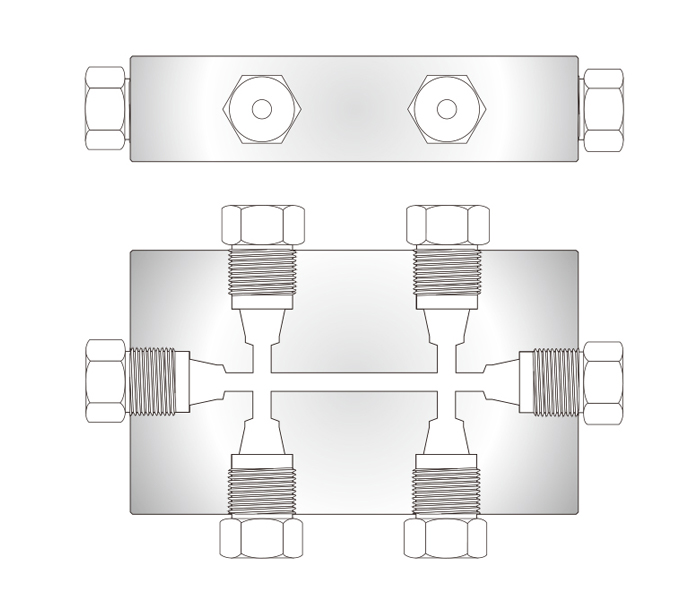

[HIFLUX] High Pressure Manifold block 6way  Structure

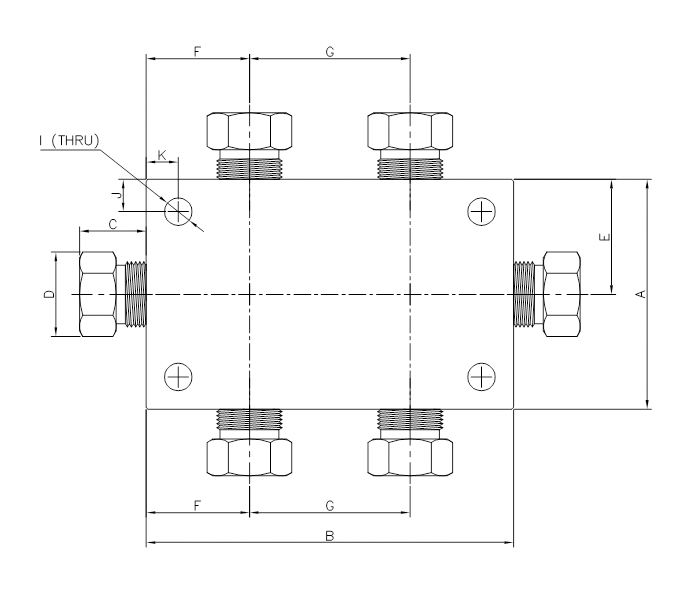

[HIFLUX] High Pressure Manifold block 6way  15,000psi

[HIFLUX] High Pressure Manifold block 6way  20,000psi

[HIFLUX] High Pressure Manifold block 6way  60,000psi

[HIFLUX] High Pressure Manifold block 6way  NPT 15,000psi

* Other product

	High pressure needle valve			High pressure pipe needle valve
	High pressure check valve			High pressure ball valve
	High temperature valve			High pressure control valve
	Air operated valve			High pressure tube fitting
	High pressure tube			High pressure nipple
	Low pressure tube			High pressure gauge
	High pressure regulator			Back pressure regulator
	High pressure union adapter			General pressure regulator
	High pressure adapter			High pressure male adapter
	Tube support
	Safety Head			Rupture disc
	Tooling Set-Coning tool			Tooling Set-Reseating tool
	Tooling Set-Threading tool			Lok Type Fitting
	Lok Type Valve

* Ordering option

- As our products are divided into pressures of 5,500~150,000psi, body type and port size, you can use them according to the specifications which you want to use.
- Our products generally are produced with STS materials, but they can be manufactured with other materials on demand so that various fluids and gases can be used.
- Please inquire with us about special materials apart from the above-mentioned materials, such as STS316, HC-276, INC600, INC700, Ti and Ni.
