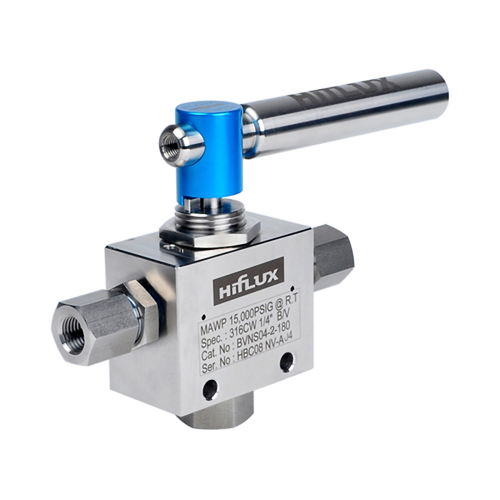

* [HIFLUX]  High Pressure 2-Way Trunnion Ball Valve




Ball valve is a manual valve which is used to open or close the flow of gas or fluids by the turning 90-degrees with the valve handle.

Hiflux Ball valve is using a trunnion-type ball with a seat and is possible to use in the low pressure and high pressure environment without leakage. Peek which is good for abrasion resistance, rub resistance and chemical resistance when used for the seat.

* Features

-  Trunnion style BALL.
-  Turn 1/4"(90-degrees)
-  Tubing size : 1/8", 1/4", 3/8", 9/16"
-  Max working pressure : 20,000psi
-  Advanced abrasion resistance, rub resistance and chemical resistance with PEEK for the seat.
-  O-ring Material : Viton
-  Standard Material : SUS316
-  Possible to check flow direction with handle position.
-  Important information for ball valve.
-  Designed to completely open or close.
-  Requires high driving power at the first open or close if not used for a long time.
-  Available on panel mounting.
-  Possible to check flow direction with handle position.
- Improve the lifetime and prevent abrasion by using spring washers.

* As all sizes are for reference, they can be different from actual sizes.
* Please contact us for details or send an online inquiry, we will respond to you as soon as possible.
