Auto Nursery Sowing Machine Seedling Machine Seedi

PID: 3042603

Auto Seeding Machine

$3,650.00 EA

Auto Seeding Machine (JK-2002) Auto Nursery Sowing Machine, Seeding Machine, Seeding Machine, Agricultural machinery, Seeding Machine, seeding machine, Nursery Sowing

Certification

Award

Shipping

Lead Time5 ~ 20days
Modes of Transport CIF,EXW,FOB
Products Shipped From Busan

Payment: 140+ Global Payments, trusted and secure payment provided by PayVerse.
Learn More

Quantity: MOQ : 1 EA

Detailed Description

01 Product Features

Model	Features

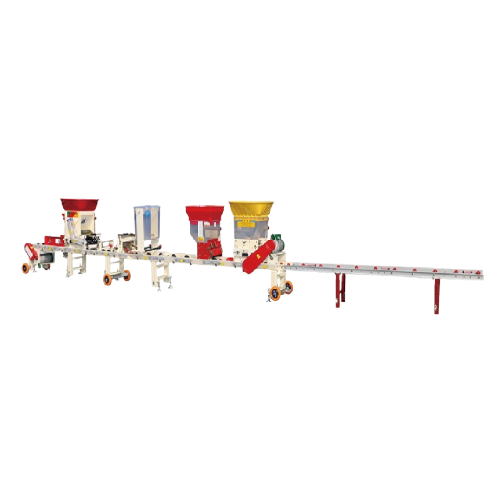

Automatic seedling machine for broadcast sowing	The product can conduct the processes of box input-bed soil-water spraying-seedling-covering up the seed with soil simultaneously and sows massive amount promptly saved labor cost and enhanced work efficiency through fully automated processes. With a 2-speed motor, the sowing speed is adjustable to either 660 boxes or 1000 boxes per hour. The loss of rice seeds and cover-up soil is reduced as the seed feeding entrance pushes the boxes forcibly and there is no gap between boxes. Brush (the rotating brush) plays a role in flattening the bed soil. Water is sprayed in the form of free drop through the 2-hole water strainer. Rice seed container, soil container, and water container are so transparent that the users can check the residuals. Rice seed amount and soil amount are easily adjustable with a handle lever. No mis-planted hills occur as all of the rice seeds are dropped correctly with a seed dropping blade equipped to the rice seed roller.

Model

Features

Automatic seedling machine for broadcast sowing

The product can conduct the processes of box input-bed soil-water spraying-seedling-covering up the seed with soil simultaneously and sows massive amount promptly saved labor cost and enhanced work efficiency through fully automated processes.
With a 2-speed motor, the sowing speed is adjustable to either 660 boxes or 1000 boxes per hour.
The loss of rice seeds and cover-up soil is reduced as the seed feeding entrance pushes the boxes forcibly and there is no gap between boxes.
Brush (the rotating brush) plays a role in flattening the bed soil.
Water is sprayed in the form of free drop through the 2-hole water strainer.
Rice seed container, soil container, and water container are so transparent that the users can check the residuals.
Rice seed amount and soil amount are easily adjustable with a handle lever.
No mis-planted hills occur as all of the rice seeds are dropped correctly with a seed dropping blade equipped to the rice seed roller.

02 Work Performance

Operation method	Description
Adjustment of rice seed amount	Adjustable freely between 100g ~ 400g on the seedbed.
Seedbed processing capacity per hour	2-level speed is adjustable to either 660 boxes of standard speed or 1000 boxes of high speed per hour.

03 Key Dimension

# of a box per hour (Control motor)		Full length(mm)	Full width(mm)	Full height(mm)	Weight(kg)	Hopper capacity (ℓ)			Power transmission unit
High speed	Standard speed	Full length(mm)	Full width(mm)	Full height(mm)	Weight(kg)	Bed soil	Sowing	Cover-up soil	Power transmission unit
1000	660	7580	500	1060	160	50	50	50	Chain roller

**Company Introduction**

Based on about 130 patents, utility model rights, design rights and trademarks, Kwang Pung has the technical capabilities to manufacture the following machines not only for domestic use but also for export to other countries such as India, Egypt and so on.

We are an agricultural machinery company specializing in sales of wide rotaries for power tillers, bean threshing machines, auto seeding machines and soil pulverizers. We also manufacture selectors, washers and shellers for chestnuts, walnuts and ginkgos.

In addition, our company manufactures hazard lights for power tillers (strobe type, battery type, solar type and rear view mirror type, etc).

This will enable us to protect the lives and wealth of our farmers and fishermen.

Our aim is to continue producing machines that could improve the lives of those people who belong to the agricultural sector of society.
