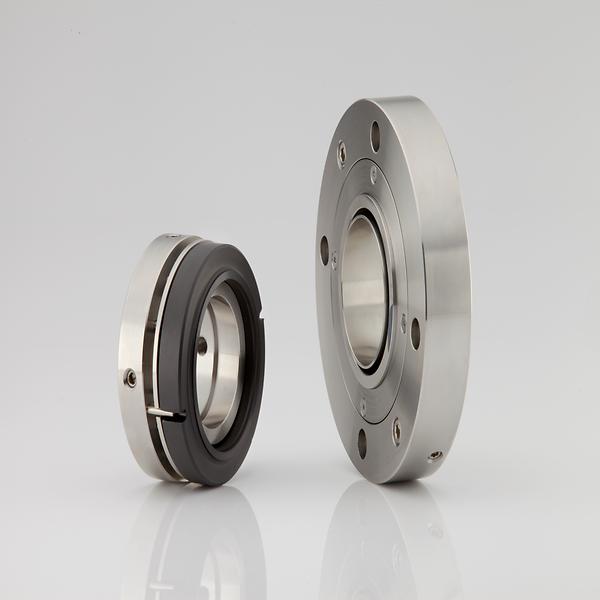

An outside, contacting mounted dry running single seal designed specifically for use on top-entry agitator and mixer services.

Designed for superior chemical resistance.

Specific Features of STMX1/STMX2

• Self-lubricating carbon or filled PTFE seal face runs completely dry without cooling
• Flexible rotor part designed suitable for the high run-out requirements of mixers and agitator etc.
• Optional flush connector allows steam cleaning and sterilizing of the seal’s interior while mounted on the equipment
• Suitable for pressure reversible double o-ring prevents distortion of the stator.
• Use non-metallic parts for superior chemical resistance.
• Protect inflow of the particle of seal face to the products.

Operating Capabilities

• Temperature : -40~150℃
• Pressure : Vacuum~0.4 MPa
• Shaft Speed : Up to 350rpm

Materials

• Seal Face
-Resin Imp. Carbon
-Filled PTFE
• Mating Ring
-Silicon carbide
-Tungsten carbide
-Ceramic Coating

Applications

• Agitator, Mixer and Reactor
• Pharmaceutical industry
• Food and beverage industry
• Chemical industry
• Non-toxic media
