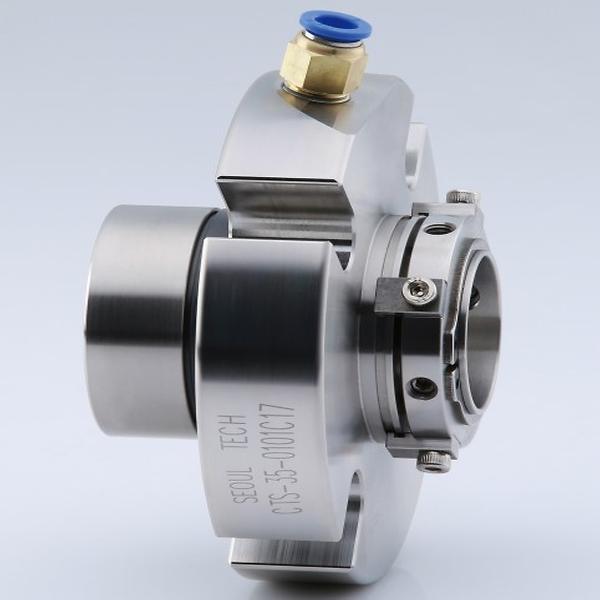

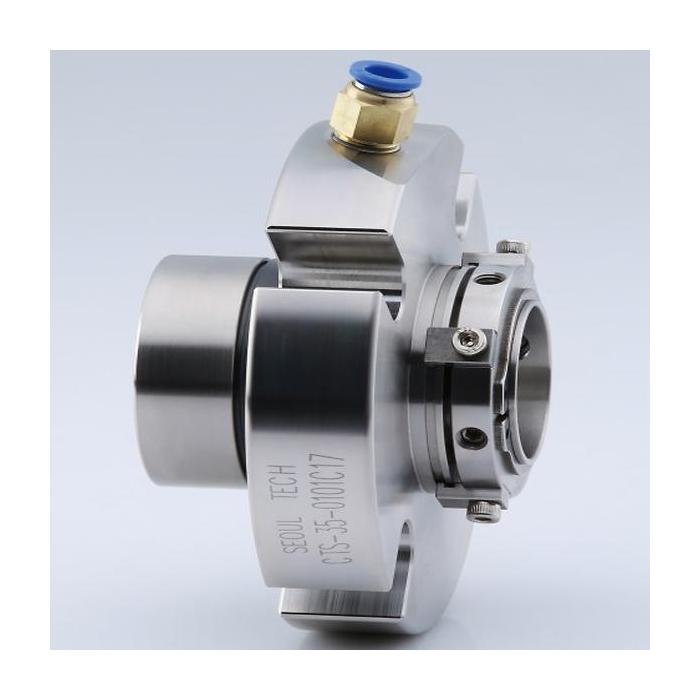

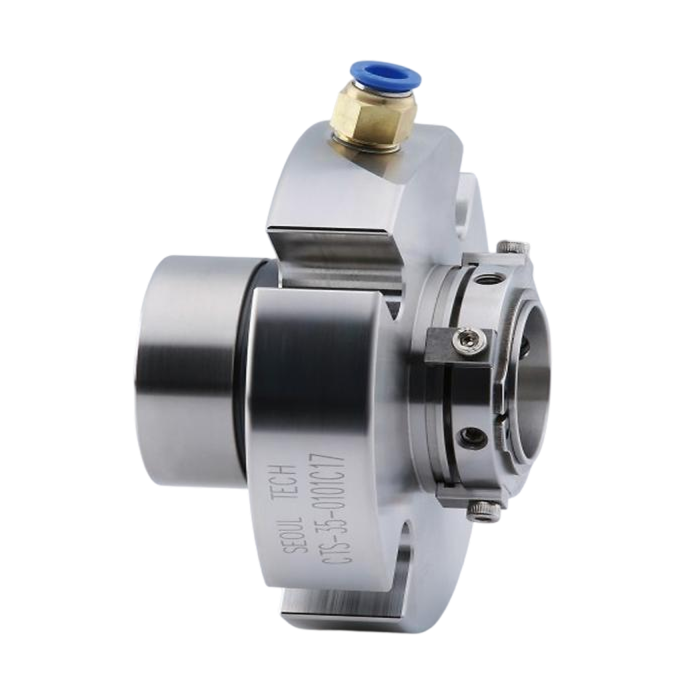

The CTS is a single pusher cartridge, stationary seal, excellent for numerous services in chemical processing, water treatment and sewage plants, and pulp and paper mills, etc.

Specific Features of CTS
• Preset cartridge design, speeds installation, eliminates change of
installation error, easy to repair.
• Stationary mounted seal, no wearing at shaft or sleeve, flexible
components isolated from shaft vibration and the effects of shaft
deflection.
• Springs on the atmospheric side of the seal prevents clogging of
spring pockets by particulates in media.
• Pressure balanced seal face technology for reduced power
consumption
• Flush, Quench and drain can be connections with standard.
• Slotted gland plate accommodates varying bolt circle diameters.

Operating Capabilities
• Temperature : -30~200℃
• Pressure : 1.6 MPa
• Speed : 15m/sec
Materials
• Seal face
-Silicon carbide
-Tungsten carbide
-Antimony Imp. Carbon
-Resin Imp. Carbon.
-Special Steel
Applications
• General industry
• Process industry
• Chemical industry
• Pulp and paper industry
• Water and sewage water Technology
• ANSI process pumps
