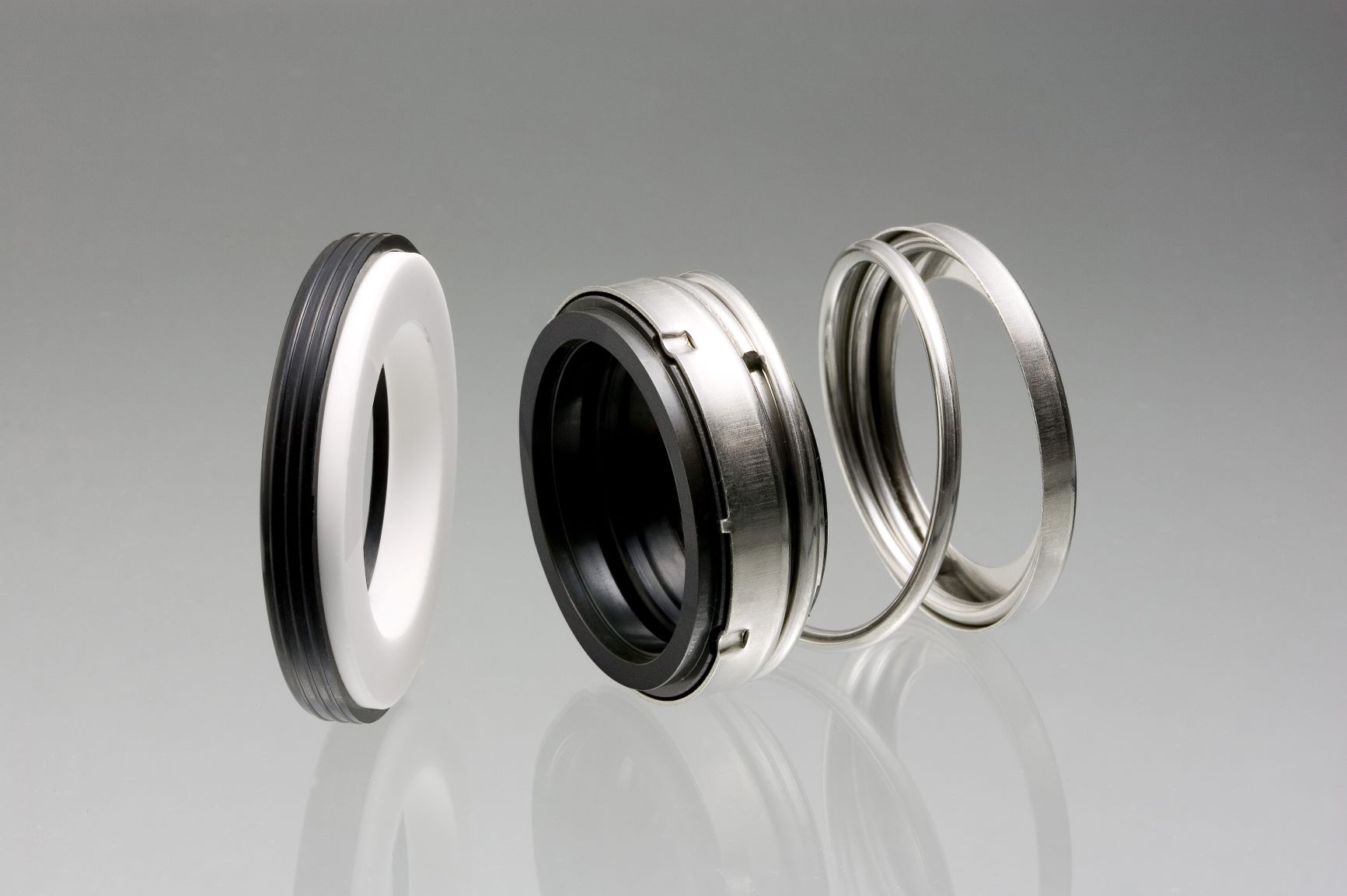

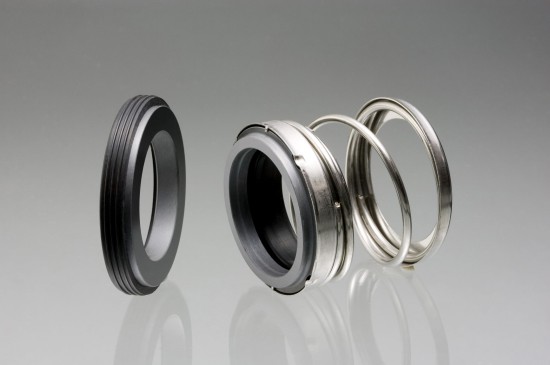

Elastomer Bellows Mechanical Seal Unbalanced seal Rubber Bellows ST560A
Request For Quotation
Elastomer Bellows Mechanical seal, Unbalanced single seal, Rubber Bellows seal, 560A, Submersible pump, Single face
- Certification
-
- Award
-
- Shipping
-
- Payment
-
140+ Global Payments, trusted and secure payment provided by PayVerse.
Learn More
- Quantity
- MOQ : 1 Sets
Detailed Description
* Features
Elastomer Bellows type Mechanical seals.
The ST560A is simple structure and economical, its mainly used in good work condition as clean water
* Operating capabilities
Shaft diameter (D1) : 10 ~ 55mm
Temperature (t) : -20 ~ 100℃
Pressure (p1) : Up to 0.5MPa
Speed (Vg) : 5 m/s (19 ft/s)
Axial movement : ±1.0mm
* Materials
Seal face: Silicon carbide(01), Carbon risin (06),
Mating face: Silicon carbide(01), Aluminium oxide(05),
Secondary seals: FKM(C), NBR(A),
Combination: 0101C15, 0605A15
