Access Control Card Reader
- Certification
-
- Award
-
- Shipping
-
- Lead Time3 ~ 10days
- Modes of Transport FOB
- Products Shipped From Incheon
- Payment
-
140+ Global Payments, trusted and secure payment provided by PayVerse.
Learn More
- Quantity
- MOQ : 10 Sets
Detailed Description

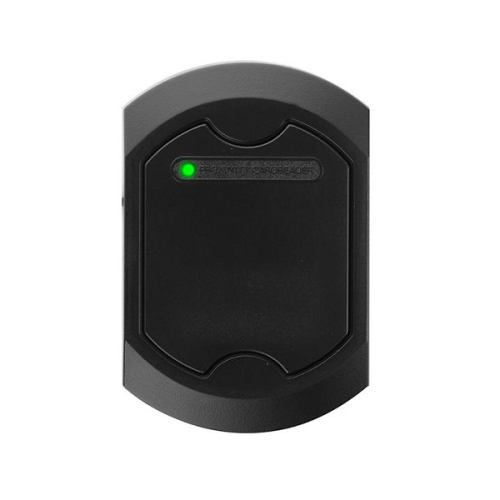

The FR260 has built-in RF card recognition function and control function, and it can be connected to PC(GuardEyes installed) via TCP / IP network communication for access control and simple time and attendance management.
If needed, you can install and use it alone without an Internet connection.
To install the FR260 as an access control system, additionally operating programs, locking devices, and access buttons are required.
Usage
Areas requiring restricted access and simple Time and Attendance management such as Government offices, Offices, Factories, Buildings, Laboratories, and Financial institutions
FR260 Product Certification Status
-. KC, CE, FCC certified
Product Specifications
| Read Range (Mifare card/EM card) | 4cm / 10cm (based on ISO card) |
| User key registration /event storage | Max. 10,000 pcs/10,000 pcs |
| Door open time (adjustable by network) | five seconds (fixed) |
| Door lock selection | Power Fail Safe or Power Fail Secure |
| Exit button | Input of one exit button (operable at LOW) |
| Output Type | EM card: 26 bit (Mifare card: 32bit) Wiegand |
| LED/buzzer | 2 Color LEDs(red, green) / Piezo buzzer |
| Electric power | DC 12V, Max. 150mA(door lock excepted) |
| User environment | -20℃ ~ +65℃, 0~90% absolute humidity |
| Color / size(WxHxD) / Weight | Black dull luster / 79x121x18mm / 180g |
Function in GuardEyes program with FR260
-. Function to register, save, change and delete user ID/card/password
-. Function to display user's access sign in real time
-. Function to store and recover a list of registered users and installed controllers in preparation for pc
failure/replacement
-. Function to save registered user and installed product list as an Excel file
-. Function to remotely control doors (temporary opening, closing, etc.)
-. Emergency notification function for emergency occurrence of forced breakage/forced opening of door
-. Alarm function when installing fire detector
-. Limit access to the door by hour and simple time attendance management function
-. Restrict access to door according to the given registered user's position or role
-. Also includes many other setting functions. End
