[ Specification ]

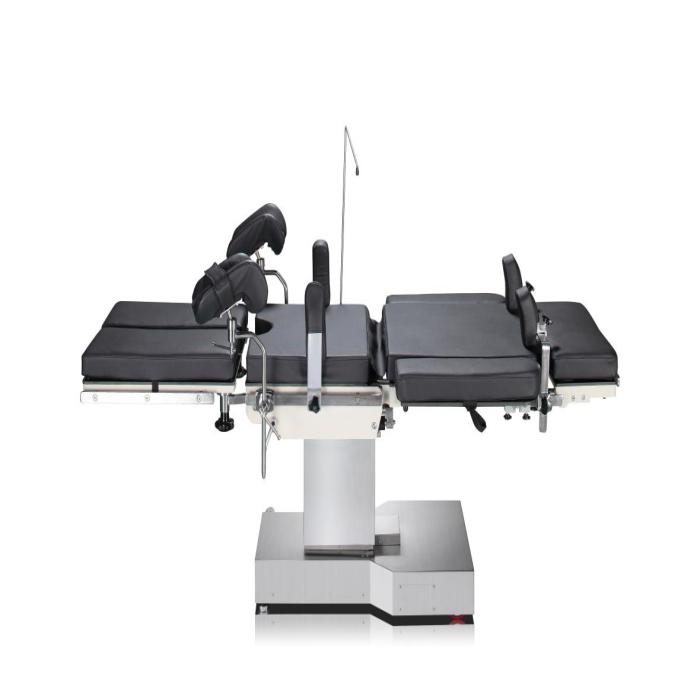

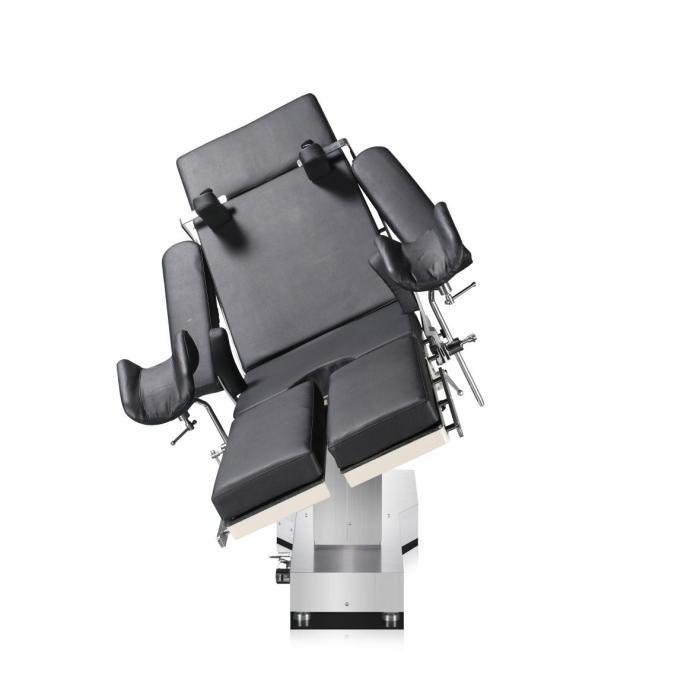

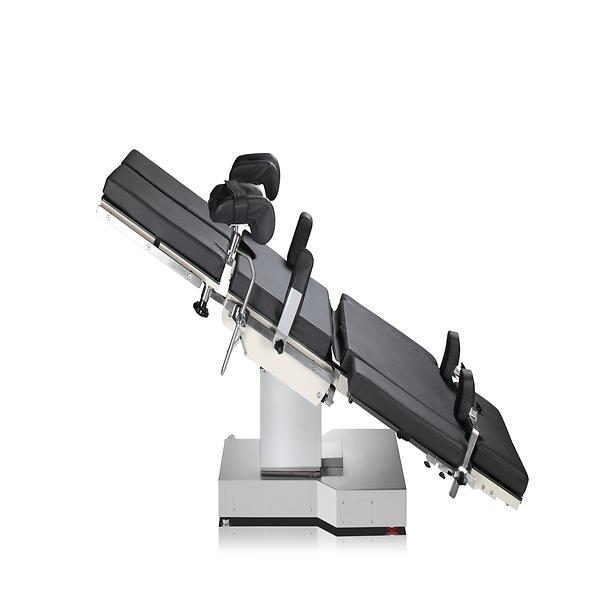

YNK-OT series is designed to provide optimal conditions and environment for different surgery performance.

It will help surgeon to proceed comfortably and concentrate by proper movement and position.

Easy clip system is applied for arm rest section which is mostly used.

Also back up control high-quality seat is used because the most important thing of our YNK-OT series is to be comfortable for the patients.

We will do our best on developing our system for surgeon and patient satisfaction.


[ Company introduction ]

We, Yuil Trading Corporation manufacture our own medical equipment & devices.

We have been manufacturing & supplying ultrasonic cleaning system to general hospitals for over 15years.

Since 2010 we have been manufacturing & supplying surgery equipment & devices.

Above this, we participates in various overseas business like ODA Projects, international bidding and sales & export of medical equipment.

[ Features ]

- Electric hydraulic system

- Sliding functions are built in for C-arm(OT100S)

- Soft pad, Hygiene

- Remote control hand switch

- Ergonomic and comfortable design

- Easy of operation

[ Specification ]

1. Dimension(Table top): 510mm(W) X 2050mm(L)
2. Height adjustment : 700mm ~ 970mm
3. Trendelenburg : 30° / 30°
4. Lateral tilt : 25° / 25°
5. Head section : Up 35° / Down 90°
6. Back section : Up 75° / Down 35°
7. Leg section : Up 25°, Down 90°
8. Table top sliding : 300mm
9. System : Electro-Hydraulic
10. Power source : 220V, 50/60Hz
