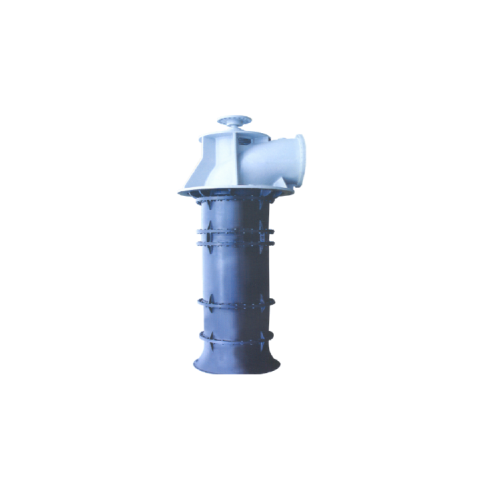

Model name : GVM

Discharge bore : 900mm

Usages and Applications

- General industries / factory : For water intake, supply, drainage

- Thermal power plant : For cooling water

- Iron works  : For circulation, drainage, scale pit

- Sewage system : For water influent, effluent

- Water works : For water intake, supply

- Agriculture : For water pumping, water supply

- Others : For drainage of the dock, drainage of the river

Design and Operation Features

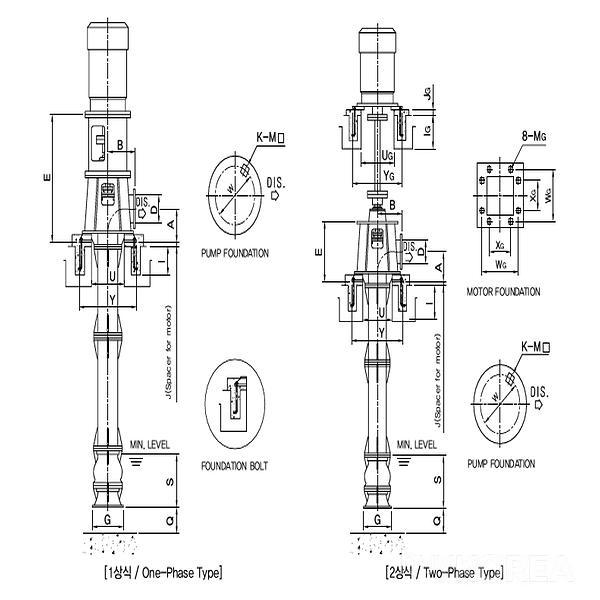

- Installation  : It has various installation methods to meet customer’s requirement

- Rotation  : C.W  when viewed from the driver

- Flange rating  : KS 10Kg/㎠ FF

- Installation place  : Indoor and outdoor

- Sleeve bearing  : Rubber (water imbrication), bronze (grease lubrication)

- Thrust bearing  : Ball or roller bearing (oil lubrication)

- Impeller  : Open or semi open type having blade of 3dimension

Standard Specification

- Total head        : 4~ 15m

- Capacity          : 10~ 1000㎥/min

- Temp             : 0~ 40℃

- Bore.              : 350mm~ 2500mm

※ The out of the above range can be supplied according to the customer’s order placement.
