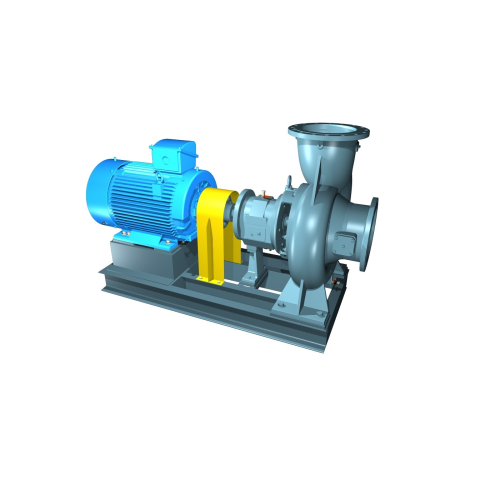

Model name : GCP

Suction bore : 400mm

Discharge bore : 400mm

Design & Structure Features

- We used the three-dimensional design techniques for the ideal water flow in the impeller.

- Stuffing Box adopts the KS B 7501(ISO 3069), the mounting of the Mechanical Seal is easy and convenient maintenance.

- Back Full-out gives easy and convenient maintenance.

- The central located Discharge Bore gives stability and balance of pump during operation.

- The vibration and noise analysis give optimal products.

Option

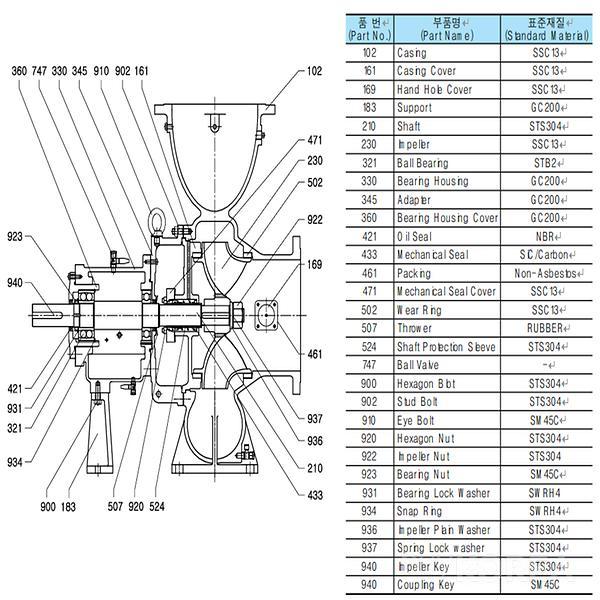

- Non-standard material (See the Option in the Structural Drawing)

- Type of Shaft Seal

- Non-standard coupling

- Attachment of meters

- Color & thickness of paints
