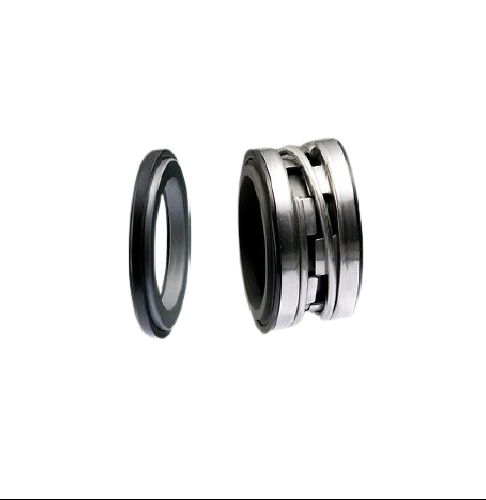

STRB2100 has a idiosyncratic flexibility of rubber bellows. Also it’s a compact single spring rubber bellows seal.

Specific Features of STRB2100
• Unitized construction allows for fast and easy installation and replacement.
• Innovative bellows design is pressure-supported and will not crease or fold under high pressure.
• Single spring keeps seal faces closed and properly tracking during all phases of operation.
• Positive drive through clutch will not slip or break free during upset conditions.

Operating Capabilities
• Temperature : -20~90℃
• Pressure : Up to 1.2 MPa
• Speed : 15m/sec
• Axial movement : ±1.0 mm

Materials
• Seal Face
- Silicon carbide
- Resin Imp. Carbon
