Pulverizer / Coal Mill Castings, Forgings & Weldments

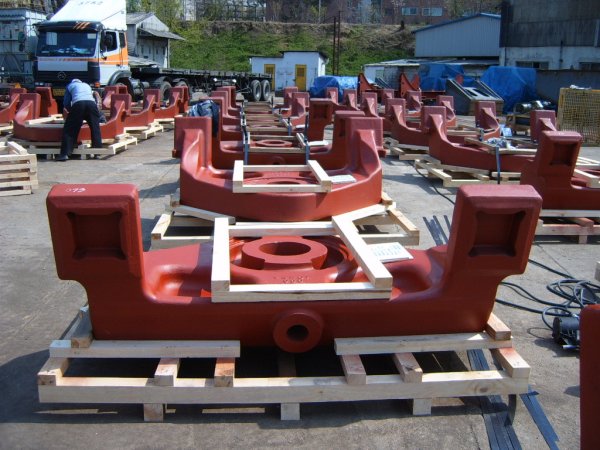

MPS Yoke Casting

     * Material: ASTM A319 CL2 TYPE C

     * Weight: 10 ~ 30 Ton

MPS Pressure Frame

    * Material: ASTM A216 WCB

    * Weight: 4 ~ 5 Ton

MPS Spring Frame

   * Material: ASTM A36

   * Weight: 3.5 ~ 5 Ton

MPS Roller Bracket Casting

   * Material: ASTM A48 CL35S or A216 WCB

   * Weight: 1.5~3.5 Ton

MPS Roll Wheel Casting

   * Material: ASTM A48 CL35S

   * Weight: 1.3~ 2.5 Ton

CE-Type Mill / Raymond Mill Castings & Forgings

Steel Bowl - Casting

   * Material: ASTM A27 70-40

   * Weight: 4000 ~ 5500 KG

Journal Shaft - Forging

   * Material: AISI 1025

   * Weight: 900 KG

Lower Journal Housing - Forging

   * Material: ASTM AISI 1030

   * Weight: 1500 KG

Upper Journal Housing - Casting

   * Material: ASTM A48 CL30

   * Weight: 500 KG

Trunnion End - Casting

   * Material: ASTM A48 CL30

   * Weight: 200 KG

Grinding Roll - Casting

   * Material: ASTM A216 WCB

   * Weight: 500 KG

EL Pulverizer(Mill) Castings

EL Yoke

   * Material: ASTM A27 70-36 CL1

   * Weight: 3.5 Ton

EL Top Bearing Plate

   * Material: ASTM A48 CL35S

   * Weight: 4 Ton

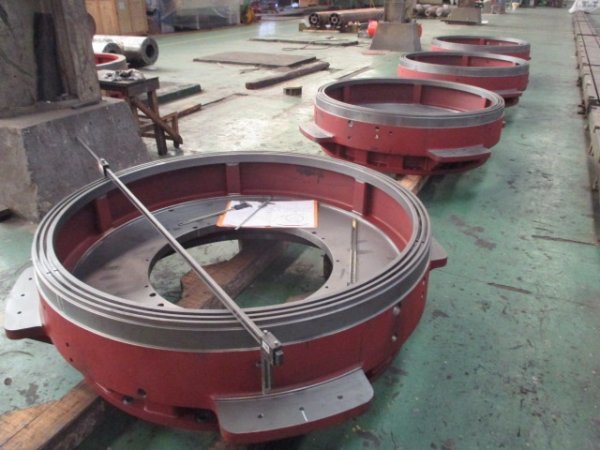

EL Bottom Ring Seat with Hardfacing

   * Material: ASTM A216 WCB

   * Weight: 2 Ton

EL Gear Center

   * Material: ASTM A536 60-40-18

   * Weight: 1.4 Ton

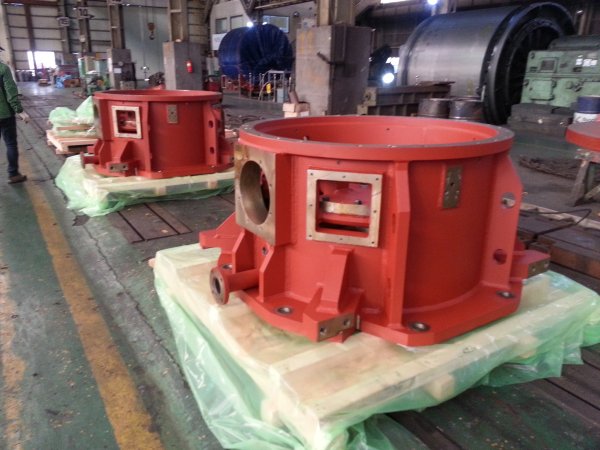

EL Gearbox Housing

   * Material: ASTM A48 CL35

   * Weight: 6 Ton

EL Spider

   * Material: ASTM A45 Cl35

   * Weight: 500 KG

Wear Resistant Castings

Segment Table Cover

   * Material: ASTM A532 CL2

   * Hardness: 585~650 Hb

Wear Block

   * Material: ASTM A532 CL2

   * Hardness: 585~650 Hb

Wear Plate

   * Material: AISI E52100

   * Hardness: 425 ~ 475 Hb-

Wear Shoe

   * Material: ASTM A48 CL20

   * Hardness: Max. 150 Hb

Collecting Tube

   * Material: ASTM A532 CL1

   * Hardness: Min. 500 Hb

Collection Tube Vane

   * Material: ASTM A532 CL1

   * Hardness: Min. 500 Hb
