- PID
- 3033770

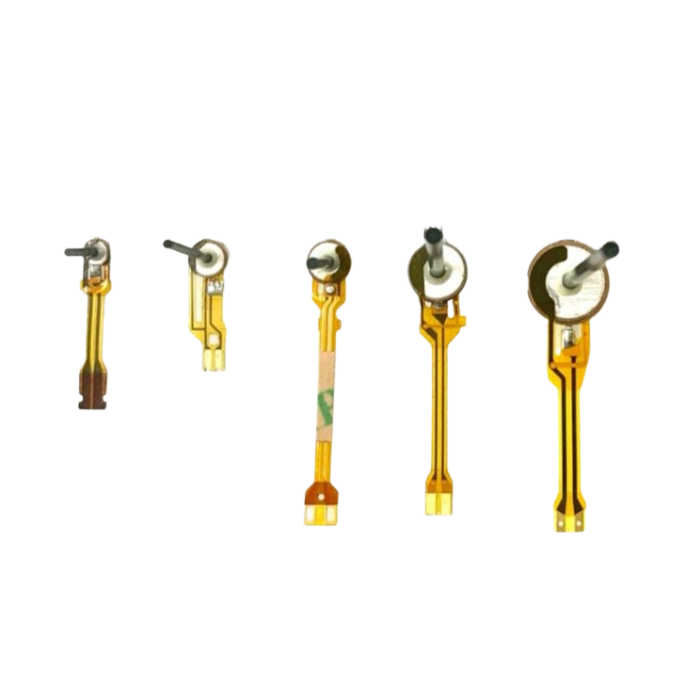

Piezoelectric Actuator
TULA(Tiny Ultrasonic Linear Motor)
This is an ultra-small ultrasonic motor made using piezoelectric ceramics. It can create a stroke of up to 20mm according to the desired specifications, and it is a linear motor with excellent response, taking up minimal space, and having little impact on the usage environment.
- Certification
-
- Award
-
- Shipping
-
- Type of Freight AT
- Modes of Transport EXW,FOB
- Payment
-
140+ Global Payments, trusted and secure payment provided by PayVerse.
Learn More
- Quantity
- MOQ : 5 Pieces
Product Summary
• Brand name: TULA
• Model Number: TULA
• Material: Piezoelectric ceramics are attached to copper alloy elastic body to connect the circuit, and then a shaft made of carbon fiber is attached
• Usage: Can be used as a driving source for all sub-drive modules
• Application: All industries
• Feature: Simple structure, quiet. Fast response, less restrictions on commercial environments. Takes up less space.
• Size/Dimension: Available in a variety of sizes depending on user needs, from 7mm for 2.5 pie to 40mm for 7.6 pie
• Color:
• Warranty: 1,000,000 cycles in a typical environment
• Certification: ISO 9001, 14001
Detailed Description
TULA(Tiny Ultrasonic Linear Motor)
- Features
● Simple structure
● Very high precision
● Low power consumption

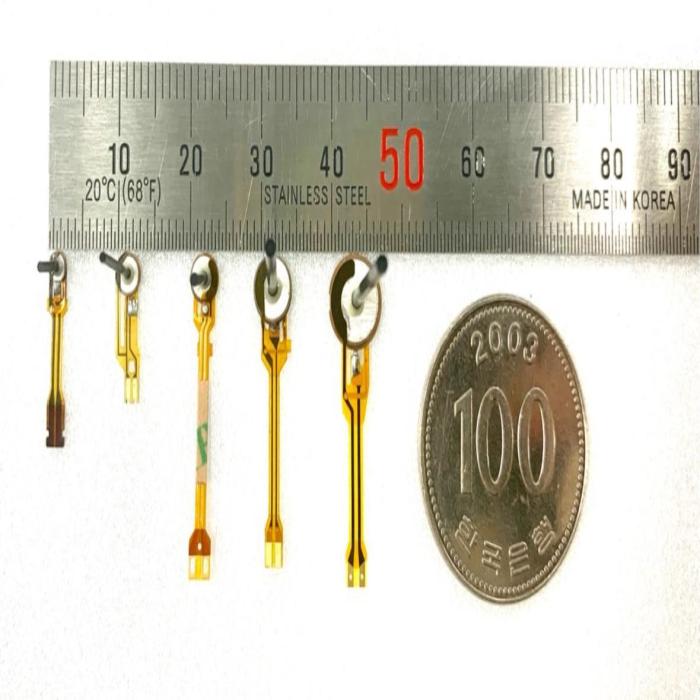

● Very small size (dia. 4mm), Very light weight
● No noise, Quick response time
● Variable stroke
- Application
● Zoom, AF of camera and mobile phone
● Optical Image Stabilizer (OIS) of camera
● Stage module
● ICR(infrared cut removal) of CCTV
● Medical equipments, MEMS, Optical equipments
- Company Name : Piezoelectric Technology Co., Ltd.
- Business Scope : Manufacture and sales of Piezoelectric Actuator
- President : Seong-il, Yoon
- Establishment : 2000. 11
- Address : 501~503 Sinnae Techtown, Sangbong-dong 485, Jungrang-gu, Seoul, Rep of Kor
- Web : www.piezo-tech.com
- Product : Piezoelectric Actuator, Piezoelectric Ultrasonic Motor, Driver
