■ Applications

Tribocharging is a typical ESD source and induced field from insulators must be controlled in EPA(ESD protected area). Process required insulators are commonly used in many places and should be neutralize by ionization systems.

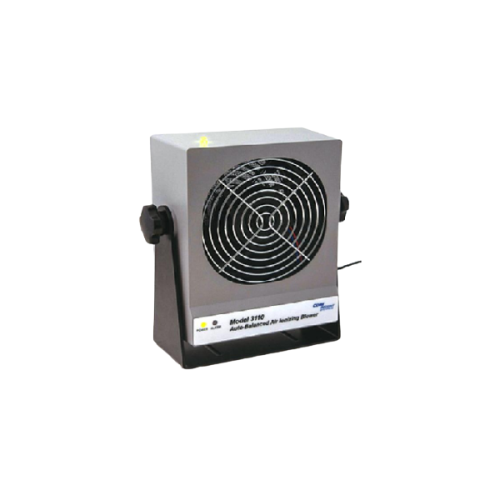

CoreStat auto-balanced technology, Model 3110 has designed versatile applications for semiconductor backend, printed circuit board assembly and general electronics applications. Model 3110 ionizing blower doesn’t required regular based calibration and intrinsically maintain low offset voltage within a spec.

Facility monitoring system interface will allow real time ionizer status monitoring and give visual(LED) & audio(buzzer) alarms when HV power fail or Balance fail

■ Specifications

  Input Voltage 24V DC, 13W (Maximum)
  Ion Emission Steady-State DC Technology
  Balance < ±20V
  Discharge (±1000V to ±100V) less than 2 seconds at 30cm
                                                       less than 4 seconds at 60cm
  Air flow 140 CFM (Maximum 151 CFM)
  Emitter Point Tungsten 99.99%
  Alarm Function Visual(LED), Audio(Buzzer) HV Power fail, Balance fail
  Output Monitoring FMS Interface
  Material Ionizer body- ABS (Gray)

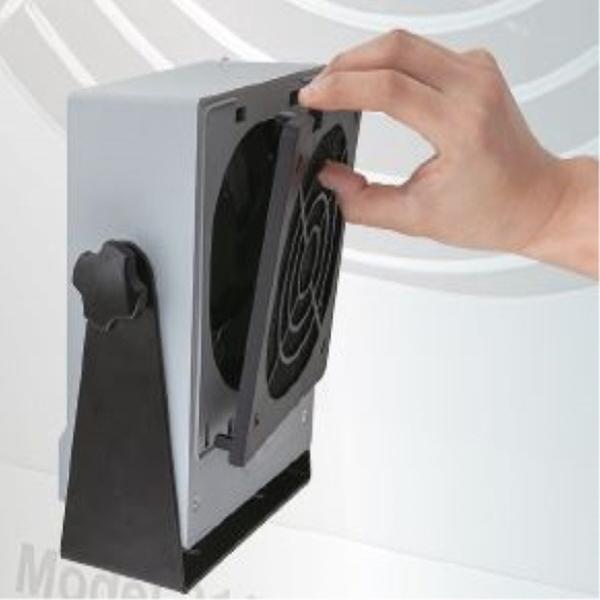

                  Filter cover- ABS (Black)
                  Bracket- Aluminum
  Operating Environment Temperature : 15~35℃, Humidity : 35~85% RH
  Dimensions(W×H×D) 148×185×76.6 mm (with bracket 188*204.5*76.6mm)
  Weight 980g (with bracket)
  Warranty 1year
