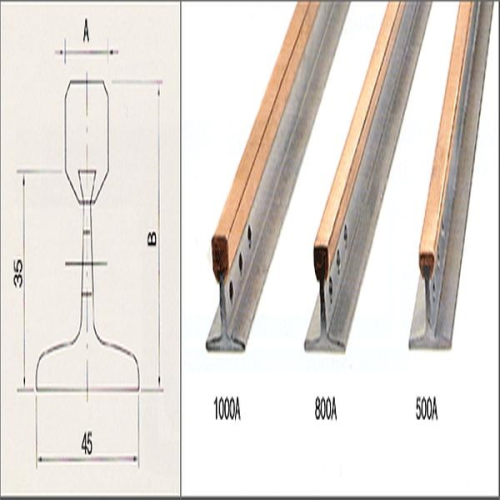

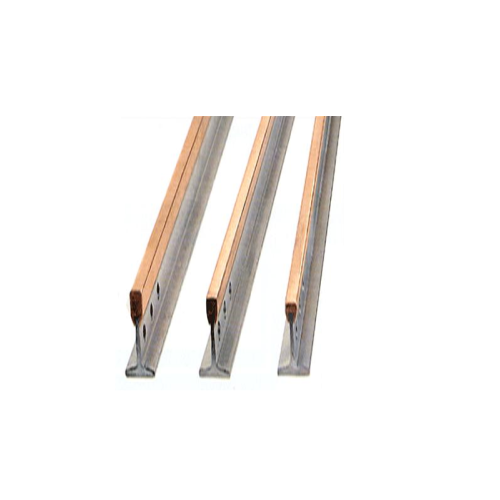

* Crane Busbar System (Copper Headed Steel Rail Type) *

1. Type
- Copper Headed Steel Rail Type

2. Features
- Superb quality crane bar used as a power feeding system for heavy duty of overhead cranes.
- Rated current (Amperage) ranging from 300 amperes up to 3,200 amperes enough to satisfy the heavy duty of capacity for overhead cranes running especially at steel mills exposed to extremely high temperature.

3. Specifications of Crane Busbar by Model:
(Model Number / Amperage / Materials / Weight(kg) / Length(mm)
* ES-STB-03 / 300 / SS41(rail base)+Copper(head) / 24 / 6000
* ES-STB-05 / 500 / SS41(rail base)+Copper(head) / 26 / 6000
* ES-STB-06 / 600 / SS41(rail base)+Copper(head) / 28 / 6000
* ES-STB-08 / 800 / SS41(rail base)+Copper(head) / 30 / 6000
* ES-STB-10 / 1000 / SS41(rail base)+Copper(head) / 36 / 6000
* ES-STB-12 / 1200 / SS41(rail base)+Copper(head) / 41 / 6000
* ES-STB-15 / 1500 / SS41(rail base)+Copper(head) / 51 / 6000
* ES-STB-18 / 1800 / SS41(rail base)+Copper(head) / 53 / 6000
* ES-STB-20 / 2000 / SS41(rail base)+Copper(head) / 58 / 6000
* ES-STB-25 / 2500 / SS41(rail base)+Copper(head) / 66 / 6000
* ES-STB-30 / 3000 / SS41(rail base)+Copper(head) / 77 / 6000
* ES-STB-32 / 3200 / SS41(rail base)+Copper(head) / 82 / 6000 /

4. A complete set of Crane Busbar System
4-a) Crane Busbar (6 meters/piece)
* Details specified as above in Item No.3 Specifications.
4-b) Joint keeper
- Brass/material
* EC-SJK-01/below 300A
* EC-SJK-02/500A-600A
* EC-SJK-03/800A-1000A
* EC-SJK-04/1200A
* EC-SJK-05/1500A
* EC-SJK-06/1800A
* EC-SJK-07/2000A
4-c) Expansion section
- Brass/material
- 200mm/length
* EC-SEC-03/300A
* EC-SEC-05/500A
* EC-SEC-06/600A
* EC-SEC-08/800A
* EC-SEC-10/1000A
* EC-SEC-12/1200A
* EC-SEC-15/1500A
* EC-SEC-18/1800A
* EC-SEC-20/2000A
4-d) Hanger clamp with insulator
* EC-HC-1/Porcelain/1800g
* EC-HC-2/Epoxy/1000g
* EC-HC-3/Porcelain/2200g
4-e) Power feeder
* EC-SPF-01/Brass/300A-1000A
* EC-SPF-12/Copper/1200A
* EC-SPF-15/Copper/1500A
* EC-SPF-18/Copper/1800A
* EC-SPF-20/Copper/2000A
4-f) Locating clamp
* EC-SLC-001/SS41/190g
* EC-SLC-002/Brass/360g
4-g) Pantograph collector, etc.
* EC-PG-001/300A/AC600V/Single shoe & horizontal installation type
* EC-PG-002/500A-800A/AV600V/Double shoe & horizontal installation type
* EC-PG-005(A)/1000A-2000A/AC600V/Double shoe & vertical installation type

* EC-PG-005(B)/1000A-2000A/AC6,600V/Reinforced insulator used for extremely high voltage/Double shoe & vertical installation type

5. General Terms & Conditions
5-a) Country of Origin: Korea (South)
5-b) Payment: By telegraphic transfer (T/T)
5-c) Packing: By wooden box type
5-d) Delivery: Three (3) weeks on FOB Korea basis
5-e) Quality Certifications: ISO 9001
5-f) Supplier: Kumoh Corporation, Korea
5-g) Product catalogue: Available upon request.
