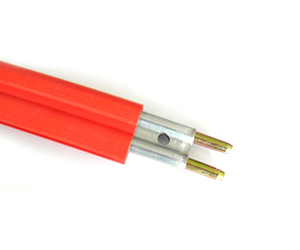

** Crane Busbar System (Insulated Peanut Type) **

1. Type

- Insulated Peanut Type

2. Components to consist of a complete set of crane busbar System

* Insulated crane busbar,  End cover,  Hanger Clamp,  Joint Cover,  Joint keeper,  Expansion Section,  Power Collector,

Hanger with Insulator, Power Feeder, etc.

* Used as one of power feeding systems fitted with light & medium duty of overhead

cranes traveling at manufacturing shops, warehouses, material storage yards, etc.

3. Technical Specifications ;
3-a) Crane Busbar by Amperage;
* Amperage / Length(mm) / Weight(g) / Standard Type(70 C.) / Special Type(110 C.) / Connection Method *
* 60 A / 3,000 / 2,400 / ET-1-007 / ET-2-007 / Pin connection
* 90 A / 3,000 / 2,750 / ET-1-001 / ET-2-001 / Pin connection
* 160 A / 3,000 / 3,000 / ET-1-009 / ET-2-009 / Pin connection
* 200 A / 3,000 / 3,000 / ET-1-003 / ET-2-003 / Pin connection
* 300 A / 3,000 / 3,150 / ET-1-005 / ET-2-005 / Pin connection
3-b) Kinds of Materials by Amperage;
* Amperage / Materials Used / Direct Current Resistance(Ohm/m) *
* 60 A / Galvanized Steel(100%) / 0.0018
* 90 A / Galvanized Steel(85%) + Copper(15%) / 0.00032
* 160 A / Copper(50%) + Stainless Steel(50%) / 0.00032
* 200 A / Galvanized Steel(50%) + Copper(50%) / 0.00032
* 300 A / Copper(100%, Hollow) / 0.00019
** Note: 160A crane bar is of acidproof type.

4. Technical Specifications of Major Components;
4-a) Power Feeder
* 60A, 90A, 160A & 200A(Standard Type:70 C.) / EP-1-001 / 140g / 50m-installation spacing for 60A,90A and 160A
* 300A(Standard Type:70 C.) / EP-1-002 / 1000g / 100m-installation spacing for 200A & 300A
4-b) Expansion Section
* 90A & 160A: Every 50m for installation of expansion section
* 200A & 300A: Every 35m for installation of expansion section. Gap between sections:

13mm/30 degrees in C, 19mm/20 degrees in C, 25mm/10 degrees in C.

4-c) Hanger Clamp
* For indoor Use / Galvanized Steel / 110g / EH-1-001
* For Outdoor Use / Gal Steel+Epoxy Insulator/ 210g / EH-2- 001
4-d) Joint Cover
* 60A to 300A / Standard 70 C / 25g / EJC-1-001
4-e) Joint Keeper
* 160A, 200A & 300A / Copper / 10g / EJC-1-001
4-f) Power Collector for Hoist Type(H-type)
* 60A / For straight & curve / Min.1250mm for curve radius / ECH-1-002 / 820g

* 90A / For straight / ECH-1-003 / 835g

4-g) Power Collector for Crane Type(C-Type)
* 60A / For straight & curve / Min.1250mm for curve radius / ECC-1-002 / 1,350g
* 90A / For straight / Min.1250mm for curve radius / ECC-1- 003 / 1,370g
* 160A / For straight / Min.1250mm for curve radius / ECC-1- 004 / 1,650g
* 200A / For straight / Min.1250mm for curve radius / ECC-1- 005 / 1,700g
4-h) Power Collector for Tandem Type(AL-Type)
* 160A / For tandem / ECT-1-001 / 2,740g

5. General Terms & Conditions
5-a) Price
- Our price is available upon receipt of your inquiry specifying a) Quantity (Length of Bay: Distance of Traveling Runways),

b) Number of Rows (3 or 4 rows),

c) Number of Cranes traveling on the same railways at the same bay, etc.
5-b) Delivery: Two (2) weeks after signing the contract on the basis of FOB Korea.
5-c) Payment: By Telegraphic Transfer (T/T)
5-d) Packing: By wooden box type

5-e) Country of Origin: Republic of Korea (South Korea)

5-f) Supplier: Kumoh Corporation, Korea
