Crane Busbar System-Insulated H Bar Type
- Award
-
- Shipping
-
- Lead Time60 ~ 90days
- Modes of Transport CFR,CIF,EXW,FOB
- Products Shipped From Busan
- Payment
-
140+ Global Payments, trusted and secure payment provided by PayVerse.
Learn More
- Quantity
- MOQ : 10 Pieces
Detailed Description

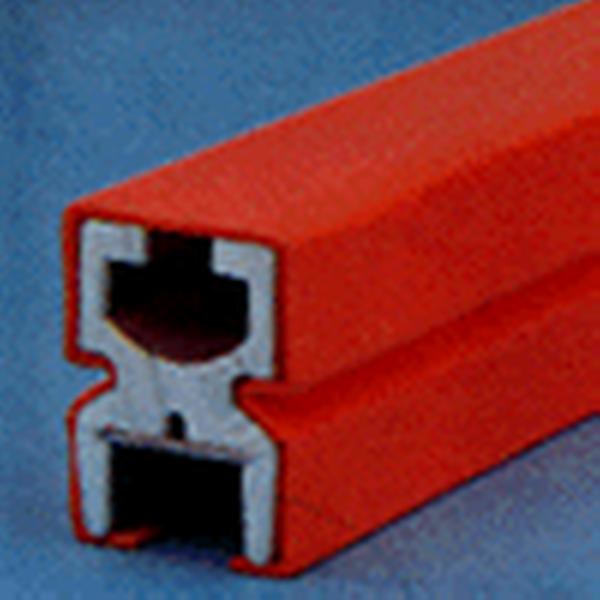

** Crane Busbar System (Insulated H-Bar Type) **
1. Features
* Insulated H-Bar type of crane busbar system has been designed to satisfy heavy duty overhead crane especially exposed to high humidity, and its materials consist of aluminum and stainless steel and/or copper.
* Amperage available with Insulated H-Bar Type ranges from 500A upto 1500A, which is applicable to each overhead crane required by the customer.
2. Specifications
a) H-Bar/6m/pc
* EC-H-5 / 500A / Aluminum+Stainless Steel
* EC-H-8 / 800A / Aluminum+Copper
* EC-H-10 / 1000A / Aluminum+Stainless Steel
b) Joint Keeper
* EC-HJK-005 / 500A / Brass
* EC-HJK-008 / 800A / Brass
* EC-HJK-010 / 1000A / Brass
c) Joint Cover
* EC-HJC-005 / 500A-800A / P.V.C
* EC-HJC-010 / 1000A / P.V.C
d) Hanger Clamp
* EC-HHC-001 / 500A-1000A / P.V.C
* EC-HHC-002 / 500A-1000A / Steel+Epoxy
e) Expansion Section
* EC-HES-005 / 500A / Brass
* EC-HES-008 / 800A / Brass
* EC-HES-010 / 1000A / Brass
f) Power Feeder
* EC-HPF-001 / 500A-1000A / Copper
g) Power Collector
* EHT-001 / 500A / Aluminum / 1.5kg
* EHT-002 / 1000A / Aluminum / 3.0kg
3. General Terms & Conditions
* Payment: By Telegraphic Transfer (T/T)
* Delivery: Three (3) weeks on FOB Korea Basis
* Packing: By wooden box type of packing
* Country of Origin: Republic of Korea (South Korea)
* Supplier: Kumoh Corporation, Korea
* Product Catalogue: Available upon request
1) Copper Headed Steel Rail Type (300A-3200A): For heavy duty steel mill cranes.
2) Insulated Peanut Type (60A-300A): For overhead cranes at general manufacturing shops.
3) Insulated UB-Bar Type (200A-2000A): For heavy duty overhead cranes at heavy industries companies.
4) Insulated Al-Heavy Type (500A-1500A): For heavy duty overhead cranes at shipbuilding yards exposed to chemical dust.
5) Insulated H-Bar Type (500A-1000A): For heavy duty overhead cranes exposed high humidity.
(* Note: Product catalogues for each type are available upon request)
