Kinds of Power Collector As A Part of Crane Busbar

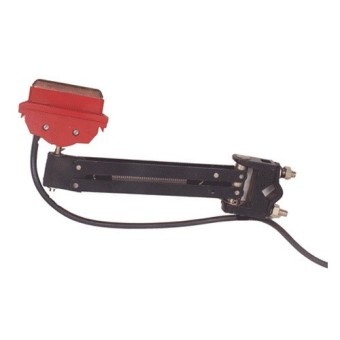

1. For Insulated Peanut Type of Busbar by Model Number

1-a) ECC-1-002: 60A (1,350gr/pc)

1-b) ECC-1-003: 90A (1,370gr/pc)

1-c) ECC-1-004: 160A (1,650gr/pc)

1-d) ECC-1-005: 200A (1,650gr/pc)

1-e) ECC-1-006: 300A (1,750gr/pc)

2. For Copper Headed Steel Rail Type of Busbar by Model Number

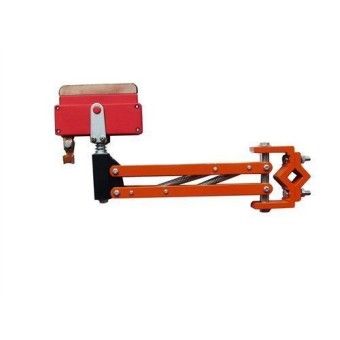

2-a) EC-PG-001 (Pantograph)

– Single Shoe, Horizontal Installation Type, 10kg/pc

2-b) EC-PG-002 (Pantograph)

– Double Shoe, Horizontal Installation Type, 15kg/pc

2-c) EC-PG-005 (Pantograph)

– Double Shoe, Vertical Installation Type, 22kg/pc

3. For Insulated Al-Heavy Bar Type of Busbar by Model Number

3-a) ECPC-AL-1001 (500A) / Aluminum

3-b) ECPC-AL-1002 (1000A) / Aluminum

3-c) ECPC-AL-1003 (1500A) / Aluminum

4. For Insulated UB-Bar Type of Busbar by Model Number

4-a) ECCC-UC-001 (300A S) / Aluminum

4-b) ECCC-UC-002 (300A T/D) / Aluminum

4-c) ECCC-UC-003 (500A S) / Aluminum

4-d) ECCC-UC-004 (500A T/D) / Aluminum

5. For Insulated H-Bar Type of Busbar by Model Number

5-a) EHT-001 (500A) / 1.5kg/pc / Aluminum

5-b) EHT-002 (1000A) / 3.0kg/pc / Aluminum
