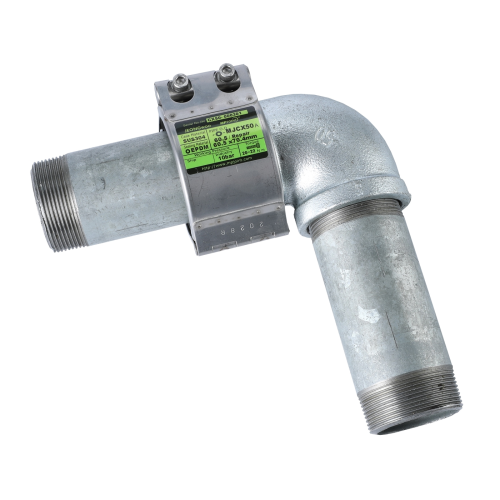

MJCX 20~50A

The connecting part of the socket method is half thick compared to the other part of the pipe.

So, it is weak against vibration or impact. MJCX protects the weak part and also covers up damaged ones.

Application

- Industries:

water / oil & gas / shipbuilding / civil engineering & construction / general industry /

machinery & equipment/maintenance of pipeline

- Pipe Materials:

steel / stainless steel / cast iron / ductile iron / copper / concrete / Cu-Ni / aluminum /

PVC / PPR / PE / GRE / GRP, etc.

* pipes of different material can be connected by coupling as long as they have the same outside diameter

Product Characteristics

* Assembly-type saves work time.

* Applicable to various pipe materials. Even connects pipe of a different material. (e.g. steel pipe + PVC pipe)

* Using a (torque) wrench to install eliminates worry about fire.

* No preprocessing is required at pipe ends.

* Rubber gasket accommodates vibration, impact, noise, angular deflection, and distance between pipe ends. This makes couplings seismic design.

* Installation is done on one side. It enables products to be stored or work to be done in a narrow area.

* Stainless steel design is much lighter than cast iron product and reduces the load on pipes.

* Grip-type couplings resist axial movement.

* Slip (flexible) type couplings allow pipe expansion and contraction.

* Repair clamps provide semi-permanent repair with speed and no downtime.

* Couplings can be assembled and disassembled several times.

Part Material

- Casing: SUS304, SUS316

- Slide: SUS304, SUS316

- Bolt: SUS304, SUS316, SCR420B, SCM435 galv.

- Bar Washer/Nut: SUS303F, SUS304, SUS316, S45C galv.

- Grip Ring: SUS301H, SUS304H (grip types only)

- Gasket: EPDM, NBR, Silicone, FKM(Viton)

- Strip Insert: SUS304, SUS316 (option for straight pipe coupling & clamp)
