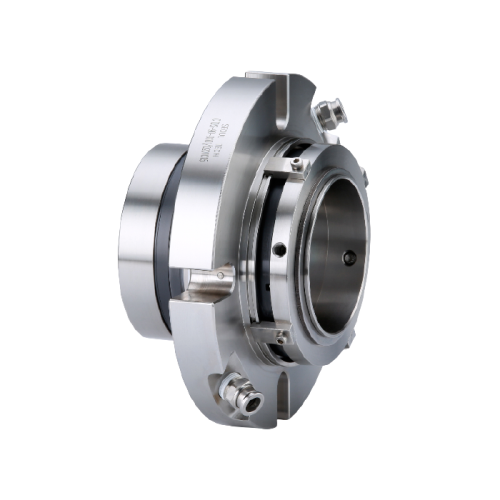

The CTDS is a double compact pusher seal design combined with cartridge installation simplicity for wide ranges of services and industries, such as chemical processing, water treatment and sewage plants, and pulp and paper applications.

Specific Features of CTDS
• Preset cartridge design speeds installation, eliminates change of installation error, easy to repair.
• Stationary mounted seal, no shaft or sleeve wear, flexible
components isolated from shaft vibration and the effects of shaft deflection.
• Springs on atmospheric side of the seal prevents clogging of spring pockets by particulates in media.
• Pressure balanced seal face technology for reduced power consumption
• Knurled sleeve plus bi-directional flow inducer for improved barrier flow
• Performs as a double or tandem
• Flush, Quench and drain connections as standard.
• Slotted gland plate accommodates varying bolt circle diameters.


Operating Capabilities

• Temperature : -30~200℃
• Pressure : 2.0 MPa
• Speed : 15m/sec
Materials
• Seal Face
-Silicon carbide
-Tungsten carbide
-Antimony Imp. Carbon
-Resin Imp. Carbon.
-Special Steel
Applications
• General industry
• Process industry
• Chemical industry
• Pulp and paper industry
• Water and sewage water Technology
• Chemical pumps
