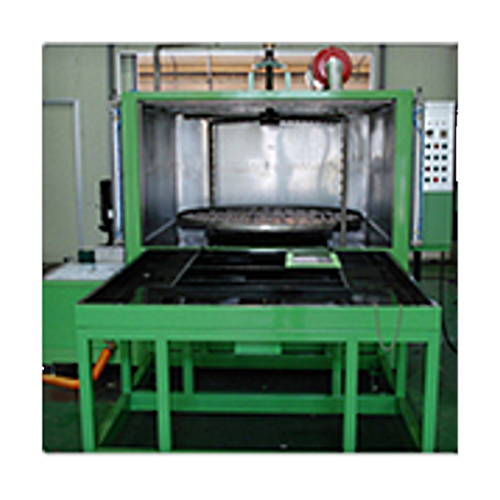

Automatic Ultrasonic Cleaning System Turn Table Type
- Certification
-
- Award
-
- Shipping
-
- Modes of Transport FOB
- Payment
-
140+ Global Payments, trusted and secure payment provided by PayVerse.
Learn More
- Quantity
- MOQ : 1 Sets
Detailed Description
The auto ultrasonic washer is a washing equipment that safely and
precisely cleans all objects by applying various efficient automation
methods to the operation principle of the multi forming washer.
Automation methods include the following.
1. Chain conveyor method
2. Mesh belt method
3. Rotary conveyor method
4. Pneumatic and hydraulic application method
5. Automation method
| Product Model | HS - 200B |
|---|---|
| Maximum Washing Weight | 630Φx400Hx100kg |
| Pump Discharge Pressure | 200ℓ/MIN 3kg/CM2 |
| Pump Motor | 2.2KW |
| Heater Capacity | 3kw×2=6KW |
| Tank Capacity | 150ℓ |
| Total Electricity Capacity | 3 phase 200V 6KW |
| Dimensions | 1575(W)×1050(D)×1450(H) |
| Product Model | HS - 300B |
|---|---|
| Maximum Washing Weight | 970Φx650Hx250kg |
| Pump Discharge Pressure | 350ℓ/MIN 3kg/CM2 |
| Pump Motor | 3.7KW |
| Heater Capacity | 8KW |
| Tank Capacity | 260ℓ |
| Total Electricity Capacity | 3 phase 200V 8KW |
| Dimensions | 1775(W)×1345(D)×1980(H) |
| Product Model | HS - 400NL |
|---|---|
| Maximum Washing Weight | 1170Φx650Hx500kg |
| Pump Discharge Pressure | 350ℓ/MIN 3kg/CM2 |
| Pump Motor | 3.7KW |
| Heater Capacity | 63kw×2=12KW |
| Tank Capacity | 260ℓ |
| Total Electricity Capacity | 3 phase 200V 12KW |
| Dimensions | 2140(W)×1550(D)×1745(H) |
| Product Model | HS - 500N |
|---|---|
| Maximum Washing Weight | 1370Φx850Hx1000kg |
| Pump Discharge Pressure | 500ℓ/MIN 3.4kg/CM2 |
| Pump Motor | 5.5KW |
| Heater Capacity | 8kw×2=16KW |
| Tank Capacity | 460ℓ |
| Total Electricity Capacity | 3 phase 200V 16KW |
| Dimensions | 2415(W)×1765(D)×2450(H) |
