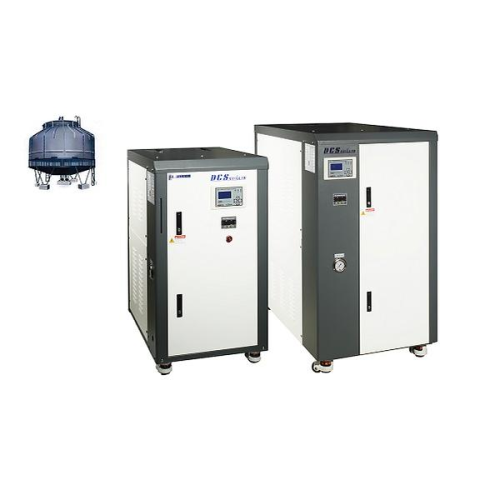

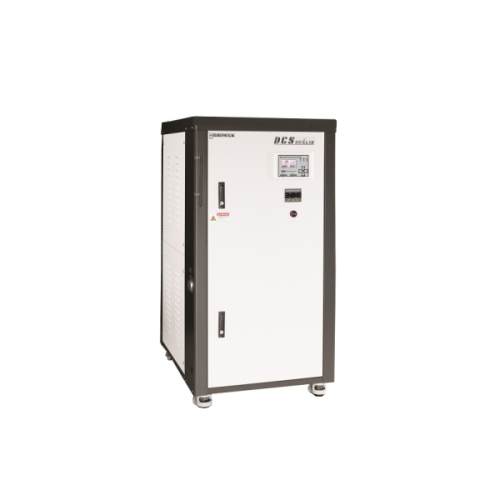

Water Cooled Type Water Chiller
Water-cooled type water chiller has been designed to cool abilities of the maximum efficiency
by high precision and high-tech. control method.
- Certification
-
- Award
-
- Shipping
-
- Lead Time10 ~ 30days
- Type of Freight Proceed after consultation
- Modes of Transport CIF,DPU,FOB
- Products Shipped From Busan,Incheon
- Payment
-
140+ Global Payments, trusted and secure payment provided by PayVerse.
Learn More
- Quantity
- MOQ : 1 Sets
Product Summary
- Possible to check the conditions of Chiller through LCD Screens
- Stable cool ability than A series
- It can produce maximum effects in a good environment, thanks to less noisy
Check abnormal condition of machine through a LCD screen.
- It is possible to control from -15 degree to +80 degree (option)
- After blackout, it comes back automatically
- Option for cold and hot water
- Precise temperature maintenance within the range of ±1℃(option)
- Easily Movable with attached wheels
- during winter, extra use as 40% Ethylene-glycol
- It is strong for problem and drives safety
SAFETY FUNCTION
- Alarm when water level is low
- Alarm when the pressure is too high or low
- Sense gas leaking
- Protecting for Over-Current.
- Built-in circuit for inversion prevention and electricity detection
- Preventing excessive cold water and overheating T/C
- Alarm when the temperature is high or low
- Alarm flow sensor; Sense of water flow(
- Freeze protection function.
Detailed Description
Purpose of use
Machines for chemical reaction / Laser Machinery / semi-conductor Machinery / Molding Machinery /
Processing Machinery/ Food manufacturer machine / Medical Instruments / Printing Machinery
Standard Specification
|
|
DH-2W |
DH-3W |
DH-5W |
DH-7.5W |
DH-10W |
DH-15W |
DH-20W |
DH-30W |
DH-40W |
DH-50W |
|
Dimensions (LxWxH)
|
605x 780x 1,075 |
605x 780x 1,075 |
665x 850x 1,275 |
760X 1,310X 1,350 |
805X 1,500X 1,450 |
900X 1,765X 1,690 |
950X 1,995X 1,875 |
1,000X 2,000X 1,300 |
1,000X 3,000X 1,500 |
1,100X 3,000X 1,600 |
|
Weight (kg) |
110 |
120 |
250 |
290 |
430 |
530 |
680 |
830 |
930 |
1230 |
|
Compressor OutPut (kW) |
1.5 |
2.2 |
3.75 |
5.5 |
7.5 |
11.25 |
15 |
22.5 |
30 |
37.5 |
|
Cooling Capacitgy (Kcal/hr) |
5,600 |
8,400 |
15,400 |
23,100 |
30,800 |
46,200 |
61,600 |
92,400 |
123,2000 |
154,000 |
|
Circulation Pump (kW) |
0.75 |
0.75 |
0.75 |
0.75 |
1.5 |
1.5 |
2.25 |
2.25 |
3.75 |
5.5 |
|
Flow Volume (l/min) |
50 |
50 |
50 |
50 |
180 |
180 |
250 |
250 |
350 |
450 |
|
Condensation water (l/min) |
50 |
50 |
50 |
80 |
100 |
150 |
200 |
250 |
300 |
350 |
|
Water Tank Capacity (L) |
40 |
50 |
90 |
110 |
150 |
220 |
280 |
380 |
550 |
700 |
|
Power Consumption (kW/h) |
1.85 |
3.3 |
4.6 |
6.5 |
8.9 |
13.5 |
17 |
25 |
34 |
43 |
|
Power(V) |
AC 1PH 220V 50/60Hz AC 3PH 220/380/440 50/60Hz |
AC 3PH 220/380/440 50/60Hz |
||||||||
