AJCE Hydraulic Breaker Side Type AS 580F
- Certification
-
- Award
-
- Shipping
-
- Type of Freight AT,MT
- Modes of Transport CFR,CIF,EXW,FOB
- Products Shipped From Busan
- Payment
-
140+ Global Payments, trusted and secure payment provided by PayVerse.
Learn More
- Quantity
- MOQ : 2 Units
Detailed Description

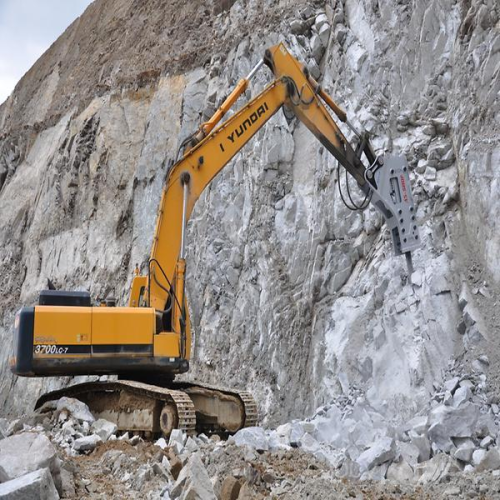

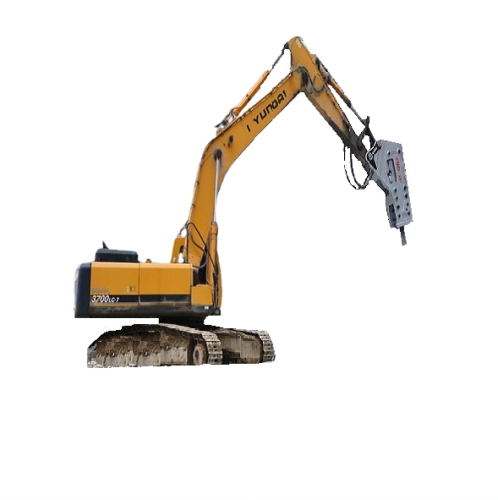

* AS-580F is side type hammer for 50 ton excavators such as PC-600, CAT-350, SK-500 etc.
* Auto-greasing channel and underwater channel are already built in.
* Standard accessories per unit are chisel (2pcs), hydarulic hose (2pcs), tool box, seal kit, N2 gas charging kit with cylinder, working suit, and brochure (Eng).
* Specification
|
Suitable Excavator |
ton |
45~60 |
|
|
lb |
99207~132277 |
||
|
Operating |
Top Type |
kg |
4300 |
|
lb |
9479 |
||
|
Box Type |
kg |
4200 |
|
|
Weight |
lb |
9259 |
|
|
Side Type |
kg |
4100 |
|
|
lb |
9038 |
||
|
Required Oil Flow |
l/min |
210~290 |
|
|
gal/min |
55.4~76.6 |
||
|
Setting Pressure |
bar |
210 |
|
|
psi |
2987 |
||
|
Operating Pressure |
bar |
160~180 |
|
|
psi |
2276~2560 |
||
|
Impact Energy |
joule |
14000 |
|
|
ft.lbs |
10324 |
||
|
kg.m |
1429 |
||
|
Impact Rate |
bpm |
250~350 |
|
|
Hose Diameter |
inch |
1½ |
|
|
Noise Level |
dB |
126 |
|
|
Tool Diameter |
mm |
185 |
|
|
inch |
7.2 |
||
