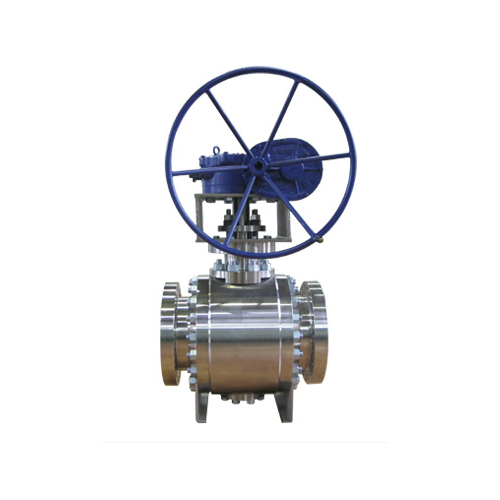

[Product Description]

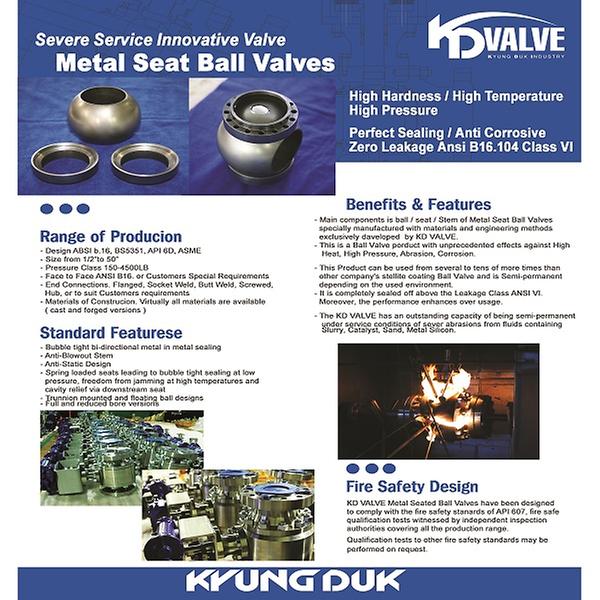

*Range of Producion

- Design ABSI b.16, BS5351, API 6D, ASME

- Size from 1/2”to 50”

- Pressure Class 150-4500LB

- Face to Face ANSI B16. or Customers Special Requirements

- End Connections. Flanged, Socket Weld, Butt Weld, Screwed,Hub, or to suit Customers requirements

- Materials of Construcion. Virtually all materials are available ( cast and forged versions )

*Standard Featurese

-Bubble tight bi-directional metal in metal sealing

- Anti-Blowout Stem

- Anti-Static Design

- Spring loaded seats leading to bubble tight sealing at low pressure, freedom from jamming at high temperatures and cavity relief via downstream seat

- Trunnion mounted and floating ball designs

- Full and reduced bore versions

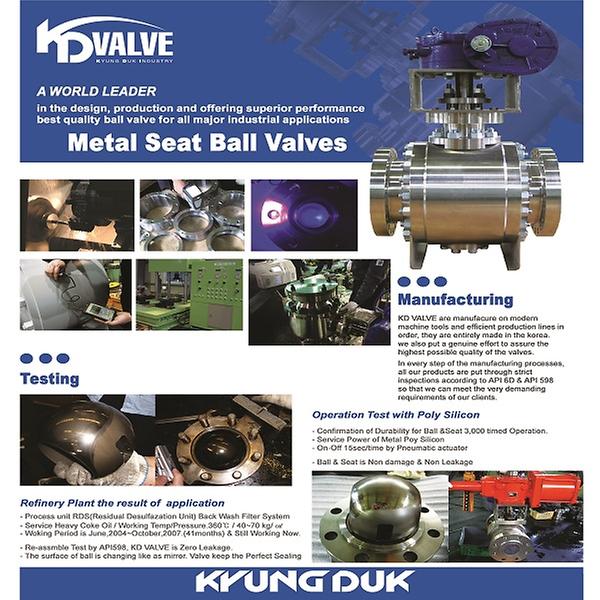

*Manufacturing

KD VALVE are manufacure on modern machine tools and efficient production lines in order, they are entirely made in the korea.

we also put a genuine effort to assure the highest possible quality of the valves. In every step of the manufacturing processes, all our products are put through strict inspections according to API 6D & API 598 so that we can meet the very demanding requirements of our clients.

[Product Benefits & Features]

-Main components is ball / seat / Stem of Metal Seat Ball Valves specially manufactured with materials and engineering methods exclusively daveloped by KD VALVE.

- This is a Ball Valve porduct with unprecedented effects against Extreme temperatures, High Pressure, Abrasion, Corrosion.

- This Product can be used from several to tens of more times than other company's stellite coating Ball Valve and is Semi-permanent depending on the used environment.

- It is completely sealed off above the Leakage Class ANSI VI. Moreover, the performance enhances over usage.

- The KD VALVE has an outstanding capacity of being semi-permanent

under service conditions of sever abrasions from fluids containing Slurry, Catalyst, Sand, Metal Silicon.
