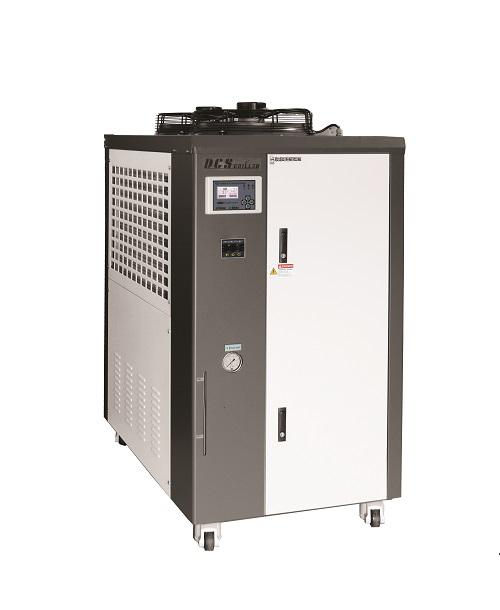

Air Cooled Water Chiller
Air-cooled type water chiller of productivity improvement & high-quality with excellent reproducibility
by quick reacting about temperature changes.
It is designed to reproduce the performance of maximum efficiency for cooling & high-temperature.
- Certification
-
- Award
-
- Shipping
-
- Lead Time10 ~ 30days
- Type of Freight Proceed after consultation
- Modes of Transport CIF,EXW,FOB
- Products Shipped From Busan,Incheon
- Payment
-
140+ Global Payments, trusted and secure payment provided by PayVerse.
Learn More
- Quantity
- MOQ : 1 Sets
Product Summary
- Possible to check the conditions of Chiller through LCD Screens
- Wide temperature Control option (-15 degree~+80 degree)
- After blackout, it comes back automatically
- Option for cold and hot water
- Easily Movable with attached wheels

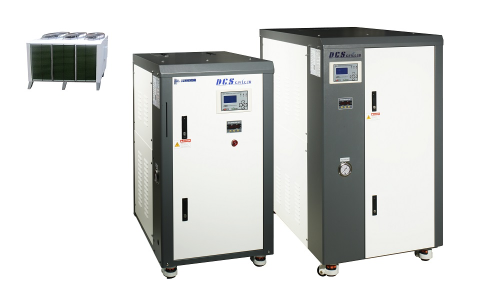

- Minimize noisy by separating condenser and indoor system, it prevents degradation of cooling ability caused by increasing the room temperature (AM series)
- Preventing degradation of cooling ability when indoor temperature is above 27 degrees,
the environment can be comfortable by separating and installing Cooler outside (AM series)
- For the place of no Ventilation, Less production, and higher heat, AM series is suitable.
SAFETY FUNCTION
- Alarm when water level is low (Stop working automatically)
- Alarm when the pressure is too high or low (Stop working automatically)
- Sense gas leaking
- Protecting for Over-Current.
- Built-in circuit for inversion prevention and electricity detection
- Preventing excessive cold water and overheating T/C (Stop working automatically)
- Alarm when the temperature is high or low (Stop working automatically)
- Alarm flow sensor; Sense of water flow(Stop working automate call)
- Freeze protection function. (Pump circulating automatically) AM series is suitable.
Detailed Description
Standard Specification
Dimensions (LxWxH)
Dimensions (LxWxH)
|
Model / Spec |
DH-2A |
DH-3A |
DH-5A |
DH-7.5A |
DH-10A |
DH-15A |
DH-20A |
DH-30A |
DH-40A |
DH-50A |
|
Dimensions (LxWxH) |
605x |
665x |
760x |
760x |
805x |
605x |
950x |
1,000x |
1,100x |
1,100x |
|
780x |
850x |
1,310x |
1,310x |
1,500x |
780x |
1,995x |
2,930x |
3,230x |
3,790x |
|
|
1,195 |
1,395 |
1,470 |
1,470 |
1,570 |
1,195 |
1,995 |
1,950 |
2,100 |
2,140 |
|
|
Weight (kg) |
110 |
150 |
230 |
260 |
400 |
500 |
650 |
800 |
900 |
1,200 |
|
Refrigerator Capacity(HP) |
2 |
3 |
5 |
8 |
10 |
15 |
20 |
30 |
40 |
50 |
|
Compressor OutPut (kW) |
1.5 |
2.25 |
3.75 |
5.5 |
7.5 |
11.25 |
15 |
22.5 |
30 |
37.5 |
|
Cooling Capacity (Kcal/hr) |
5,600 |
8,400 |
14,000 |
21,000 |
28,000 |
42,000 |
56,000 |
84,000 |
112,000 |
140,000 |
|
Circulation Pump (kW) |
0.75 |
0.75 |
0.75 |
0.75 |
1.85 |
1.85 |
1.85 |
3.0 |
3.0 |
3.0 |
|
Flow Volume (liter/min) |
50 |
50 |
50 |
50 |
180 |
180 |
250 |
250 |
350 |
450 |
|
Water Tank Capacity (liter) |
40 |
50 |
90.0 |
110 |
150 |
220 |
280 |
380 |
550 |
700 |
|
Power Consumption (kW/h) |
1.85 |
3.3 |
4.9 |
6.8 |
9.5 |
15 |
18 |
27 |
37 |
48 |
|
Power(v) |
AC 1Ph 220V 50/60Hz/ AC3Ph220/380/440 50/60Hz |
AC 3Ph 220/380/440V 50/60Hz |
||||||||
|
All the details can be changed without any notice with the products developed. |
||||||||||
