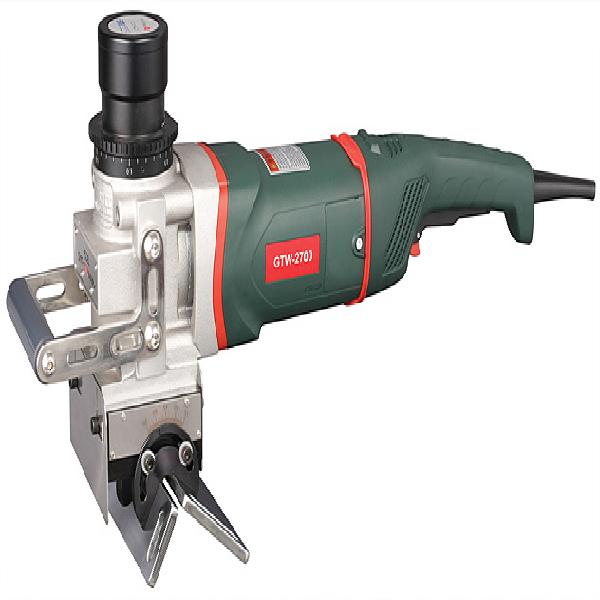

One Touch Beveling Machine for Weld Preparation Pipes and Plate
Request For Quotation
Beveling machine for weld preparation, Both working pipes and plates, Quick and easy one-touch depth control, Less load and and efficiency working with Face mill cutter
- Award
-
- Shipping
-
- Modes of Transport EXW,FCA
- Products Shipped From Daejeon
- Payment
-
140+ Global Payments, trusted and secure payment provided by PayVerse.
Learn More
- Quantity
- MOQ : 1 Cases
Detailed Description
| Height Adjustment | One-touch spline controller | ||
| Adjustment Increment | min. 0.1mm step | ||

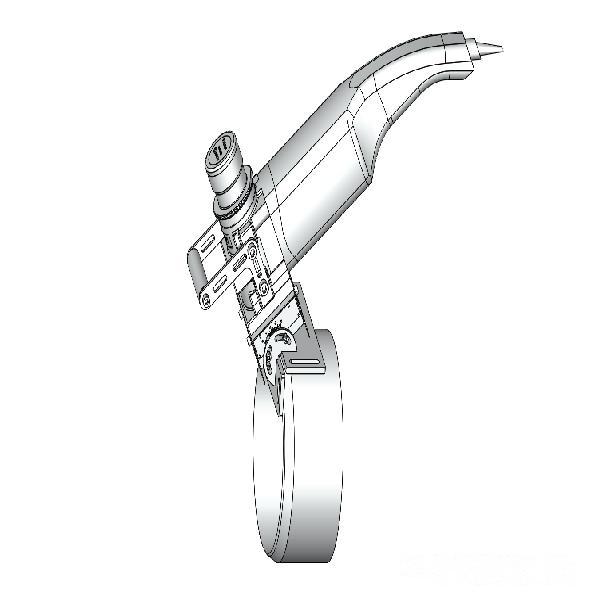

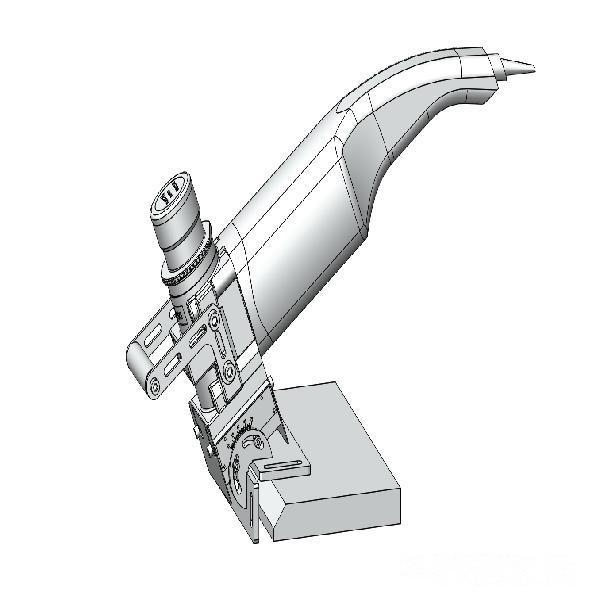

| Usages | Pipe & Plate's beveling for weld preparation | ||
| Maximum bevel range per angle | 0° ~ 90° | ||
| Thickness, mm (inch) | Width, mm (inch) | ||
| 0 ° | 35 mm (1.377) | 14 mm (0.551) | |
| 15 ° | 33 mm (1.299) | 34 mm (1.339) | |
| 30 ° | 28 mm (1.102) | 32 mm (1.260) | |
| 45 ° | 19 mm (0.748) | 27 mm (1.063) | |
| 75 ° | 3.6 mm (0.142) | 14 mm (0.551) | |
| 90 ° | 14 mm (0.551) | 15 mm (0.591) | |
| Pipe Size | min. 300A (318.5 mm or 12") | ||
| Weight | 11.5kgs | ||
| Power | 2600W | ||
| Inserts | No. of inserts: 4 inserts | ||
| Parts no.: CFWB140350 | |||
| Applications | Steel (carbon & stainless steel, etc.), Non-ferrous metal, other materials | ||
