[HIFLUX] High Pressure Safety Head, Rupture Disc
- Certification
-
- Award
-
- Shipping
-
- Products Shipped From Incheon
- Payment
-
140+ Global Payments, trusted and secure payment provided by PayVerse.
Learn More
- Quantity
- MOQ : 1 Boxes
Detailed Description

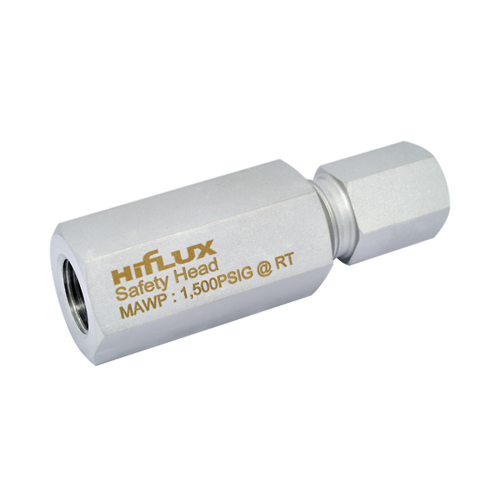

[HIFLUX] Safety Head & Rupture Disc
This safety head is an assembly housing for pressure burst disc.
It is used to prevent damage and explosion and to protect the equipment by releasing the pressure quickly, in case of overpressure. It requires the burst disc which is called Rupture Disc that bursts in overpressure condition.
* Features
- To protect from equipment damage.
- No leaking before the rupture disc burst case.
- Stainless steel 316 material. (Except 1,000psig : Nickel)
- 3/8" NPT Outlet design to connect vent lines.
- Include fitting accessories for suitable pressure and sizes for tubing.
- manufactured with a tolerance of plus 6% and minus 3% of specified burst pressure.
- Rupture disc is not included in this item required to choose proper rupture disc separately. (Rupture Disc Spec.)
* Pressure Release Time
1. In case the pressure is increasing rapidly.
2. Disallows any pressure leakage.
3. When the system requires release in a short amount of time.
* Consideration of the selection
1. Set pressure, Temp and medium.
2. Operation condition (Static / Back Pressure, pulsating, Etc,.).
3. Recommend regularly under the corrosion, metal fatigue, repeating environment.
* [HIFLUX] High pressure safety head series
 |
 |
 |
| 15,000psi | 20,000psi | 60,000psi |
* [HIFLUX] Rupture disc spec.
| Standard Burst Pressure (in psi at 72 °F) | |||||
| 1,000 | 3,000 | 5,000 | 7,000 | 9,000 | 11,000 |
| 1,500 | 3,500 | 5,500 | 7,500 | 9,500 | 11,500 |
| 2,000 | 4,000 | 6,000 | 8,000 | 10,000 | |
| 2,500 | 4,500 | 6,500 | 8,500 | 10,500 | |
| Standard Burst Pressure (in psi at 72 °F) | ||||
| 12,500 | 15,000 | 17,500 | 18,000 | 20,000 |
| Standard Burst Pressure (in psi at 72 °F) | |||
| 22,500 | 30,000 | 40,000 | 55,000 |
| 25,000 | 35,000 | 45,000 | 60,000 |
| 27,000 | 37,500 | 50,000 | 65,000 |
* Other product
* Ordering option
- As our products are divided into pressures of 5,500~150,000psi, body type and port size, you can use them according to the specifications which you want to use.
- Our products generally are produced with STS materials, but they can be manufactured with other materials on demand so that various fluids and gases can be used.
- Please inquire with us about special materials apart from the above-mentioned materials, such as STS316, HC-276, INC600, INC700, Ti and Ni.
