This lens has wide angle and high resolution. And it is used widely for home security and car security devices.

 * 3Mega Pixel / IR Corrected

* Any aspect ratio can be used without losing resolution

* Clear image without color smear by minimizing chromatic aberration

* TDN mechanism available

* Wide-band coating to improve performance with NIR

Specification

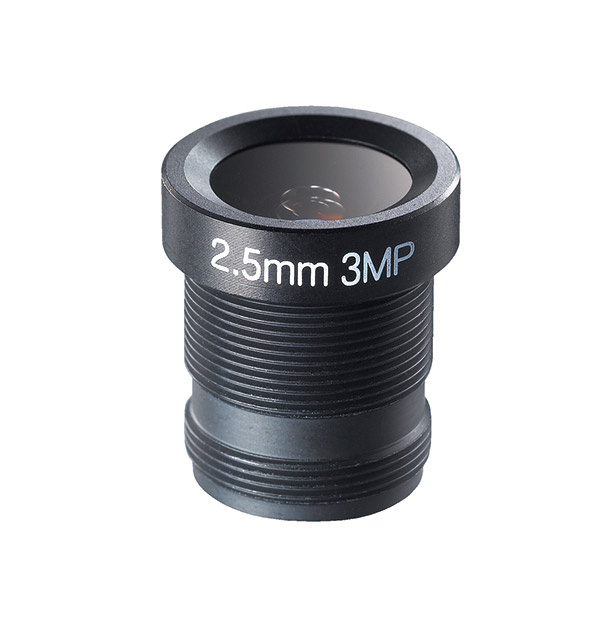

l  Focal Length : 2.5mm  ±5%

l  Back Focal Length : 5.4mm ±5%

l  TV Distortion : 1/2.7” – 31.6%,  1/3” – 20.9%,  1/4” – 10.4%

l  Aperture Ratio : F2.0

l  Resolution : 3 Mega pixel

l  Iris : Fixed

l  Angle of View : (1/2.7” CMOS)  (D)160.2° X (H)136.5° X (V)73.2°

              (1/3” CCD) (D)143.1° X (H)111.1° X (V)81.7°

              (1/4” CCD) (D)103.6° X (H)87.7° X (V)60.7°

We have exported our lenses to Taiwan, China, USA, UK, Russia etc. over 26 years. And all of our lenses are widely used to many Airports, Harbors, Banks, Governments organizations, Car automotive systems, Schools, Commercial buildings, Military defense systems and so on. All of lens proved the quality in the market and lots of customers love to use our lenses. Our lens line-up covers Varifocal CS Lens, Varifocal Board lens, Fixed Board lens, Pinhole lens, Fisheye lens including Automotive lens. You can see all of them on our website.    www.dwopt.com
