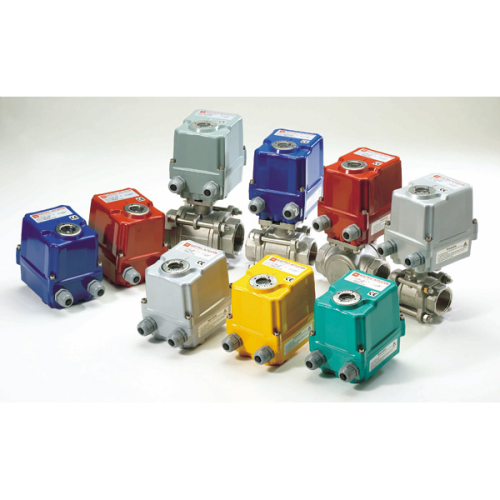

● HQ-004

- Compact and light weight

- Multi-voltage : (AC85~265V/1PH, 24V DC)

- Weather proof (IP67)

- Push button and Manual lever

- 4 limit switches & Captive cover bolt

- Mechanical position indicator & LED lamp indicators (Open/Close)

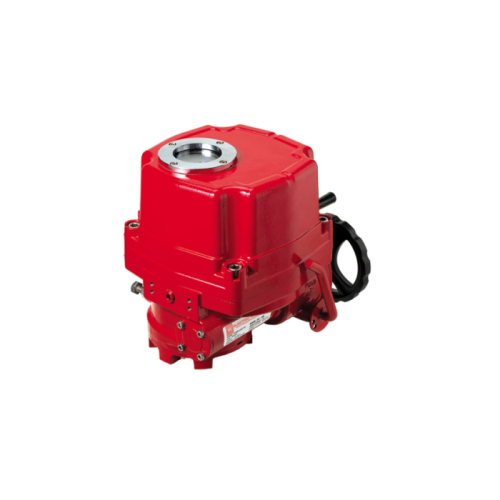

● HQ-006

- Compact and light weight with high grade aluminum alloy housing

- High resistance for corrosion due to hard anodizing

- Polyester powder coating

- Reversible motor with high torque and low current design

- Tight sealing with O-ring system giving weatherproof (IP67)

- Manual handwheel

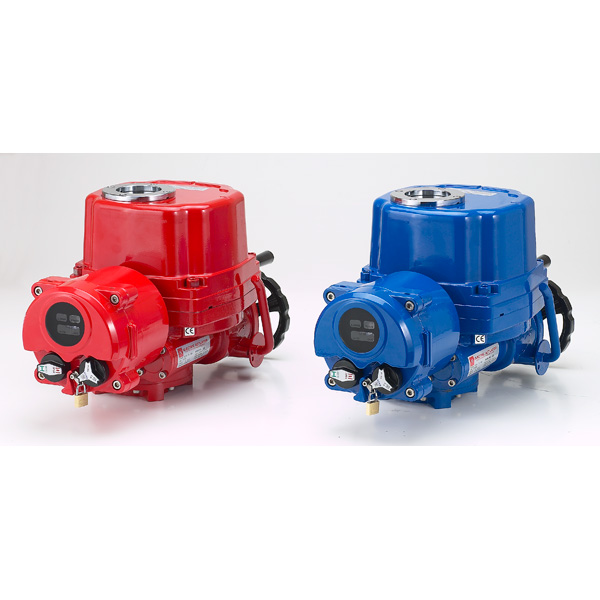

● HQ-008~300, HQ-400

- Quarter-turn actuator for 80Nm~3000Nm, 4000Nm

- Enclosure : weather proof - IP67, IP68 / explosion proof - Ex d IIB T4(ATEX)

- Motor Power : DC 24V, AC 110/220V, 1PH, 50/60Hz, ±10%, AC 220/380/440/480V,3PH, 50/60Hz, ±10%

- 4x limit switches (standard) - except HQ-008/010

- 2x torque switches (standard) - except HQ-008/010

- Reversible fan cooling motor

- ON/OFF or Modulating

- ISO 5211 mounting base
